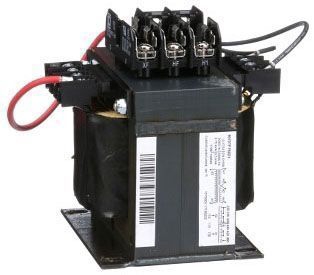

SQD 9070TF750D5

Industrial control transformer, Type TF, 1 phase, 750VA, 600V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type TF, 1 phase, 750VA, 600V primary, 120V secondary, 50/60Hz

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type TF, 1 phase, 750VA, 600V primary, 120V secondary, 50/60Hz

UPC:  78590176351

Part Number: 9070TF750D5

UNSPSC: 39121002

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070TF750D5
Additional Information RoHS/REACH Compliant; Type TF; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name Square D
Catalog Number 9070TF750D5
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 5.66 in
Directory CIS
Enclosure OPEN BOX
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Fuse Type 0.41 x 1.50 in CC top
Height 5.73 in
Image Location * Image
Industry ELX
Insulation 180 C
Insulation Class 180
InvoiceDescription Industrial control transformer, Type TF, 1 phase, 750VA, 600V primary, 120V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 76351
KVA Rating 750 VA
Long Description INDUSTRIAL CONTROL TRANSFORMER, 5.25 INCH WIDTH X 5.66 INCH DEPTH X 5.73 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 750 VOLT AMP POWER RATING; 600 VOLT AC PRIMARY VOLTAGE
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL
Noun *
Phase 1-PHASE
Power Rating 750 VA;750 Volt Amp
Primary Voltage 550 V;575 V;600 V;600 Volt AC
Product Description Industrial control transformer, Type TF, 1 phase, 750VA, 600V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 750.0 V.A
Secondary Voltage 120 Volt AC
Size 5.25 Inch Width x 5.66 Inch Depth x 5.73 Inch Height
Temperature Rating 115 DEGREES C
Temperature Rise 115 Deg C
UNSPSC 39121002
UPC 78590176351
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 5.25 in
Winding COPPER

Resources

CatalogNumber 9070TF750D5
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
