SQD 9080FB2211R

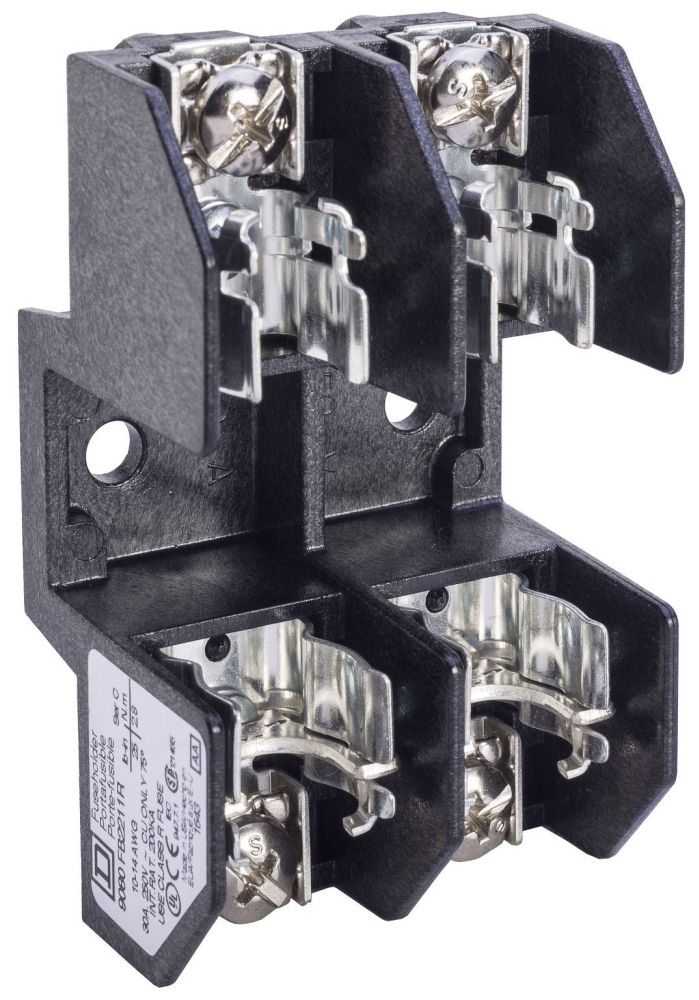

Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 2 pole

Page Loading...
SQUARE-D/SCHNEIDER
Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 2 pole

Mouse over image to zoom, click to enlarge

Description:
Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 2 pole

UPC:  78590109777

Part Number: 9080FB2211R

UNSPSC: 39121624

Status:  UNKNOWN

Your Price:  $28.12 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080FB2211R
Additional Information FUSE SIZE 9/16 INCH DIA X 2 INCH L; TEMPERATURE RATING -40 TO 257 DEG F; CLIP MATERIAL TIN PLATED COPPER ALLOY; SIZE 1.91 INCH W X 1.38 INCH D X 3 INCH H
Application 0.5625 x 2 in;R
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number 9080FB2211R
Clip Type REINFORCED
Commerce Sector Construction Materials
Commodity Code 64400
Commodity Description Terminal Blocks & Accessories
Connection screw terminals 25 lbf.in AWG 14...AWG 10 copper;Pressure wire clamp;AWG 14...AWG 10 copper or aluminium
CountryOfOrigin US
DDCATEGORY 297
Depth 1.38 in
Directory CIS
Families 297
Family Description Terminal Blocks & Accessories
Fuse Current Rating 30 AMPERE
Fuse Type CLASS R
Fuse Voltage Rating 250 V
Height 3 in
Image Location * Image
Industry ELX
InvoiceDescription Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 2 pole;TERMINAL BLOCK
Item Number 09777
Long Description TERMINAL BLOCK FUSE HOLDER, STANDARD TYPE; HIGH IMPACT THERMOPLASTIC MATERIAL; 14 TO 10 AWG (COPPER) WIRE SIZE; UL, CSA, CE APPROVAL; 2 POLE(S); PRESSURE WIRE TERMINAL TYPE; CLASS R FUSE TYPE; 30 AMPERE FUSE CURRENT RATING; 250 V FUSE VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic: block;HIGH IMPACT THERMOPLASTIC
Model 9080
Mounting Surface mount
Noun *
Number Of Poles 2
Product Description Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 2 pole
Product Keywords WEBREADY
Product Name Fuse holder
ProductLine SQD
Standard CE;UL listed file E40747 CCN IZLT;CSA file 70360 class 6225 01
Terminal Type PRESSURE WIRE
Type Fuse holder;STANDARD
UNSPSC 39121624
UPC 78590109777
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 1.91 in
Wire Size 14 TO 10 AWG (COPPER)

Resources

CatalogNumber 9080FB2211R
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
