SQD 9080GMB6

Terminal block, Linergy, box lug connector, black colored block, 30A, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Terminal block, Linergy, box lug connector, black colored block, 30A, 600V

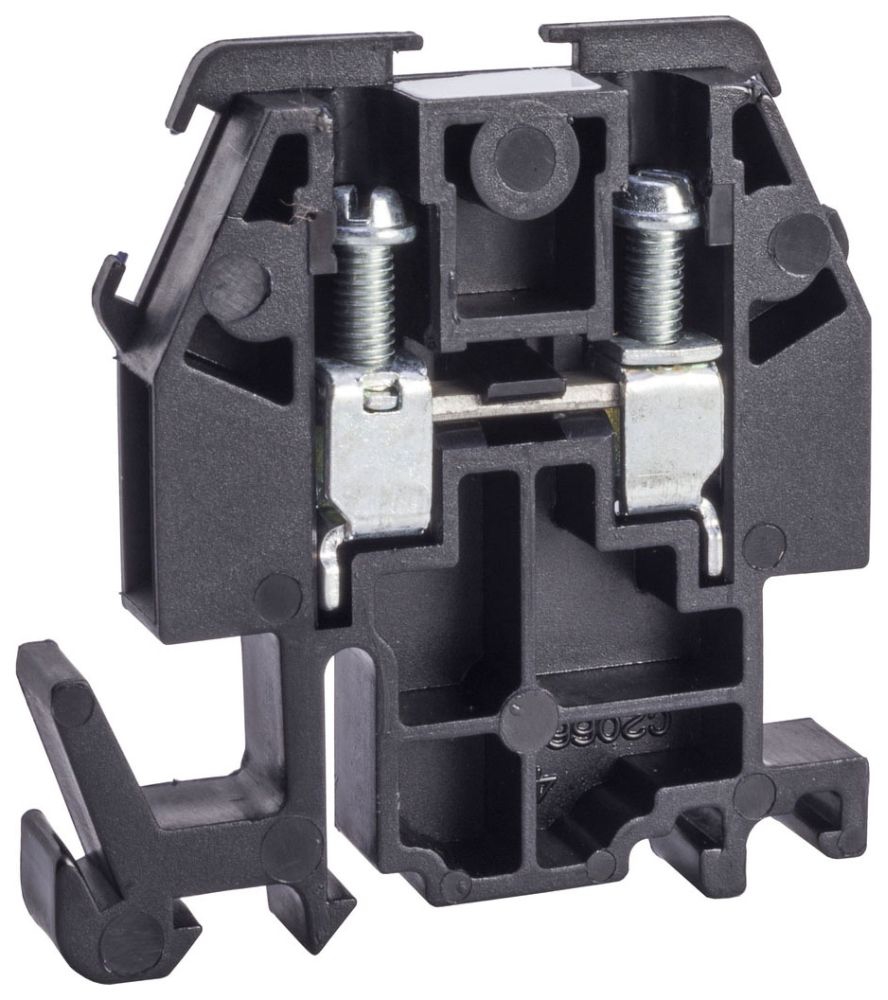

Mouse over image to zoom, click to enlarge

Description:
Terminal block, Linergy, box lug connector, black colored block, 30A, 600V

UPC:  78590174327

Part Number: 9080GMB6

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $2.53 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080GMB6
Approval UL, CSA, CE
Base Price 0.0000
Block Width 0.235 Inch
Catalog Number 9080GMB6
Color Black
Commerce Sector Construction Materials
Commodity Code 64400
Commodity Description Terminal Blocks & Accessories
Configuration Single Tier 1-Circuit
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 30 Ampere (UL/CSA)
DDCATEGORY 297
Directory CIS
Families 297
Family Description Terminal Blocks & Accessories
Height 1.82 in
Housing Material Nylon
Image Location * Image
Industry ELX
InvoiceDescription Terminal block, Linergy, box lug connector, black colored block, 30A, 600V;TERMINAL BLOCK 600V
Item Number 74327
Long Description TERMINAL BLOCK, STANDARD TYPE; 1.82 INCH W X 1.72 INCH H SIZE; BLACK COLOR; 0.235 INCH BLOCK WIDTH; 22 TO 10 AWG SOLID/STRANDED (COPPER) WIRE SIZE; SINGLE TIER 1-CIRCUIT CONFIGURATION; UL, CSA, CE APPROVAL; 600 V VOLTAGE RATING; 35 MM DIN RAIL MOUNTING
MSDS Form Number *
Model 9080
Mounting 35 MM DIN Rail
Noun *
Product Description Terminal block, Linergy, box lug connector, black colored block, 30A, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Size 1.82 Inch W x 1.72 Inch H
Temperature Rating -40 to 257 Deg F
Terminal Type Box Lug
Type Standard
UNSPSC 39121410
UPC 78590174327
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V
Width 1.72 in
Wire Size 22 to 10 AWG Solid/Stranded (Copper)
