SQD 9080GMR6

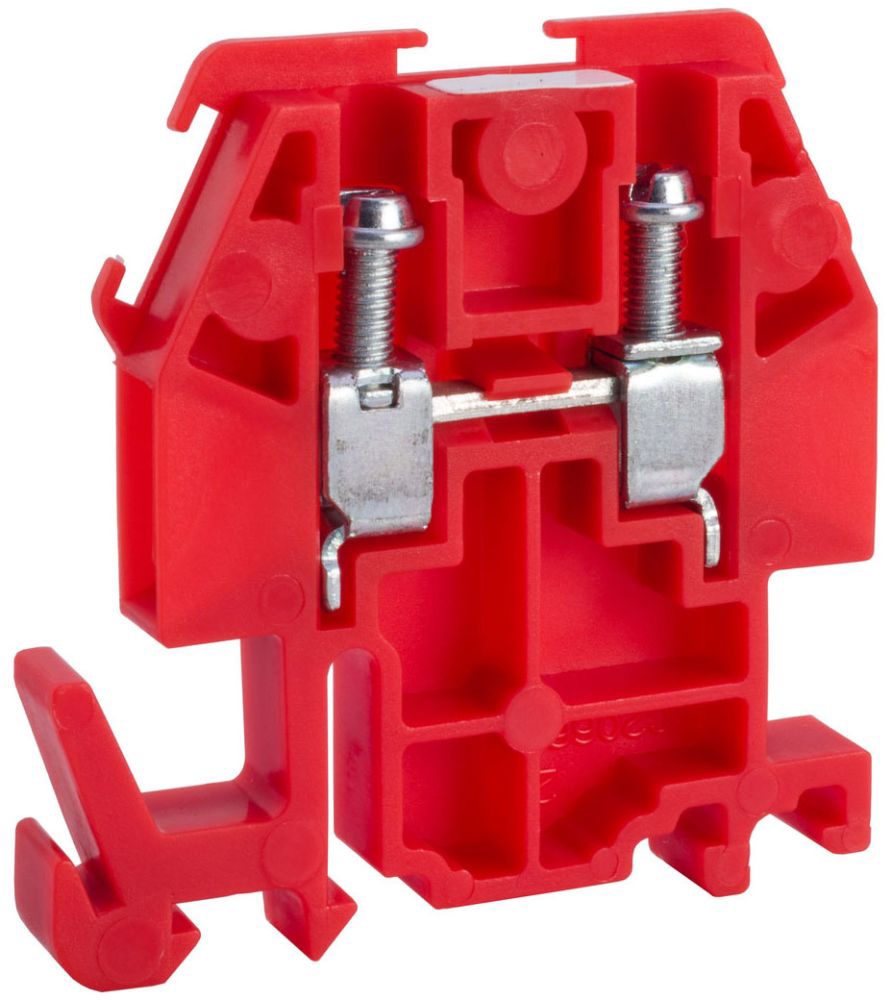

Terminal block, Linergy, box lug connector, red colored block, 30A, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Terminal block, Linergy, box lug connector, red colored block, 30A, 600V

Mouse over image to zoom, click to enlarge

Description:
Terminal block, Linergy, box lug connector, red colored block, 30A, 600V

UPC:  78590174322

Part Number: 9080GMR6

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $2.53 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080GMR6
Ambient Air Temp For Op -40257F (-40125C)
Ambient Air Temperature For Operation -40.0-257.0 F
Amperage Rating 30-30 A UL-30-30 A CSA
Application 9080G,GM6B
Approval UL, CSA, CE
Base Price 0.0000
Block Width 0.235 Inch
Brand Name 9080G;Linergy
Catalog Number 9080GMR6
Color Red
Commerce Sector Construction Materials
Commodity Code 64400
Commodity Description Terminal Blocks & Accessories
Configuration Single Tier 1-Circuit
Connection Lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper);Zinc plated steel box lugs
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 30A UL;30A CSA;30 Ampere (UL/CSA)
DDCATEGORY 297
Density 51 per foot
Depth 0.235 in
Directory CIS
Electrical Connection Zinc plated steel box lugs
Electrical Connrection Tightening Torque Lug zinc plated steel 78lbf.in (0.790.90N.m) : AWG 22...AWG 10 copper)
Families 297
Family Description Terminal Blocks & Accessories
Height 1.82 in
Housing Material Nylon
Image Location * Image
Industry ELX
InvoiceDescription Terminal block, Linergy, box lug connector, red colored block, 30A, 600 V;TERMINAL BLOCK 600V
Item Number 74322
Line Rated Current 30-30 A UL;30-30 A CSA
Localisation On Device Standard
Long Description TERMINAL BLOCK, STANDARD TYPE; 1.82 INCH W X 1.72 INCH H SIZE; RED COLOR; 0.235 INCH BLOCK WIDTH; 22 TO 10 AWG SOLID/STRANDED (COPPER) WIRE SIZE; SINGLE TIER 1-CIRCUIT CONFIGURATION; UL, CSA, CE APPROVAL; 600 V VOLTAGE RATING; 35 MM DIN RAIL MOUNTING
MSDS Form Number *
Material Nylon block;Tin plated brass busbar
Model 9080
Mounting 35 mm DIN rail;9080GH track;35 MM DIN Rail
Noun *
Number Of Terminal Blocks 51 per foot
Product Description Terminal block, Linergy, box lug connector, red colored block, 30A, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Protection Type Fingersafe DIN 57470
Quantity Set of 50 NULL
Quantity Per Set Set of 50
Rated Operational Voltage 600 V AC/DC
Size 0.235 in;1.82 Inch W x 1.72 Inch H
Special Features Fingersafe DIN 57470
Standard UL recognized E60616 CCN XCFR2;CSA file 62144 class 6228 01;CE
Temperature Rating -40 to 257 Deg F
Terminal Type Box Lug
Type Terminal block;GM6B;Standard
UNSPSC 39121410
UPC 78590174322
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC//VDC;600 V
Width 1.72 in
Wire Size AWG 22...AWG 10 copper;22 to 10 AWG Solid/Stranded (Copper)
