SQD 9080GRB6

Terminal block, Linergy, box lug connector, black colored block, 60A, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Terminal block, Linergy, box lug connector, black colored block, 60A, 600V

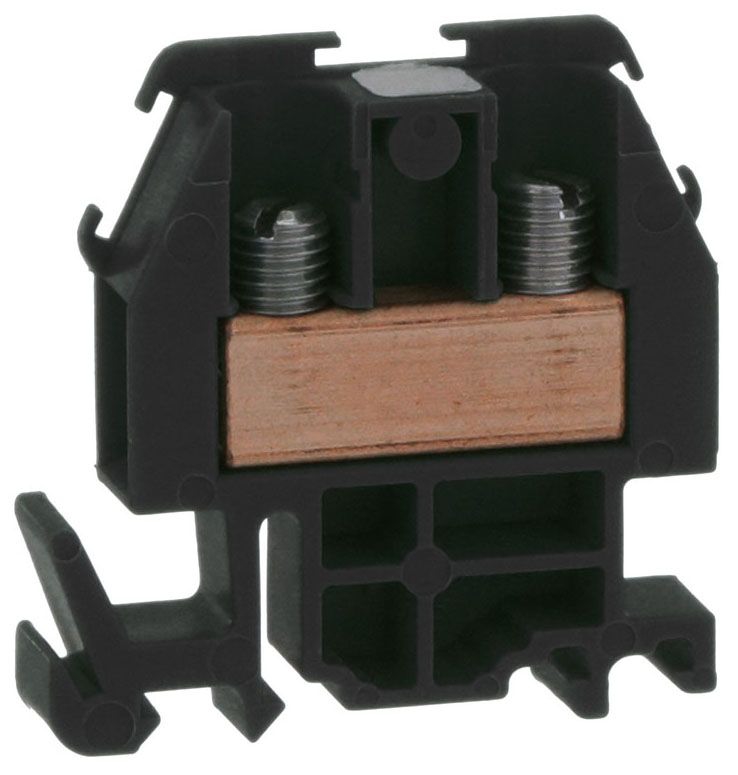

Mouse over image to zoom, click to enlarge

Description:
Terminal block, Linergy, box lug connector, black colored block, 60A, 600V

UPC:  78590191746

Part Number: 9080GRB6

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $3.37 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080GRB6
Additional Information RoHS Compliant; Box Lug Material Copper; Flammability Rating UL 64-V2
Ambient Air Temp For Op -40257F (-40125C)
Ambient Air Temperature For Operation -40.0-257.0 F
Amperage Rating 60-60 A UL-60-60 A CSA
Application 9080G,GM6B
Approval UL, CSA, CE
Base Price 0.0000
Brand Name 9080G;Linergy
Catalog Number 9080GRB6
Color Black
Commerce Sector Construction Materials
Commodity Code 64400
Commodity Description Terminal Blocks & Accessories
Connection Lug copper 18-20 lbf.in : AWG 22...AWG 8 copper);Copper box lugs
Construction Standard NEMA
CountryOfOrigin MX
Current Rating 60A UL;60A CSA;60 Amp (UL/CSA)
DDCATEGORY 297
Density 34 per foot
Depth 0.35 in
Directory CIS
Electrical Connection Copper box lugs
Electrical Connrection Tightening Torque Lug copper 1820lbf.in (2.032.26N.m) : AWG 22...AWG 8 copper)
Families 297
Family Description Terminal Blocks & Accessories
Height 1.82 in
Housing Material Nylon
Image Location * Image
Industry ELX
InvoiceDescription Terminal block, Linergy, box lug connector, black colored block, 60A, 600 V;TERMINAL BLOCK 600V
Item Number 91746
Line Rated Current 60-60 A UL;60-60 A CSA
Localisation On Device Standard
Long Description TERMINAL BLOCK, STANDARD TYPE; 1.72 INCH WIDTH X 0.35 INCH DEPTH X 1.82 INCH HEIGHT SIZE; BLACK COLOR; 22 TO 8 AWG (COPPER) WIRE SIZE; UL, CSA, CE APPROVAL; 600 VOLT AC/DC (UL/CSA) VOLTAGE RATING; 35 MILLIMETER DIN RAIL MOUNTING
MSDS Form Number *
Material Nylon block
Mounting 9080GH track;35 mm DIN rail;35 Millimeter DIN Rail
Noun *
Number Of Terminal Blocks 34 per foot
Product Description Terminal block, Linergy, box lug connector, black colored block, 60A, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Protection Type Fingersafe DIN 57470
Quantity Set of 50
Quantity Per Set Set of 50
Rated Operational Voltage 600 V AC/DC
Size 0.35 in;1.72 Inch Width x 0.35 Inch Depth x 1.82 Inch Height
Special Features Fingersafe DIN 57470
Standard CSA file 62144 class 6228 01;UL recognized E60616 CCN XCFR2;CE
Temperature Rating -40 to 257 Deg F
Terminal Type Box Lug
Type Terminal block;GM6B;Standard
UNSPSC 39121410
UPC 78590191746
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC//VDC;600 Volt AC/DC (UL/CSA)
Width 1.72 in
Wire Size AWG 22...AWG 8 copper;22 to 8 AWG (Copper)

Resources

CatalogNumber 9080GRB6
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
