SQD 9080LBA161104

Power distribution block, Linergy, 1 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Power distribution block, Linergy, 1 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V

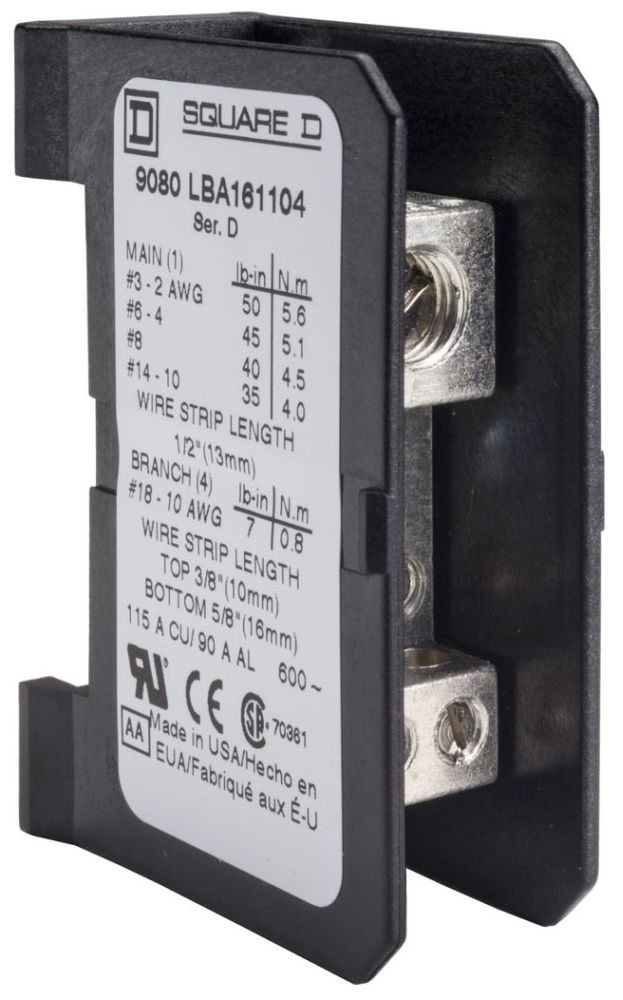

Mouse over image to zoom, click to enlarge

Description:
Power distribution block, Linergy, 1 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V

UPC:  78590109728

Part Number: 9080LBA161104

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $31.88 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080LBA161104
Additional Information RoHS Compliant; Short Circuit Current Rating 65 Kiloamp; Mounting Type Surface Mount; Terminal Type Lug
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number 9080LBA161104
Commerce Sector Construction Materials
Commodity Code 61320
Commodity Description Power Blocks & Distribution Blocks
Conductor Material Aluminum/Copper
Connection line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;line lug 35 lbf.in AWG 14 copper;line lug 40 lbf.in AWG 8 copper or aluminium;line lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;Line lug 50 lbf.in AWG 3...AWG 2 copper or aluminium;load lug 7 lbf.in AWG 18...AWG 10 copper;Tin plated aluminium lugs
Connector Material Tin Plated Aluminum
CountryOfOrigin US
Cover Type 9080LB11 Clear Plastic
Current Rating 90 Amp (Aluminum), 115 Amp (Copper)
DDCATEGORY 586
Directory CIS
Families 586
Family Description Power Blocks & Distribution Blocks
Height 2.29 in
Housing Material High Impact Thermoplastic
Image Location * Image
Industry ELX
InvoiceDescription Power distribution block, Linergy, 1 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V;PWR DISTR BLK
Item Number 09728
Long Description MINIATURE POWER DISTRIBUTION BLOCK, MINIATURE TYPE; 0.85 INCH WIDTH X 1.62 INCH DEPTH X 2.29 INCH HEIGHT SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL, CSA, CE APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 90 AMP (ALUMINUM), 115 AMP (COPPER) CURRENT RATING
MSDS Form Number *
Material Thermoplastic
Model 9080LB
Mounting Surface
Noun *
Number Of Poles 1
Number Of Primary Openings Per Pole 1
Number Of Secondary Openings Per Pole 4
Number Of Terminals 1 line;4 load
Primary Opening Wire Size 14 to 2 AWG
Product Description Power distribution block, Linergy, 1 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Secondary Opening Wire Size 18 to 10 AWG
Size 0.85 Inch Width x 1.62 Inch Depth x 2.29 Inch Height
Temperature Rating -40 to 257 Deg F
Type 9080LB11;Miniature Power Distribution Block;Miniature
UNSPSC 39121410
UPC 78590109728
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 Volt AC/DC
Width 0.85 in

Resources

CatalogNumber 9080LBA161104
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
