| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9080LBA261104 |
| Ambient Air Temp For Op | -40257F (-40125C) |
| Ambient Air Temperature For Operation | -40.0-257.0 F |
| Amperage Rating | 115-115 A COPPER-90-90 A ALUMINIUM |
| Application | 9080LB,9080LB12 |
| Approval | UL |
| Base Price | 0.0000 |
| Block Material | Thermoplastic block |
| Brand Name | 9080LB |
| Catalog Number | 9080LBA261104 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper/Aluminum |
| Connection | Tin plated aluminium lugs;Line lug 50 lbf.in AWG 3...AWG 2 copper or aluminium;line lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;line lug 40 lbf.in AWG 8 copper or aluminium;line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;line lug 35 lbf.in AWG 14 copper;load lug 7 lbf.in AWG 18...AWG 10 copper |
| Connector Material | Tin Plated Aluminum |
| Country Of Origin | USA |
| CountryOfOrigin | US |
| Current Rating | 115A copper;90A aluminium;115 Amp |
| DDCATEGORY | 586 |
| Depth | 1.62 in |
| Directory | CIS |
| Electrical Connection | Tin plated aluminium lugs |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Height | 2.29 in |
| Housing Material | High Impact Thermoplastic |
| Image Location | * Image |
| Industry | ELX |

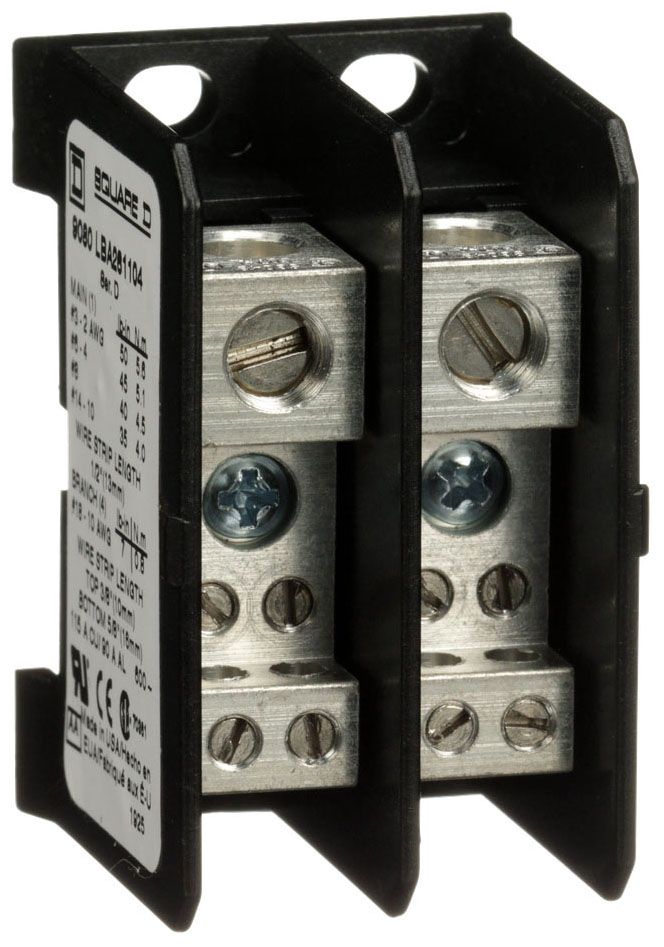

| InvoiceDescription | Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A CU, 90A AL, 600 V;MINIATURE POWER DISTRIBUTION BL |
| Item Number | 15695 |
| Line Rated Current | 115-115 A copper;90-90 A aluminium |
| Long Description | MINIATURE POWER DISTRIBUTION BLOCK, MINIATURE TYPE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL APPROVAL; 600 VOLT AC VOLTAGE RATING; 115 AMP CURRENT RATING; -40 TO 257 DEG F TEMPERATURE RATING; HIGH IMPACT THERMOPLASTIC HOUSING MATERIAL; 2 POLE(S) |
| MSDS Form Number | * |
| Material | Thermoplastic block |
| Model | 9080LB |
| Mounting | Surface mount |
| Noun | * |
| Number Of Cables | Line 1 , AWG 14...AWG 2, copper or aluminium;load 4 , AWG 18...AWG 10, copper or aluminium |
| Number Of Poles | 2 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 4 |
| Number Of Terminals | 1 line;4 load |
| Primary Opening Wire Size | 14 to 2 AWG (Copper/Aluminum) |
| Product Description | Power distribution block, Linergy, 2 pole, 1 line, 4 load, 115A Cu, 90A Al, 600V |
| Product Keywords | WEBREADY |
| Product Name | Terminal blocks |
| ProductLine | SQD |
| Rated Operational Voltage | 600 V AC/DC |
| Rated Service Breaking Capacity | 100 kA UL 508 A |
| Sccr | 100kA UL 508 A |
| Secondary Opening Wire Size | 18 to 10 AWG (Copper/Aluminum) |
| Short Circuit Current Metric | 65.0 kA |
| Short Circuit Current Rating | 65 kA |
| Size | 1.62 in |
| Special Features | LUGS TIN PLATED ALUMINIUM,THERMOPLASTIC BLOCK |
| Standard | CSA FILE 70361 CLASS 6228 01-CE-UL RECOGNIZED E60616 CCN XCFR2 |
| Temperature Rating | -40 to 257 Deg F |
| Terminal Tightening Torque | Line lug 50lbf.in (5.65N.m) AWG 3...AWG 2 copper or aluminium;Line lug 45lbf.in (5.08N.m) AWG 6...AWG 4 copper or aluminium;Line lug 40lbf.in (4.52N.m) AWG 8 copper or aluminium;Line lug 35lbf.in (3.95N.m) AWG 12...AWG 10 copper or aluminium;Line lug 35lbf.in (3.95N.m) AWG 14 copper;Load lug 7lbf.in (0.79N.m) AWG 18...AWG 10 copper |
| Terminals Per Pole | 1 line;4 load |
| Type | Miniature Power Distribution Block;9080LB12;Miniature |
| UNSPSC | 39121410 |
| UPC | 78590115695 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC//VDC;600 Volt AC |
| Width | 1.48 in |
| Wire Size | Line 1, AWG 14...AWG 2, copper or aluminium;Load 4, AWG 18...AWG 10, copper or aluminium |
| Wire Stripping Length | Line 0.5 in;load 0.38 in top;load 0.63 in bottom |
