| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9080LBA263106 |
| Ambient Air Temp For Op | -40302F (-40150C) |
| Ambient Air Temperature For Operation | -40.0-302.0 F |
| Amperage Rating | 335-335 A COPPER-270-270 A ALUMINIUM |
| Application | 9080LB,9080LB32 |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Block Material | Phenolic block NULL |
| Brand Name | 9080LB |
| Catalog Number | 9080LBA263106 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper/Aluminum |
| Connection | Tin plated aluminium lugs;Load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 14 copper;load lug 50 lbf.in AWG 2 copper or aluminium;load lug 35 lbf.in AWG 12...AWG10 copper or aluminium;line lug 375 lbf.in AWG 6...400 kcmil copper or aluminium |
| Connector Material | Tin Plated Aluminum |
| Country Of Origin | USA NULL |
| CountryOfOrigin | US |
| Cover Type | LB32 Clear Plastic |
| Current Rating | 335A copper;270A aluminium NULL;270 Ampere (Aluminum), 335 Ampere (Copper) |
| DDCATEGORY | 586 |
| Depth | 2.91 in |
| Directory | CIS |
| Electrical Connection | Tin plated aluminium lugs NULL |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Height | 4.75 in |
| Housing Material | Phenolic |
| Image Location | * Image |
| Industry | ELX |

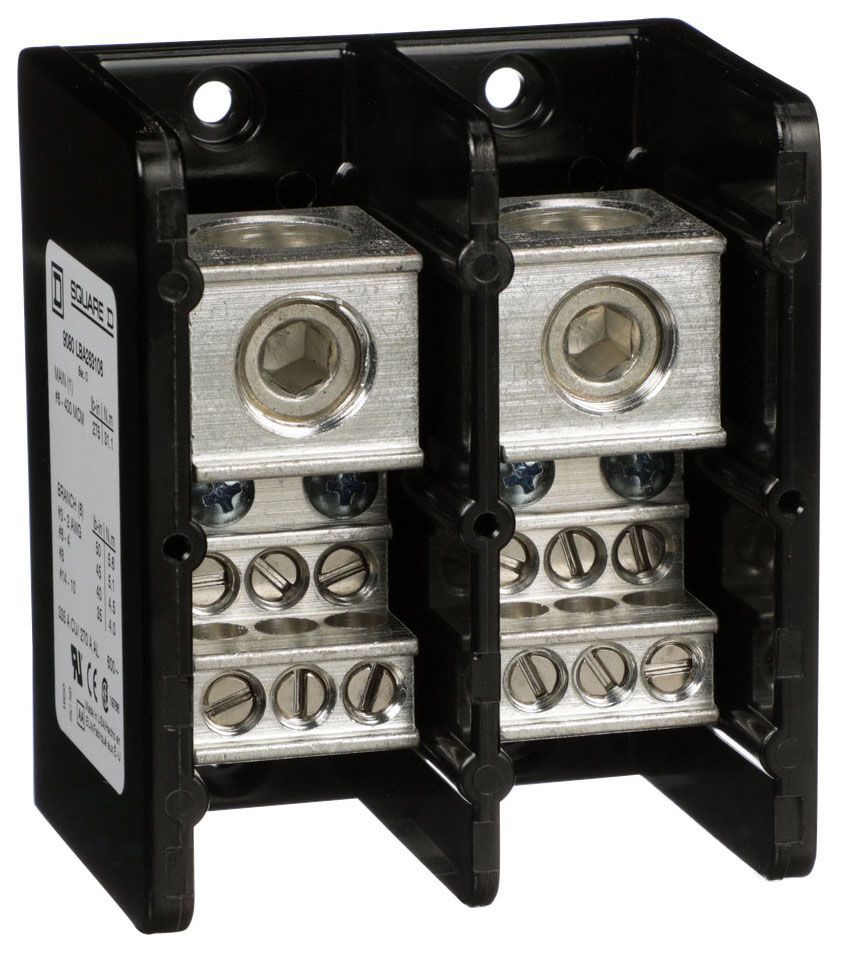

| InvoiceDescription | Power distribution block, Linergy, 2 pole, 1 line, 6 load, 335A CU, 270A AL, 600 V;POWER DISTRIBUTION BLOCK |
| Item Number | 15700 |
| Line Rated Current | 335-335 A copper;270-270 A aluminium |
| Long Description | POWER DISTRIBUTION BLOCK, STANDARD TYPE; 3.47 INCH W X 2.61 INCH D X 4 INCH H SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL, CSA, CE APPROVAL; 600 VAC VOLTAGE RATING; 270 AMPERE (ALUMINUM), 335 AMPERE (COPPER) CURRENT RATING; LB32 CLEAR PLASTIC COVER TYPE |
| MSDS Form Number | * |
| Material | Phenolic block |
| Model | 9080LBA |
| Mounting | Surface mount |
| Noun | * |
| Number Of Cables | Line 1 , AWG 6...400 kcmil, copper or aluminium;load 6 , AWG 14...AWG 2, copper or aluminium |
| Number Of Poles | 2 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 6 |
| Number Of Terminals | 1 line;6 load |
| Primary Opening Wire Size | 6 AWG to 500 KCMIL |
| Product Description | Power distribution block, Linergy, 2 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V |
| Product Keywords | WEBREADY |
| Product Name | Terminal blocks |
| ProductLine | SQD |
| Rated Operational Voltage | 600 V AC/DC |
| Rated Service Breaking Capacity | 65 kA UL 508 A |
| Sccr | 65kA UL 508 A NULL |
| Secondary Opening Wire Size | 14 to 2 AWG |
| Short Circuit Current Metric | 65.0 kA |
| Short Circuit Current Rating | 65 kA |
| Size | 2.91 in;3.47 Inch W x 2.61 Inch D x 4 Inch H |
| Special Features | LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| Standard | CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE |
| Temperature Rating | -40 to 302 DEG F |
| Terminal Tightening Torque | Load lug 45lbf.in (5.08N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40lbf.in (4.52N.m) AWG 8 copper or aluminium;Load lug 35lbf.in (3.95N.m) AWG 14 copper;Load lug 50lbf.in (5.65N.m) AWG 2 copper or aluminium;Load lug 35lbf.in (3.95N.m) AWG 12...AWG10 copper or aluminium;Line lug 375lbf.in (42.37N.m) AWG 6...400 kcmil copper or aluminium NULL |
| Terminals Per Pole | 1 line;6 load NULL |
| Type | Power Distribution Block;9080LB32;Standard |
| UNSPSC | 39121410 |
| UPC | 78590115700 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC//VDC;600 VAC |
| Width | 4.16 in |
| Wire Size | Line 1, AWG 6...400 kcmil, copper or aluminium;Load 6, AWG 14...AWG 2, copper or aluminium |
| Wire Stripping Length | Line 1.06 in;load 0.56 in top;load 1 in bottom |
