SQD 9080LBA263206

Power distribution block, Linergy, 2 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Power distribution block, Linergy, 2 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V

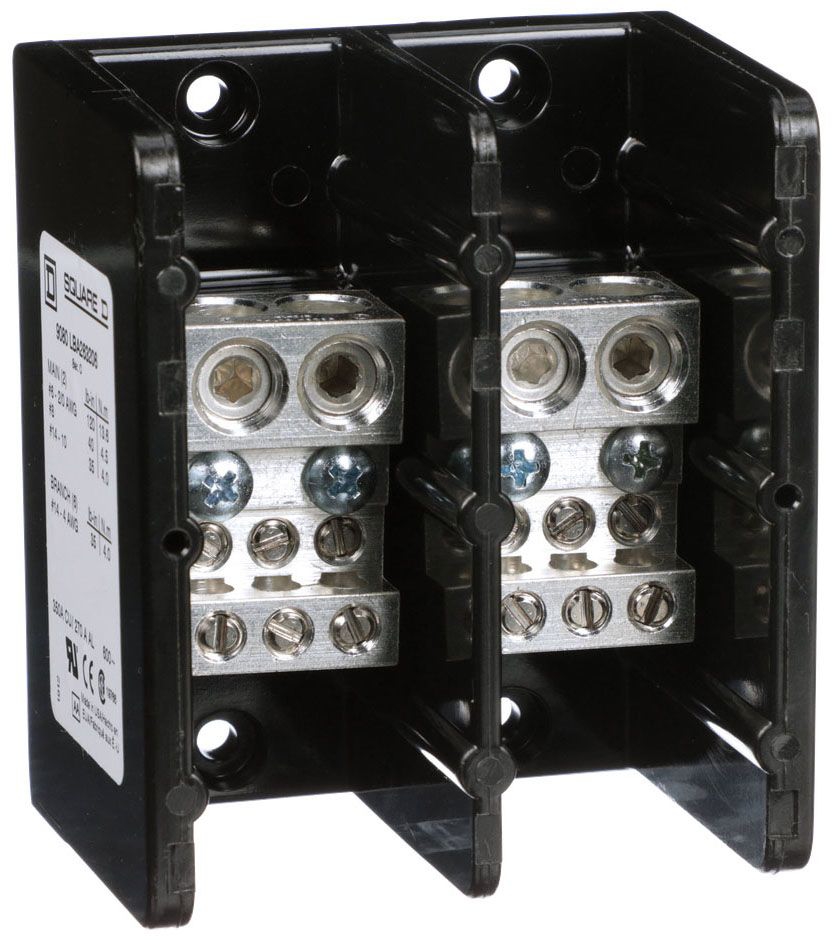

Mouse over image to zoom, click to enlarge

Description:
Power distribution block, Linergy, 2 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V

UPC:  78590115701

Part Number: 9080LBA263206

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $108.71 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080LBA263206
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number 9080LBA263206
Commerce Sector Construction Materials
Commodity Code 61320
Commodity Description Power Blocks & Distribution Blocks
Conductor Material Copper/Aluminum
Connection line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;Line lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium;Tin plated aluminium lugs
Connector Material Tin Plated Aluminum
CountryOfOrigin US
Cover Type LB32 Clear Plastic
Current Rating 270 Ampere (Aluminum), 350 Ampere (Copper)
DDCATEGORY 586
Directory CIS
Families 586
Family Description Power Blocks & Distribution Blocks
Height 4 in
Housing Material Phenolic
Image Location * Image
Industry ELX
InvoiceDescription Power distribution block, Linergy, 2 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V;POWER DISTRIBUTION BLOCK
Item Number 15701
Long Description POWER DISTRIBUTION BLOCK, STANDARD TYPE; 3.47 INCH W X 2.61 INCH D X 4 INCH H SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL, CSA, CE APPROVAL; 600 VAC VOLTAGE RATING; 270 AMPERE (ALUMINUM), 350 AMPERE (COPPER) CURRENT RATING; LB32 CLEAR PLASTIC COVER TYPE
MSDS Form Number *
Material Phenolic: Block
Model 9080LBA
Mounting Surface
Noun *
Number Of Poles 2
Number Of Primary Openings Per Pole 2
Number Of Secondary Openings Per Pole 6
Number Of Terminals 2 load;6 line
Primary Opening Wire Size 14 to 2/0 AWG
Product Description Power distribution block, Linergy, 2 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Secondary Opening Wire Size 14 to 4 AWG
Size 3.47 Inch W x 2.61 Inch D x 4 Inch H
Temperature Rating -40 to 302 DEG F
Type 9080LB32;Power Distribution Block;Standard
UNSPSC 39121410
UPC 78590115701
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width 3.47 in

Resources

CatalogNumber 9080LBA263206
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
