SQD 9080LBA363106

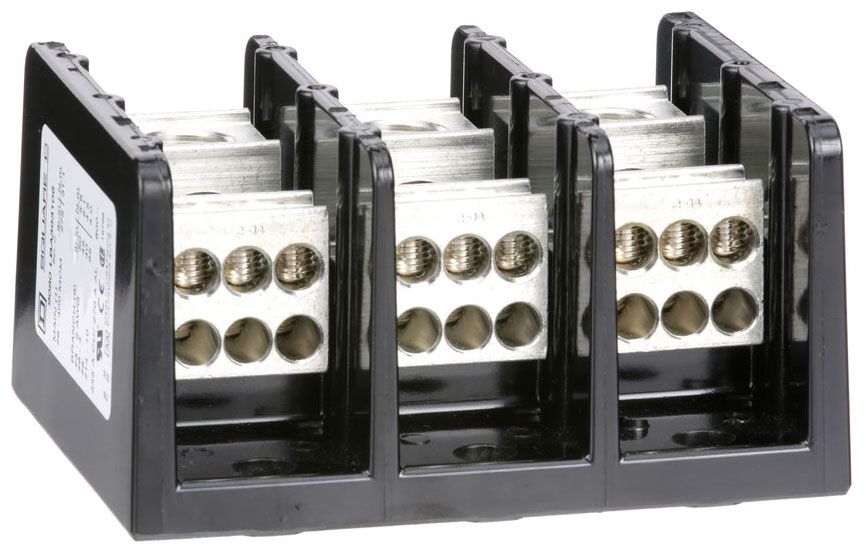

Power distribution block, Linergy, 3 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Power distribution block, Linergy, 3 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V

Mouse over image to zoom, click to enlarge

Description:
Power distribution block, Linergy, 3 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V

UPC:  78590109747

Part Number: 9080LBA363106

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $147.35 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080LBA363106
Approval UL
Base Price 0.0000
Catalog Number 9080LBA363106
Commerce Sector Construction Materials
Commodity Code 61320
Commodity Description Power Blocks & Distribution Blocks
Conductor Material Copper/Aluminum
Connection line lug 375 lbf.in AWG 6...400 kcmil copper or aluminium;load lug 35 lbf.in AWG 12...AWG10 copper or aluminium;load lug 35 lbf.in AWG 14 copper;load lug 40 lbf.in AWG 8 copper or aluminium;Load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 50 lbf.in AWG 2 copper or aluminium;Tin plated aluminium lugs
Connector Material Tin Plated Aluminum
CountryOfOrigin US
Cover Type LB33
Current Rating 335 Amp
DDCATEGORY 586
Directory CIS
Families 586
Family Description Power Blocks & Distribution Blocks
Height 4.75 in
Housing Material Phenolic
Image Location * Image
Industry ELX
InvoiceDescription Power distribution block, Linergy, 3 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V;PWR DISTR BLK
Item Number 09747
Long Description POWER DISTRIBUTION BLOCK, STANDARD TYPE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL APPROVAL; 600 VOLT AC VOLTAGE RATING; 335 AMP CURRENT RATING; LB33 COVER TYPE; -40 TO 302 DEG F TEMPERATURE RATING; PHENOLIC HOUSING MATERIAL; 3 POLE(S)
MSDS Form Number *
Material Phenolic: Block
Model 9080LB
Mounting Surface
Noun *
Number Of Poles 3
Number Of Primary Openings Per Pole 1
Number Of Secondary Openings Per Pole 6
Number Of Terminals 1 line;6 load
Primary Opening Wire Size 6 AWG to 400 KCMIL (Copper/Aluminum)
Product Description Power distribution block, Linergy, 3 pole, 1 line, 6 load, 335A Cu, 270A Al, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Secondary Opening Wire Size 14 to 2 AWG (Copper/Aluminum)
Temperature Rating -40 to 302 Deg F
Type 9080LB33;Power Distribution Block;Standard
UNSPSC 39121410
UPC 78590109747
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 Volt AC
Width 6.03 in
