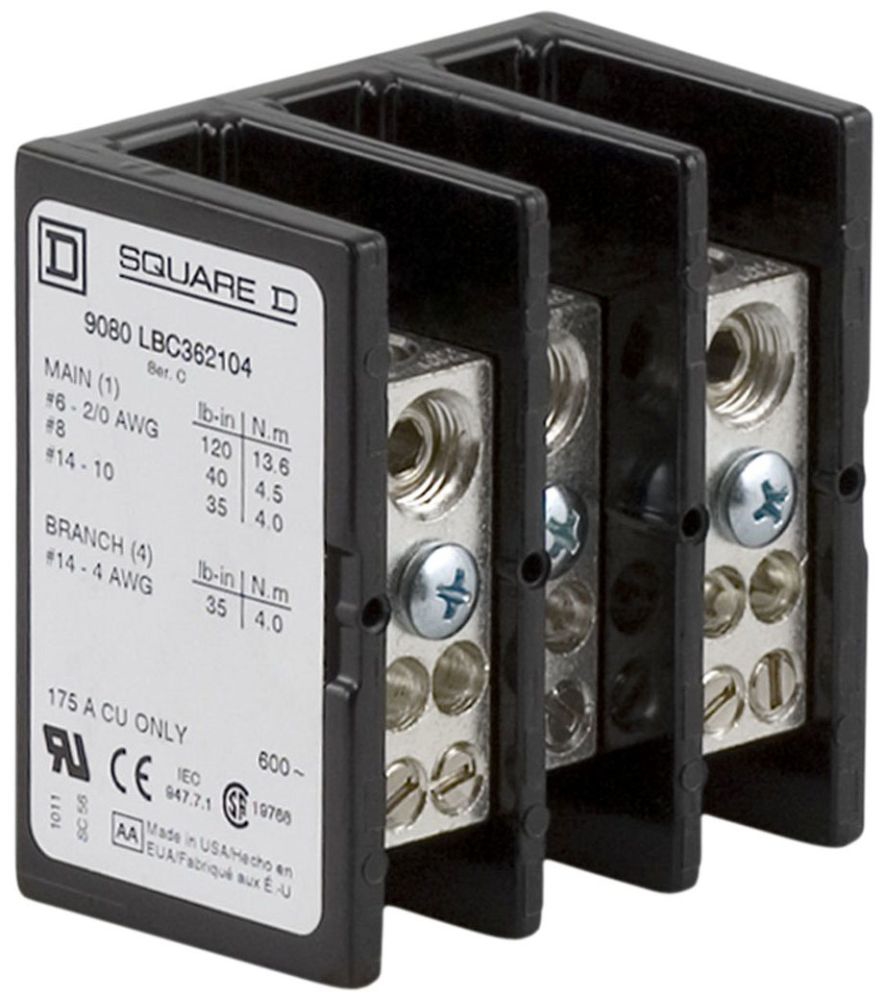

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9080LBC362104 |
| Ambient Air Temp For Op | -40302F (-40150C) |
| Ambient Air Temperature For Operation | -40.0-302.0 F |
| Amperage Rating | 175-175 A COPPER |
| Application | 9080LB,9080LB23 |
| Approval | UL |
| Base Price | 0.0000 |
| Block Material | Phenolic block NULL |
| Brand Name | 9080LB |
| Catalog Number | 9080LBC362104 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper/Aluminum |
| Connection | Tin plated copper lugs;Line lug 40 lbf.in AWG 8 copper;line lug 35 lbf.in AWG 14...AWG 10 copper;line lug 120 lbf.in AWG 6...AWG 2/0 copper;load lug 35 lbf.in AWG 14...AWG 4 copper |
| Connector Material | Tin Plated Copper |
| Country Of Origin | USA NULL |
| CountryOfOrigin | US |
| Cover Type | LB23 |
| Current Rating | 175A copper NULL;175 Amp |
| DDCATEGORY | 586 |
| Depth | 1.78 in |
| Directory | CIS |
| Electrical Connection | Tin plated copper lugs NULL |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Height | 2.88 in |
| Housing Material | Phenolic |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Power distribution block, Linergy, 3 pole, 175A CU, 600V, 1 line side lug, 4 load side lug;PWR DISTR BLK |
| Item Number | 09766 |
| Line Rated Current | 175-175 A copper |
| Long Description | POWER DISTRIBUTION BLOCK, STANDARD TYPE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL APPROVAL; 600 VOLT AC VOLTAGE RATING; 175 AMP CURRENT RATING; LB23 COVER TYPE; -40 TO 302 DEG F TEMPERATURE RATING; PHENOLIC HOUSING MATERIAL; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Phenolic block |
| Model | 9080LB |
| Mounting | Surface mount |
| Noun | * |
| Number Of Cables | Line 4 , AWG 14...AWG 2/0, copper;load 2 , AWG 14...AWG 4, copper |
| Number Of Poles | 3 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 4 |
| Number Of Terminals | 1 line;4 load |
| Primary Opening Wire Size | 14 to 2/0 AWG (Copper/Aluminum) |
| Product Description | Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A Cu, 600V |
| Product Keywords | WEBREADY |
| Product Name | Terminal blocks |
| ProductLine | SQD |
| Rated Operational Voltage | 600 V AC/DC |
| Rated Service Breaking Capacity | 100 kA UL 508 A |
| Sccr | 100kA UL 508 A NULL |
| Secondary Opening Wire Size | 14 to 4 AWG (Copper/Aluminum) |
| Short Circuit Current Metric | 65.0 kA |
| Short Circuit Current Rating | 65 kA |
| Size | 1.78 in |
| Special Features | LUGS TIN PLATED COPPER,PHENOLIC BLOCK |
| Standard | CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE |
| Temperature Rating | -40 to 302 Deg F |
| Terminal Tightening Torque | Line lug 40lbf.in (4.52N.m) AWG 8 copper;Line lug 35lbf.in (3.95N.m) AWG 14...AWG 10 copper;Line lug 120lbf.in (13.56N.m) AWG 6...AWG 2/0 copper;Load lug 35lbf.in (3.95N.m) AWG 14...AWG 4 copper NULL |
| Terminals Per Pole | 1 line;4 load NULL |
| Type | Power Distribution Block;9080LB23;Standard |
| UNSPSC | 39121410 |
| UPC | 78590109766 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC//VDC;600 Volt AC |
| Width | 2.75 in |
| Wire Size | Line 4, AWG 14...AWG 2/0, copper;Load 2, AWG 14...AWG 4, copper |
| Wire Stripping Length | Load 0.38 in top;line 0.75 in;load 0.88 in bottom |
