SQD 9080LBC365212

Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A Cu, 600V

Page Loading...
SQUARE-D/SCHNEIDER
Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A Cu, 600V

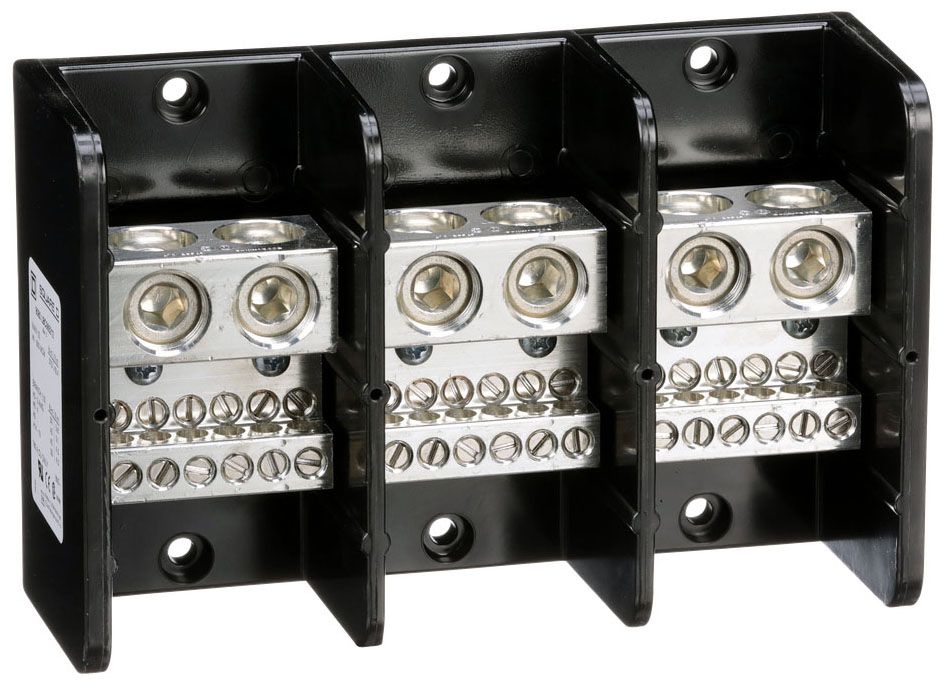

Mouse over image to zoom, click to enlarge

Description:
Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A Cu, 600V

UPC:  78590109770

Part Number: 9080LBC365212

UNSPSC: 39121410

Status:  UNKNOWN

Your Price:  $684.83 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9080LBC365212
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number 9080LBC365212
Commerce Sector Construction Materials
Commodity Code 64400
Commodity Description Terminal Blocks & Accessories
Conductor Material Copper
Connection Tin plated copper lugs;Load lug 40 lbf.in AWG 8 copper;load lug 35 lbf.in AWG 14...AWG 10 copper;line lug 375 lbf.in AWG 4...500 kcmil copper;load lug 50 lbf.in AWG 2 copper;load lug 45 lbf.in AWG 6...AWG 4 copper
Connector Material Tin Plated Copper
CountryOfOrigin US
Cover Type LB53 Clear Plastic
Current Rating 760 Ampere
DDCATEGORY 297
Directory CIS
Families 297
Family Description Terminal Blocks & Accessories
Height 5.5 in
Housing Material Phenolic
Image Location * Image
Industry ELX
InvoiceDescription Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A Cu, 600V;PWR DISTR BLK
Item Number 09770
Long Description POWER DISTRIBUTION BLOCK, STANDARD TYPE; 8.54 INCH W X 3.12 INCH D X 5.5 INCH H SIZE; COPPER CONDUCTOR MATERIAL; UL, CSA, CE APPROVAL; 600 VAC VOLTAGE RATING; 760 AMPERE CURRENT RATING; LB53 CLEAR PLASTIC COVER TYPE; -40 TO 302 DEG F TEMPERATURE RATING
MSDS Form Number *
Material Phenolic: block
Model 9080LBC
Mounting Surface mount
Noun *
Number Of Poles 3
Number Of Primary Openings Per Pole 2
Number Of Secondary Openings Per Pole 12
Number Of Terminals 12 line;3 load
Primary Opening Wire Size 4 AWG to 500 KCMIL
Product Description Power distribution block, Linergy, 3 pole, 2 line, 12 load,760A Cu, 600V
Product Keywords WEBREADY
Product Name Terminal blocks
ProductLine SQD
Secondary Opening Wire Size 14 to 2 AWG
Size 8.54 Inch W x 3.12 Inch D x 5.5 Inch H
Temperature Rating -40 to 302 DEG F
Type Power Distribution Block;9080LB53;Standard
UNSPSC 39121410
UPC 78590109770
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Width 3.17 in

Resources

CatalogNumber 9080LBC365212
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
