SQD B1.45

Thermal Unit, Type S, Type B, melting alloy, Class 20

Page Loading...
SQUARE-D/SCHNEIDER
Thermal Unit, Type S, Type B, melting alloy, Class 20

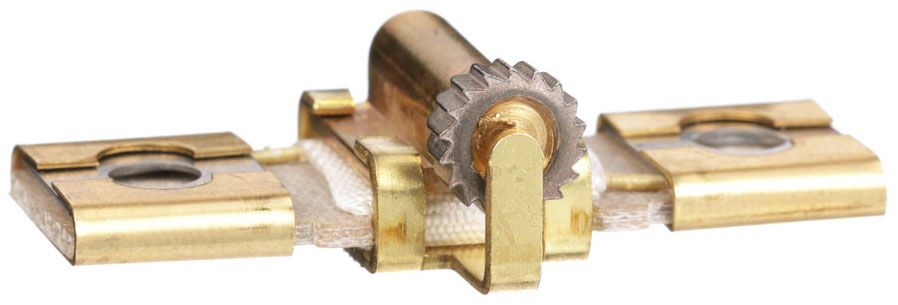

Mouse over image to zoom, click to enlarge

Description:
Thermal Unit, Type S, Type B, melting alloy, Class 20

UPC:  78590158730

Part Number: B1.45

UNSPSC: 39122330

Status:  UNKNOWN

Your Price:  $36.38 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo B1.45
Application FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
Base Price 0.0000
Brand Name B
Catalog Number B1.45
Certifications CE
Commerce Sector Construction Materials
Commodity Code 41700
Commodity Description Thermal Overload Heater Elements
CountryOfOrigin MX
DDCATEGORY 2137
Directory CIS
Families 2137
Family Description Thermal Overload Heater Elements
Full Load Current Range DEPENDANT ON OVERLOAD RELAY
Image Location * Image
Industry ELX
InvoiceDescription Thermal Unit, Type S, Type B, melting alloy, Class 20;THERMAL UNIT
Item Number 58730
Long Description THERMAL UNIT, OVERLOAD RELAY USED ON; PLUG-IN MOUNTING; 6 STANDARD PACKAGE; 1.03 TO 1.14 AMP (1 THERMAL UNIT), 0.97 TO 1.11 AMP (3 THERMAL UNIT) MOTOR FLA; CLASS 20, STANDARD TRIP TYPE; B MODEL
MSDS Form Number *
Maximum Motor Voltage 600VAC
Model B
Motor FLA 1.03 to 1.14 Amp (1 Thermal Unit), 0.97 to 1.11 Amp (3 Thermal Unit)
Motor Tripping Class 20
Mounting Plug-In
Noun *
Product Description Thermal Unit, Type S, Type B, melting alloy, Class 20
Product Keywords WEBREADY
Product Name Overload relay
ProductLine SQD
Reset Type MANUAL
Special Features NEMA OVERLOAD RELAYS
Standard CE
Standard Package 6
Sub Brand SCHNEIDER ELECTRIC
Temperature Trip Range 40C AMBIENT RATED
Thermal Overload Type Melting alloy
Trip Type STANDARD TRIP- CLASS 46;Class 20, Standard
Type THERMAL - MELTING ALLOY THERMAL UNIT
UNSPSC 39122330
UPC 78590158730
Used On Overload Relay
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber B1.45
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
