| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | D223NRB |
| AC Voltage Rating | 240 Volt |
| Action | SINGLE THROW |
| Additional Information | RoHS/REACH Compliant; Wire Size 14 to 1 AWG (Copper), 12 to 1 AWG (Aluminum); Mounting Type Surface |
| Amperage Rating | 100 A |
| Application | Residential |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Square D |
| Catalog Number | D223NRB |
| Commerce Sector | Construction Materials |
| Commodity Code | 31210 |
| Commodity Description | Fusible General Duty Safety Switches |
| Connection | Lugs;AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium |
| Country Of Origin | USA NULL |
| CountryOfOrigin | US |
| Current Rating | 100 A;100 Amp |
| DDCATEGORY | 1703 |
| Depth | 6.5 in |
| Device Composition | Neutral (factory installed) |
| Directory | CIS |
| Enclosure | NEMA 3R |
| Enclosure Rating Nema | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| Factory Installed Neutral | Neutral (factory installed) NULL |
| Families | 1703 |
| Family Description | Fusible General Duty Safety Switches |
| Fuse Provision | Fusible |
| Fuse Type | H, K or R;Class H/K/R |
| Height | 17.5 in |
| Image Location | * Image |
| Industry | ELX |

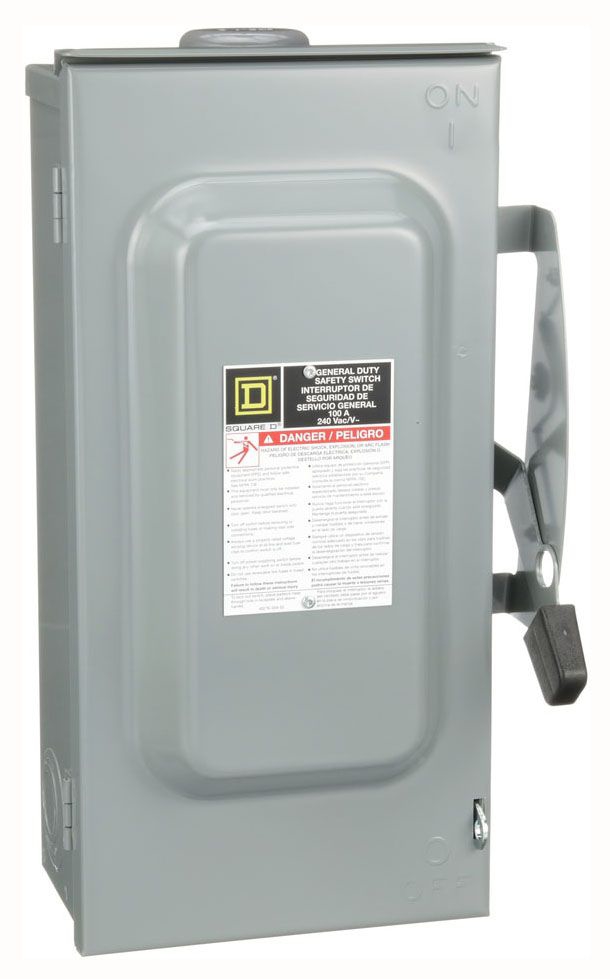

| InvoiceDescription | Safety switch, general duty, fusible, 100A, 3 wire, 2 poles, 1 neutral, 30hp, 240VAC, Type 3R, bolt on hub provision;SWITCH FUSIBLE GD 240V |
| Item Number | 46070 |
| Line Rated Current Metric | 100.0 A |
| Long Description | SAFETY SWITCH, SINGLE THROW, GENERAL DUTY, BOLT-ON HUB TYPE; 10.56 INCH WIDTH X 6.5 INCH DEPTH X 17.5 INCH HEIGHT SIZE; 3 WIRE(S); UL APPROVAL; NEMA 3R ENCLOSURE; 100 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Galvannealed Steel |
| Motor Power Hp | 7.5 hp at 240 V AC 60 Hz for 1 phase motors;15 hp at 240 V AC 60 Hz for 3 phase motors;15 hp at 240 V AC 60 Hz for 1 phase motors;30 hp at 240 V AC 60 Hz for 3 phase motors |
| Mounting | Surface |
| Nema Degree Of Protection | NEMA 3R |
| Net Weight Metric | 7.0 kg |
| Neutral Type | Factory Installed |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 3 phase |
| Power Rating | 7.5 HP at 240 Volt AC 1-Phase, 15 HP at 240 Volt AC 3-Phase, 15 HP at 240 Volt AC 1-Phase, 30 HP at 240 Volt AC 3-Phase |
| Product Description | Safety switch, general duty, fusible, 100A, 2 pole, 30hp, 240VAC, NEMA 3R, 3 wire, 1 neutral, bolt on hub provision |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| Product Weight | 15.43 lb |
| ProductLine | SQD |
| Rated Operational Voltage | 240 V AC |
| Short Circuit Current | 100 kA maximum depending on fuse H, K or R |
| Short Circuit Current Rating | 100kA maximum depending on fuse H, K or R |
| Size | 6.5 in;10.56 Inch Width x 6.5 Inch Depth x 17.5 Inch Height |
| Special Features | GENERAL DUTY |
| Sub Brand | General duty |
| Tightening Torque | 35-35 lbf.in 2.08-5.26 mm (AWG 14...AWG 10);40-40 lbf.in 8.37-8.37 mm (AWG 8);35-35 lbf.in (AWG 14...AWG 10);45-45 lbf.in 12.3-21.12 mm (AWG 6...AWG 4);50-50 lbf.in (AWG 3...AWG 1) |
| Type | Fusible disconnect switch;Single Throw Safety Switch;Single Throw, General Duty, Bolt-On Hub |
| UNSPSC | 39122205 |
| UPC | 78590146070 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 240 VAC |
| Width | 10.56 in |
| Wire Size | AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium |
| Wiring Configuration | 3-wire |
