| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | D321N |
| AC Voltage Rating | 240 Volt |
| Action | SINGLE THROW |
| Additional Information | RoHS/REACH Compliant; Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum); Mounting Type Surface |
| Amperage Rating | 30 A |
| Application | Residential |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Square D |
| Catalog Number | D321N |
| Commerce Sector | Construction Materials |
| Commodity Code | 31210 |
| Commodity Description | Fusible General Duty Safety Switches |
| Connection | Lugs;AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium |
| Country Of Origin | Mexico NULL |
| CountryOfOrigin | MX |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 1703 |
| Depth | 3.63 in |
| Device Composition | Neutral (factory installed) |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Enclosure Rating Nema | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Factory Installed Neutral | Neutral (factory installed) NULL |
| Families | 1703 |
| Family Description | Fusible General Duty Safety Switches |
| Fuse Provision | Fusible |
| Fuse Type | H, K or R;Class H/K/R |
| Height | 9.25 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Safety switch, general duty, fusible, 30A, 3 poles, 7.5 hp, 240 VAC, NEMA 1, neutral factory installed;SWITCH FUSIBLE GD 240V |
| Item Number | 46103 |
| Line Rated Current Metric | 30.0 A |
| Long Description | SAFETY SWITCH, SINGLE THROW, GENERAL DUTY TYPE; 7.25 INCH WIDTH X 3.63 INCH DEPTH X 9.25 INCH HEIGHT SIZE; 4 WIRE(S); UL APPROVAL; NEMA 1 ENCLOSURE; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Motor Power Hp | 1.5 hp at 240 V AC 60 Hz for 1 phase motors;3 hp at 240 V AC 60 Hz for 3 phase motors;3 hp at 240 V AC 60 Hz for 1 phase motors;7.5 hp at 240 V AC 60 Hz for 3 phase motors |
| Mounting | Surface |
| Nema Degree Of Protection | NEMA 1 |
| Net Weight Metric | 9.0 kg |
| Neutral Type | Factory Installed |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 phase |
| Power Rating | 1.5 HP at 240 Volt AC 1-Phase, 3 HP at 240 Volt AC 3-Phase, 3 HP at 240 Volt AC 1-Phase, 7.5 HP at 240 Volt AC 3-Phase |

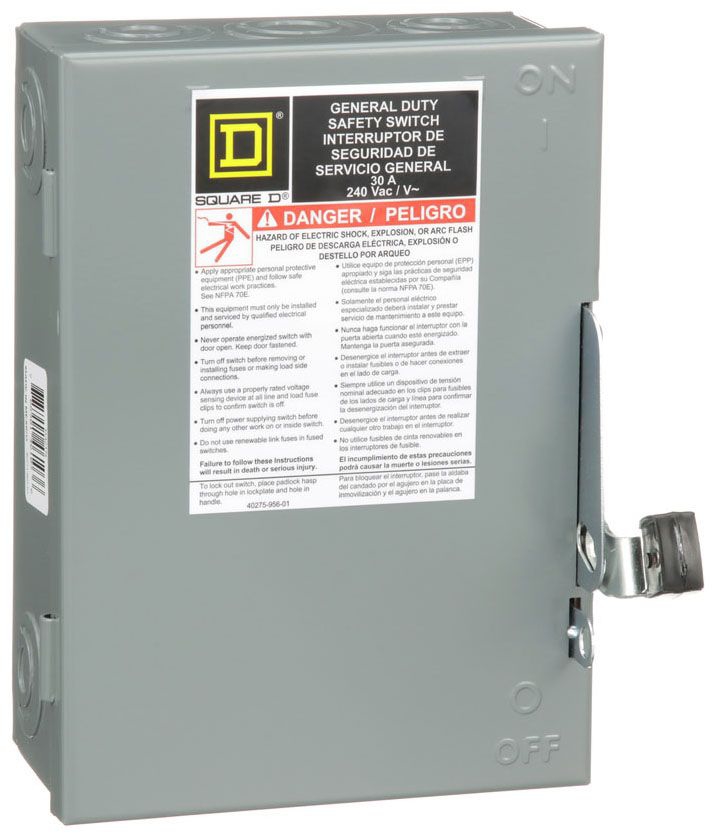

| Product Description | Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 1, neutral factory installed |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| Product Weight | 19.84 lb |
| ProductLine | SQD |
| Rated Operational Voltage | 240 V AC |
| Short Circuit Current | 100 kA maximum depending on fuse H, K or R |
| Short Circuit Current Rating | 100kA maximum depending on fuse H, K or R NULL |
| Size | 3.63 in;7.25 Inch Width x 3.63 Inch Depth x 9.25 Inch Height |
| Special Features | GENERAL DUTY |
| Sub Brand | General duty |
| Tightening Torque | 30-30 lbf.in 2.08-13.3 mm (AWG 14...AWG 6) |
| Type | Fusible disconnect switch;Single Throw Safety Switch;Single Throw, General Duty |
| UNSPSC | 39122205 |
| UPC | 78590146103 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 240 VAC |
| Width | 7.25 in |
| Wire Size | AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium NULL |
| Wiring Configuration | 4-wire (3PH + G) |
