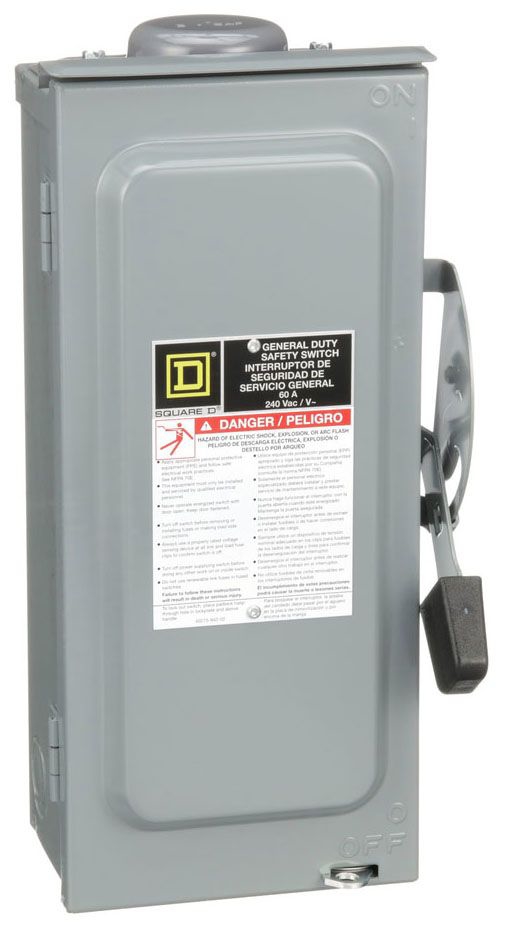

SQD D322NRB

Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 60A, Type 3R, bolt on hub prov, with neutral

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 60A, Type 3R, bolt on hub prov, with neutral

Mouse over image to zoom, click to enlarge

Description:
Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 60A, Type 3R, bolt on hub prov, with neutral

UPC:  78590146128

Part Number: D322NRB

UNSPSC: 39122205

Status:  UNKNOWN

Your Price:  $441.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo D322NRB
AC Voltage Rating 240 Volt
Additional Information RoHS/REACH Compliant; Wire Size 14 to 3 AWG (Copper), 12 to 3 AWG (Aluminum); Mounting Type Surface
Approval UL
Base Price 0.0000
Catalog Number D322NRB
Commerce Sector Construction Materials
Commodity Code 31210
Commodity Description Fusible General Duty Safety Switches
CountryOfOrigin US
Current Rating 60 Amp
DDCATEGORY 1703
Depth 4.87 in
Directory CIS
Enclosure NEMA 3R
Families 1703
Family Description Fusible General Duty Safety Switches
Fuse Provision Fusible
Fuse Type Class H/K/R
Height 14.88 in
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 60A, Type 3R, bolt on hub prov, with neutral;SWITCH FUSIBLE GD 240V
Item Number 46128
Long Description SAFETY SWITCH, SINGLE THROW, GENERAL DUTY, BOLT-ON HUB TYPE; 7.45 INCH WIDTH X 4.87 INCH DEPTH X 14.88 INCH HEIGHT SIZE; 4 WIRE(S); UL APPROVAL; NEMA 3R ENCLOSURE; 60 AMP CURRENT RATING
MSDS Form Number *
Neutral Type Factory Installed
Noun *
Number Of Poles 3
Number Of Wires 4
Power Rating 1.5 HP at 120 Volt AC 1-Phase, 3 HP at 120 Volt AC 3-Phase, 3 HP at 240 Volt AC 1-Phase, 7.5 HP at 240 Volt AC 3-Phase, 10 HP at 240 Volt AC 1-Phase, 15 HP at 240 Volt AC 3-Phase
Product Description Safety switch, general duty, fusible, 3 pole, 4 wire, 240VAC, 60A, Type 3R, bolt on hub prov, with neutral
Product Keywords WEBREADY
Product Name Safety switch
ProductLine SQD
Size 7.45 Inch Width x 4.87 Inch Depth x 14.88 Inch Height
Type Single Throw, General Duty, Bolt-On Hub
UNSPSC 39122205
UPC 78590146128
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 7.45 in

Resources

CatalogNumber D322NRB
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
