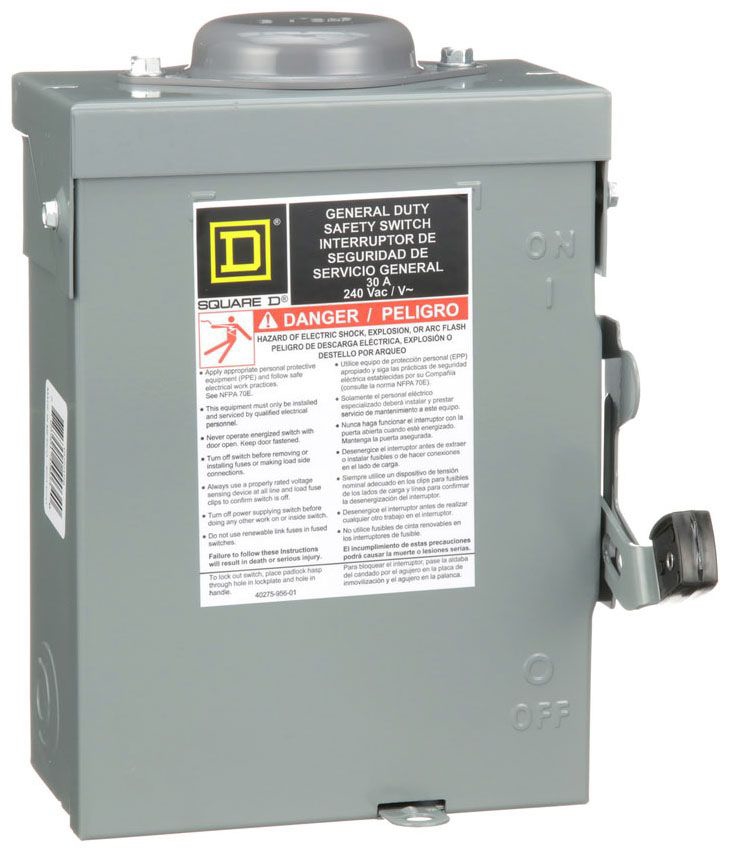

SQD DU221RB

Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 30A, Type 3R with bolt on hub prov

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 30A, Type 3R with bolt on hub prov

Mouse over image to zoom, click to enlarge

Description:
Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 30A, Type 3R with bolt on hub prov

UPC:  78590149034

Part Number: DU221RB

UNSPSC: 39122205

Status:  UNKNOWN

Your Price:  $177.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo DU221RB
AC Voltage Rating 240 Volt
Additional Information RoHS/REACH Compliant; Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum); Mounting Type Surface
Amperage Rating 30 A
Application Residential
Approval UL
Base Price 0.0000
Brand Name Square D
Catalog Number DU221RB
Commerce Sector Construction Materials
Commodity Code 31220
Commodity Description Non-Fusible General Duty Safety Switches
Connection Lugs;AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
CountryOfOrigin MX
Current Rating 30 A;30 Amp
DDCATEGORY 1704
Depth 3.75 in
Device Application Residential
Device Composition None
Directory CIS
Disconnect Type Non-fusible disconnect switch NULL
Duty Rating General duty NULL
Electrical Connection Lugs NULL
Enclosure NEMA 3R
Enclosure Rating Nema NEMA 3R
Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
Factory Installed Neutral None NULL
Families 1704
Family Description Non-Fusible General Duty Safety Switches
Fuse Provision Non-Fusible
Height 9.63 in
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, general duty, non fusible, 30A, 2 poles, 3 hp, 240 VAC, NEMA 3R, bolt-on provision;SWITCH NOT FUSIBLE GD
Item Number 49034
Line Rated Current Metric 30.0 A
Long Description SAFETY SWITCH, SINGLE THROW, GENERAL DUTY, BOLT-ON HUB TYPE; 7.75 INCH WIDTH X 3.75 INCH DEPTH X 9.63 INCH HEIGHT SIZE; 2 WIRE(S); UL APPROVAL; NEMA 3R ENCLOSURE; 30 AMP CURRENT RATING; 3 HP AT 240 VOLT AC 1-PHASE POWER RATING; 2 POLE(S); NO NEUTRAL TYPE
MSDS Form Number *
Motor Power Hp 3 hp at 240 V AC 60 Hz for 1 phase motors
Mounting Surface
Mounting Type Surface
Nema Degree Of Protection NEMA 3R
Net Weight Metric 7.7 kg|
Neutral Type No
Noun *
Number Of Poles 2
Number Of Wires 2
Phase 3 phase
Power Rating 3 HP at 240 Volt AC 1-Phase
Product Single Throw Safety Switch NULL
Product Description Safety switch, general duty, non fusible, 2 pole, 2 wire, 240VAC, 30A, Type 3R with bolt on hub prov
Product Keywords WEBREADY
Product Name Safety switch
Product Weight 16.98 lb
ProductLine SQD
Rated Operational Voltage 240 V AC
Size 3.75 IN,7.75 IN,9.63 IN;7.75 Inch Width x 3.75 Inch Depth x 9.63 Inch Height
Special Features GENERAL DUTY
Standard UL LISTED FILE E2875
Sub Brand General duty
Tightening Torque 30-30 lbf.in 2.08-13.3 mm (AWG 14...AWG 6)
Type Non-fusible disconnect switch;Single Throw Safety Switch;Single Throw, General Duty, Bolt-On Hub
UNSPSC 39122205
UPC 78590149034
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 240 VAC
Width 7.75 in
Wire Size AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
Wiring Configuration 2 wires
