SQD HDL36090

Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Page Loading...
SQUARE-D/SCHNEIDER

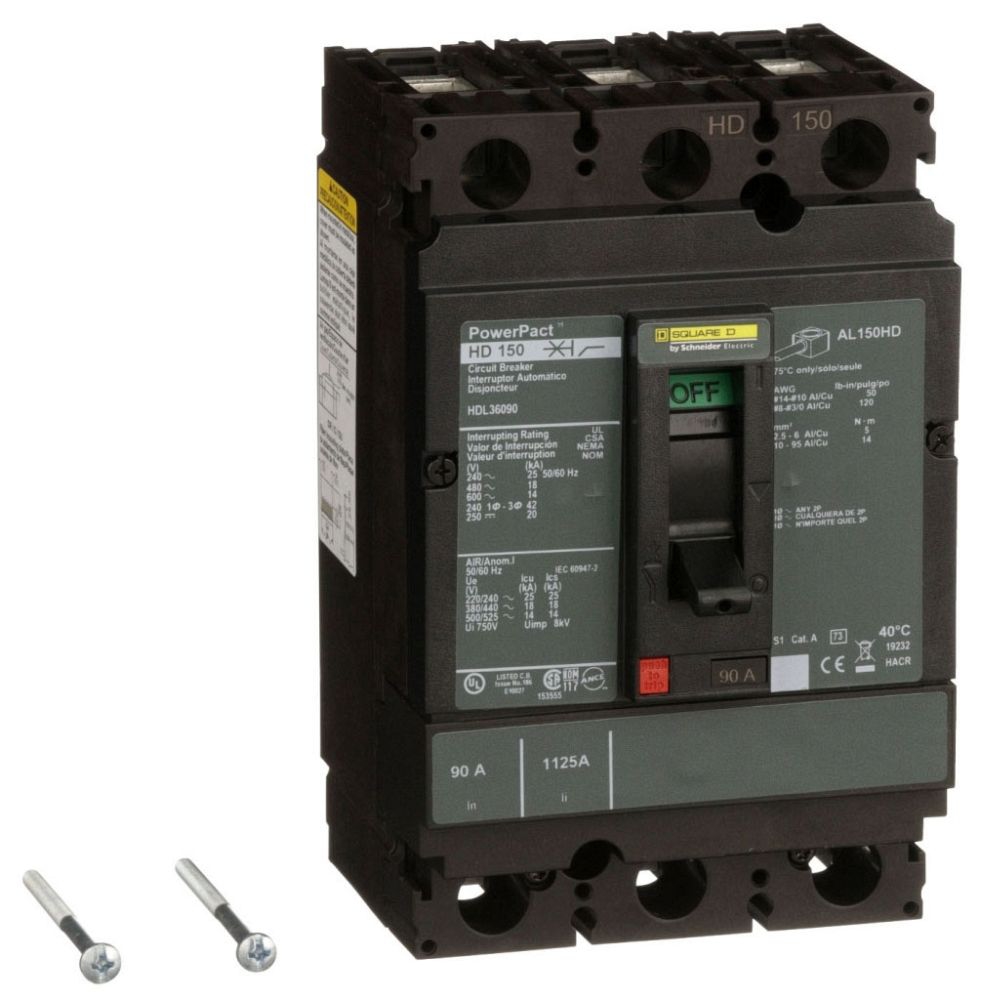

Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Mouse over image to zoom, click to enlarge

Description:
Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

UPC:  78590195591

Part Number: HDL36090

UNSPSC: 39121616

Status:  UNKNOWN

Your Price:  $1,328.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HDL36090
Additional Information RoHS/REACH Compliant; Trip Setting 800 Amp (Hold), 1450 Amp (Trip); Mounting Type Unit; Control Type Toggle; Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum); Continuous Current Rating 80 Percent; Operation Ambient Air Temperature Rating 28 to 158 Deg F
Application Distribution
Approval UL, CSA, CE
Base Price 0.0000
Brand Name PowerPact[TM]
Catalog Number HDL36090
Commerce Sector Construction Materials
Commodity Code 32613
Commodity Description 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
Connection AWG 14...AWG 3/0 aluminium/copper terminal;Lugs, line;lugs, load
CountryOfOrigin MX
Current Rating 90 Amp
DDCATEGORY 1806
Directory CIS
Families 1806
Family Description 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
Frame Type H
Height 6.4173 in
Image Location * Image
Industry ELX
Interrupting Rating 14 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC
InvoiceDescription Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%;MOLDED CASE CIRCUIT
Item Number 95591
Long Description MOLDED CASE CIRCUIT BREAKER, THERMAL MAGNETIC, CURRENT LIMITING TYPE; 4.09 INCH WIDTH X 3.39 INCH DEPTH X 6.42 INCH HEIGHT SIZE; 600 VOLT MAX. AC VOLTAGE RATING; 250 VOLT MAX. DC VOLTAGE RATING; UL, CSA, CE APPROVAL
MSDS Form Number *
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Model HD
Noun *
Number Of Poles 3
Product Description Circuit breaker, PowerPacT H, 90A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Product Keywords WEBREADY
Product Name Molded case circuit breakers
ProductLine SQD
Size 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
Special Features Ethernet;Modbus
Terminal Type Line/Load Lug
Trip Type Thermal-magnetic
Type Circuit breaker;Thermal Magnetic, Current Limiting
UNSPSC 39121616
UPC 78590195591
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC
Width 4.0945 in

Resources

CatalogNumber HDL36090
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
