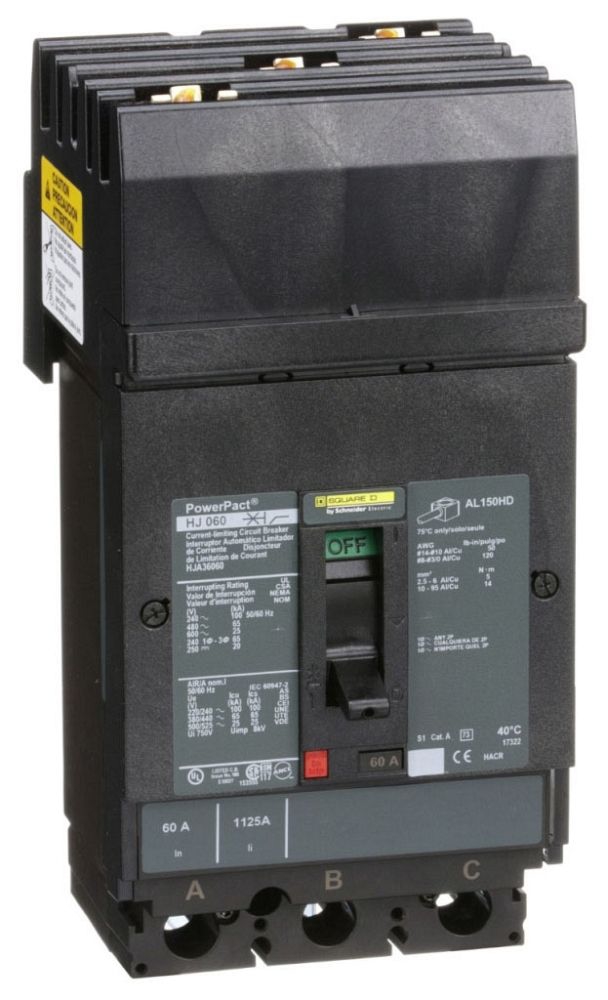

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | HJA36060 |
| Additional Information | RoHS/REACH Compliant; Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height; Frame Type H; Terminal Type I-Line Connection Line Lug Load; Control Type Toggle; Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum); Continuous Current Rating 8 |
| Amperage Rating | 60 A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION;Distribution |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Brand Name | SQUARE D BY SCHNEIDER ELECTRIC;PowerPact[TM] |
| Breaking Capacity | 100 kA 240 V AC 50/60 Hz UL 489; 65 kA 480 V AC 50/60 Hz UL 489; 25 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489 |
| Catalog Number | HJA36060 |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Continuous Current Rating | 80.0 |
| Control Type | Toggle |
| CountryOfOrigin | MX |
| Current Rating | 60 Amp |
| DDCATEGORY | 1806 |
| Device Application | Distribution |
| Directory | CIS |
| Electrical Connection | I-Line connection line;lugs load |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | H-FRAME |
| Frequency Rating | 50/60 Hz |
| Height | 0.000 |
| Ics Rated Service Breaking Cap | 100kA 220/240 V AC 50/60 Hz IEC 60947-2;65kA 380/440/415 V AC 50/60 Hz IEC 60947-2;25kA 500/525 V AC 50/60 Hz IEC 60947-2;20kA 250 V DC IEC 60947-2;20kA 500 V DC IEC 60947-2 |
| Image Location | * Image |
| In Rated Current | 60 A |
| Industry | ELX |
| Interrupting Rating | 25 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC |
| InvoiceDescription | Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC;MOLDED CASE CIRCUIT |
| Item Number | 60096 |
| Length | 4.8 in |
| Long Description | MOLDED CASE CIRCUIT BREAKER, THERMAL MAGNETIC, CURRENT LIMITING TYPE; CLASS 611/612 I-LINE PANELBOARD AND SWITCHBOARD USED ON; UL, CSA, CE APPROVAL; DISTRIBUTION APPLICATION; 600 VOLT AC 50/60 HERTZ, 250 VOLT DC VOLTAGE RATING |
| MSDS Form Number | * |
| Magnetic Hold Current | 800 A |
| Magnetic Tripping Current | 1450 A |
| Model | HJ |
| Network Frequency | 50/60 Hz |
| Noun | * |
| Number Of Poles | 3 |
| Operating Temperature | -13F AND 158F (-25 C AND +70 C) |
| Phase Connection | ABC |
| Product Description | Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC |
| Product Keywords | WEBREADY |
| Product Name | PowerPact H |
| Product Or Component Type | Circuit breaker |
| ProductLine | SQD |
| Protected Poles Description | 3t |
| Range | PowerPact |
| Rating Code | J |
| Special Features | I-LINE PLUG-ON |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Trip Range | HOLD: 800A - TRIP: 1450A |
| Trip Setting | 800 Amp (Hold), 1450 Amp (Trip) |
| Trip Type | THERMAL-MAGNETIC |
| Trip Unit Technology | Thermal-magnetic | |
| Type | MOLDED CASE CIRCUIT BREAKER;Thermal Magnetic, Current Limiting |
| UNSPSC | 39121616 |
| UPC | 78590160096 |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Uimp Rated Imp Wstd Voltage | 8kV IEC 60947-2 |
| Used On | Class 611/612 I-Line Panelboard and Switchboard |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600//250 VAC//VDC;600 Volt AC 50/60 Hertz, 250 Volt DC |
