SQD HU361AWA

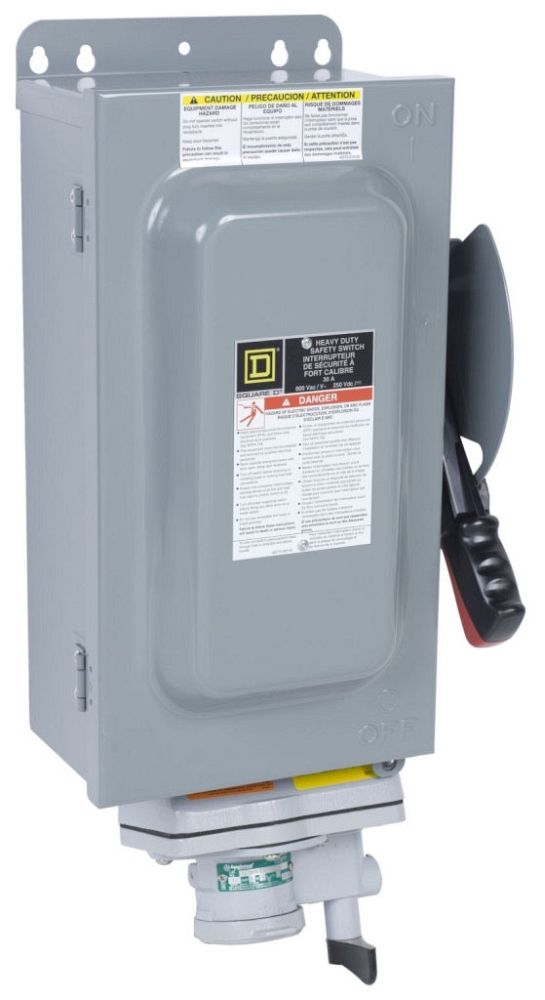

Safety switch, heavy duty, non fusible, 30A, 600VAC, 600VDC, 3 poles, 20hp, NEMA 12K, Appleton Powertite receptacle

Page Loading...
ALLEN-BRADLEY (ROCKWELL AUTOMATION, INC.)
60A switch Disconnect Kits

Mouse over image to zoom, click to enlarge

Description:
Safety switch, heavy duty, non fusible, 30A, 600VAC, 600VDC, 3 poles, 20hp, NEMA 12K, Appleton Powertite receptacle

UPC:  88950814096

Part Number: 1494U-N60-CR-N-PC

UNSPSC: 39122233

Status:  UNKNOWN

Your Price:  $2,076.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HU361AWA
AC Voltage Rating 600 Volt
Additional Information RoHS/REACH Compliant; Wire Size 14 to 2 AWG (Copper), 12 to 2 AWG (Aluminum); Mounting Type Surface; Includes Appleton Powertite Receptacle
Application Plug ACP3034BC Appleton Powertite
Approval UL
Base Price 0.0000
Catalog Number HU361AWA
Commerce Sector Construction Materials
Commodity Code 31520
Commodity Description Non-Fusible Special Application Safety Switches
Connection Receptacle
CountryOfOrigin US
Current Rating 30 Amp
DC Voltage Rating 250 Volt
DDCATEGORY 1713
Directory CIS
Enclosure NEMA 12K
Families 1713
Family Description Non-Fusible Special Application Safety Switches
Fuse Provision Non-Fusible
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, heavy duty, non fusible, 30A, 600VAC, 600VDC, 3 poles, 20hp, NEMA 12K, Appleton Powertite receptacle;SW NOT FUSIBLE HD 30A
Item Number 66623
Long Description SAFETY SWITCH, HEAVY DUTY, SINGLE THROW TYPE; 10.5 INCH WIDTH X 7 INCH DEPTH X 16.5 INCH HEIGHT SIZE; 4 WIRE(S); UL APPROVAL; NEMA 12K ENCLOSURE; 30 AMP CURRENT RATING
MSDS Form Number *
Mounting Surface
Neutral Type No
Noun *
Number Of Poles 3
Number Of Wires 4
Power Rating 20 HP at 480 Volt AC 3-Phase, 30 HP at 600 Volt AC 3-Phase, 5 HP at 250 Volt DC
Product Description Safety switch, heavy duty, non fusible, 30A, 600VAC, 600VDC, 3 poles, 20hp, NEMA 12K, Appleton Powertite receptacle
Product Keywords WEBREADY
Product Name Non fusible switch
ProductLine SQD
Size 10.5 Inch Width x 7 Inch Depth x 16.5 Inch Height
Type Non-fusible disconnect switch;Receptacle Switch;Heavy Duty, Single Throw
UNSPSC 39122218
UPC 78590166623
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Wire Type AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper

Resources

CatalogNumber HU361AWA
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
