SQD HU362DF

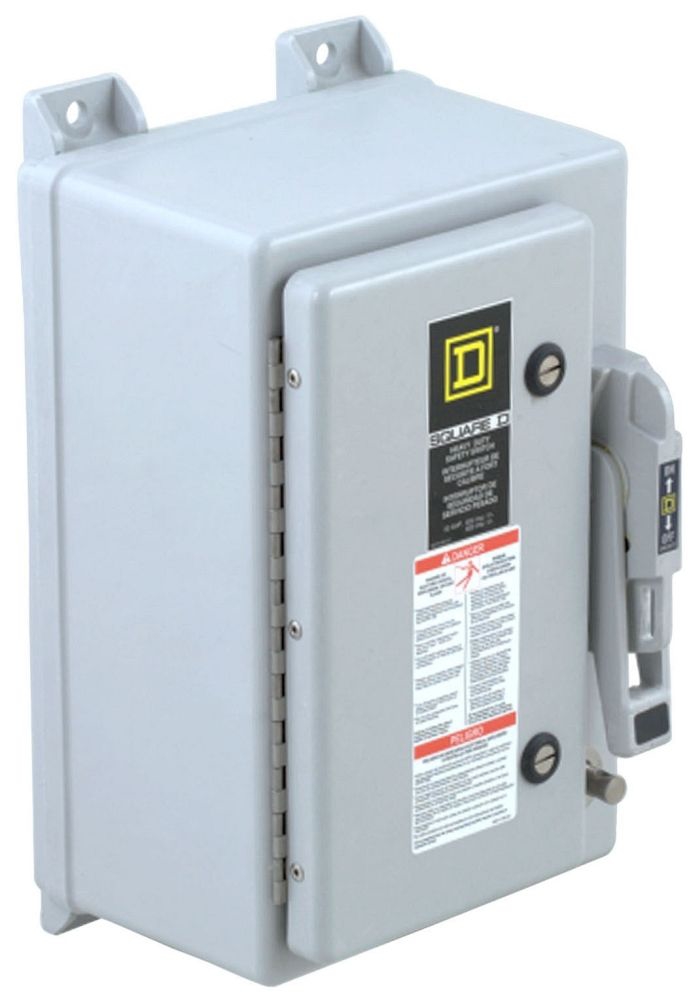

Safety switch, heavy duty, non fusible, 60A, 3 pole, 60HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, heavy duty, non fusible, 60A, 3 pole, 60HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester

Mouse over image to zoom, click to enlarge

Description:
Safety switch, heavy duty, non fusible, 60A, 3 pole, 60HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester

UPC:  78590162790

Part Number: HU362DF

UNSPSC: 39122218

Status:  UNKNOWN

Your Price:  $3,782.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HU362DF
AC Voltage Rating 600 Volt
Additional Information RoHS/REACH Compliant; Wire Size 14 to 3 AWG (Copper), 12 to 3 AWG (Aluminum); Mounting Type Surface
Application Heavy application
Approval UL
Base Price 0.0000
Catalog Number HU362DF
Commerce Sector Construction Materials
Commodity Code 31520
Commodity Description Non-Fusible Special Application Safety Switches
Connection Lugs
CountryOfOrigin MX
Current Rating 60 Amp
DC Voltage Rating 600 Volt
DDCATEGORY 1713
Directory CIS
Enclosure NEMA 4X
Enclosure Material Fiberglass Reinforced Polyester
Families 1713
Family Description Non-Fusible Special Application Safety Switches
Fuse Provision Non-Fusible
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, heavy duty, non fusible, 60A, 3 pole, 60HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester;SW UNFUSED HD 60A 3P
Item Number 62790
Long Description SAFETY SWITCH, HEAVY DUTY, SINGLE THROW TYPE; 11 INCH WIDTH X 8.8 INCH DEPTH X 16.5 INCH HEIGHT SIZE; FIBERGLASS REINFORCED POLYESTER ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 4X ENCLOSURE; 60 AMP CURRENT RATING
MSDS Form Number *
Mounting Surface
Neutral Type No
Noun *
Number Of Poles 3
Number Of Wires 3
Power Rating 50 HP at 480 Volt AC 3-Phase, 60 HP at 600 Volt AC 3-Phase, 30 HP at 600 Volt DC
Product Description Safety switch, heavy duty, non fusible, 60A, 3 pole, 60HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester
Product Keywords WEBREADY
Product Name Non fusible switch
ProductLine SQD
Size 11 Inch Width x 8.8 Inch Depth x 16.5 Inch Height
Type Non-fusible disconnect;Single Throw Safety Switch;Heavy Duty, Single Throw
UNSPSC 39122218
UPC 78590162790
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Wire Type AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
