SQD HU362WA

Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 1, Appleton Powertite receptacle

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 1, Appleton Powertite receptacle

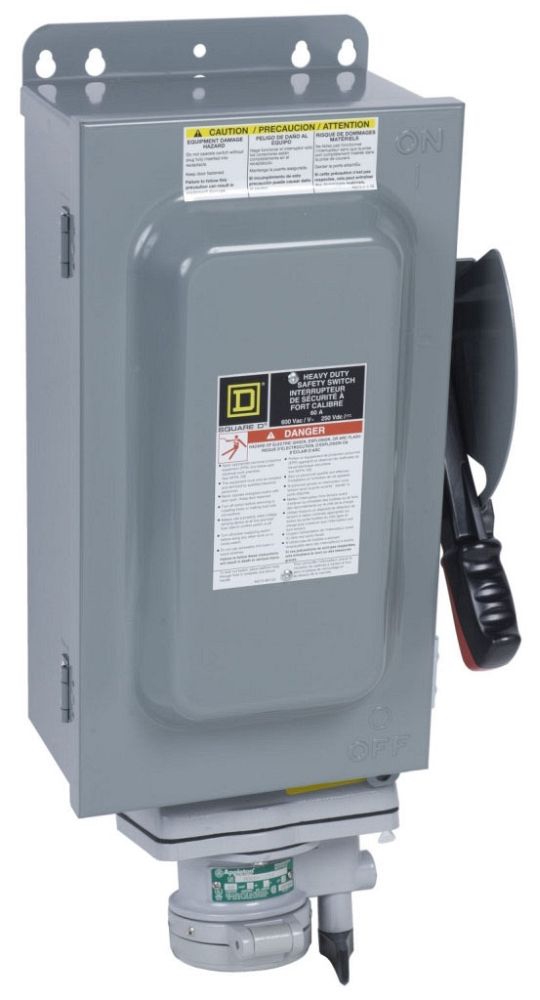

Mouse over image to zoom, click to enlarge

Description:
Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 1, Appleton Powertite receptacle

UPC:  78590177525

Part Number: HU362WA

UNSPSC: 39122218

Status:  UNKNOWN

Your Price:  $2,306.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HU362WA
Additional Information Approval UL, CSA
Amperage Rating 60 A
Application Plug ACP6034BC Appleton Powertite
Base Price 0.0000
Brand Name Square D
Catalog Number HU362WA
Commerce Sector Construction Materials
Commodity Code 31520
Commodity Description Non-Fusible Special Application Safety Switches
Connection Receptacle
Country Of Origin USA NULL
CountryOfOrigin US
Current Rating 60 A;60 Ampere
DDCATEGORY 1713
Depth 6.81 in
Directory CIS
Enclosure NEMA 1 SHEET STEEL;NEMA 1
Enclosure Rating Nema 3r NEMA 1
Environmental Conditions GENERAL PURPOSE (INDOOR)
Families 1713
Family Description Non-Fusible Special Application Safety Switches
For Use With Plug ACP6034BC Appleton Powertite NULL
Fuse Provision Class H/J/K/R/T, Non-Fusible
Height 18.9 in
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, heavy duty, non fusible, 60A, 600 VAC/VDC, 3 poles, 60 hp, NEMA 1, appleton powertite receptacle;SW UNFUSED HD 60A
Item Number 77525
Line Rated Current Metric 60.0 A
Long Description RECEPTACLE SWITCH, INTERLOCKED TYPE; EPOXY POWDER COATED COPPER FREE CAST ALUMINUM RECEPTACLE, SHEET STEEL ENCLOSURE MATERIAL; 4 WIRE(S); 600 VAC 3-PHASE/250 VDC VOLTAGE RATING; NEMA 1 ENCLOSURE; 60 AMPERE CURRENT RATING; 3 POLE(S)
MSDS Form Number *
Material Steel;Epoxy Powder Coated Copper Free Cast Aluminum Receptacle, Sheet Steel Enclosure
Maximum Horse Power Rating 50hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;60hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;10hp 250 V at DC conforming to NEC 430.52
Model HU
Mounting Surface
Nema Degree Of Protection NEMA 1
Noun *
Number Of Poles 3
Number Of Wires 4
Phase 3 phase
Product Description Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 1, Appleton Powertite receptacle
Product Keywords WEBREADY
Product Name Non fusible switch
ProductLine SQD
Rated Operational Voltage 600 V AC;250 V DC
Size 6.81 in
Special Features RECEPTACLE
Tightening Torque 45-45 lbf.in (AWG 6...AWG 4);40-40 lbf.in (AWG 8);35-35 lbf.in (AWG 14...AWG 10)
Type Non-fusible disconnect switch;Receptacle Switch;Interlocked
UNSPSC 39122218
UPC 78590177525
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V AC;250 V DC;600 VAC 3-Phase/250 VDC
Width 10.5 in
Wire Configuration 4-wire NULL
Wire Size AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper NULL
Wire Type AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
Wiring Configuration 4-wire

Resources

CatalogNumber HU362WA
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
