| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | HU363DF |
| AC Voltage Rating | 600 Volt |
| Additional Information | RoHS/REACH Compliant; Wire Size 14 to 1/0 AWG (Copper), 12 to 1/0 AWG (Aluminum); Mounting Type Surface |
| Amperage Rating | 100 A |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Square D |
| Catalog Number | HU363DF |
| Commerce Sector | Construction Materials |
| Commodity Code | 31520 |
| Commodity Description | Non-Fusible Special Application Safety Switches |
| Connection | LUGS |
| Country Of Origin | Mexico NULL |
| CountryOfOrigin | US |
| Current Rating | 100 A;100 Amp |
| DC Voltage Rating | 600 Volt |
| DDCATEGORY | 1713 |
| Depth | 12.0 in |
| Device Application | Heavy application |
| Device Composition | None |
| Directory | CIS |
| Disconnect Type | Non-fusible disconnect NULL |
| Disconnector Device Type | Non-fusible disconnect |
| Duty Rating | Heavy duty NULL |
| Electrical Connection | Lugs |
| Enclosure | NEMA 4X |
| Enclosure Material | Fiberglass Reinforced Polyester |
| Enclosure Rating | NEMA 4X fiberglass reinforced polyester NULL |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Factory Installed Neutral | None NULL |
| Families | 1713 |
| Family Description | Non-Fusible Special Application Safety Switches |
| Fuse Provision | Non-Fusible |
| Height | 24.78 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Safety switch, heavy duty, non fusible, 100A, 3 poles, 100 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester;SWITCH NONFUSIBLE HD |
| Item Number | 62791 |
| Line Rated Current Metric | 100.0 A |
| Long Description | SAFETY SWITCH, HEAVY DUTY, SINGLE THROW TYPE; 13.7 INCH WIDTH X 12 INCH DEPTH X 24.78 INCH HEIGHT SIZE; FIBERGLASS REINFORCED POLYESTER ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 4X ENCLOSURE; 100 AMP CURRENT RATING |
| MSDS Form Number | * |
| Mounting | SURFACE |
| Mounting Type | Surface |
| Nema Degree Of Protection | NEMA 4X fiberglass reinforced polyester |
| Network Number Of Phases | 3 phase |
| Neutral Type | No |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 3 phase | |
| Power Rating | 75 HP at 480 Volt AC 3-Phase, 100 HP at 600 Volt AC 3-Phase, 50 HP at 600 Volt DC |
| Product | Single Throw Safety Switch NULL |

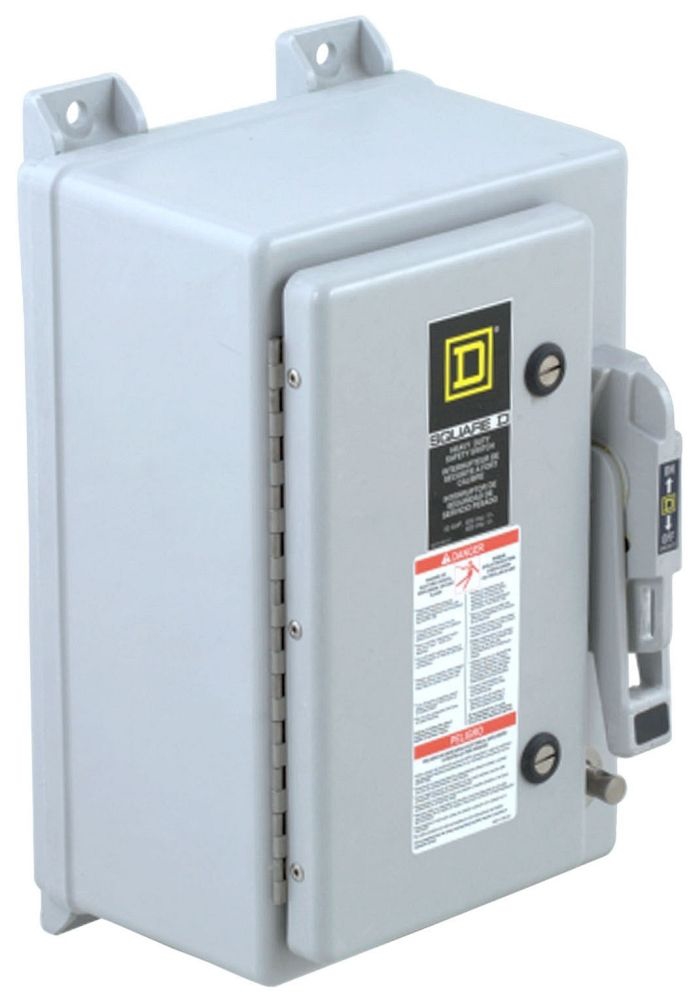

| Product Description | Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X, fiberglass reinforced polyester |
| Product Keywords | WEBREADY |
| Product Name | Non fusible switch |
| Product Or Component Type | Single Throw Safety Switch |
| Product Weight | 39.99 lb |
| ProductLine | SQD |
| Series Name | Heavy duty |
| Size | 12 IN,13.7 IN,24.78 IN;13.7 Inch Width x 12 Inch Depth x 24.78 Inch Height |
| Special Features | HEAVY DUTY |
| Standard | UL 98 LISTED |
| Type | SAFETY SWITCH;Heavy Duty, Single Throw |
| UNSPSC | 39122218 |
| UPC | 78590162791 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600 VAC//VDC |
| Width | 13.7 in |
| Wire Size | AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper NULL |
| Wiring Configuration | 3-wire |
