SQD HU363DX

Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X krydonTM fiberglass polyester

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X krydonTM fiberglass polyester

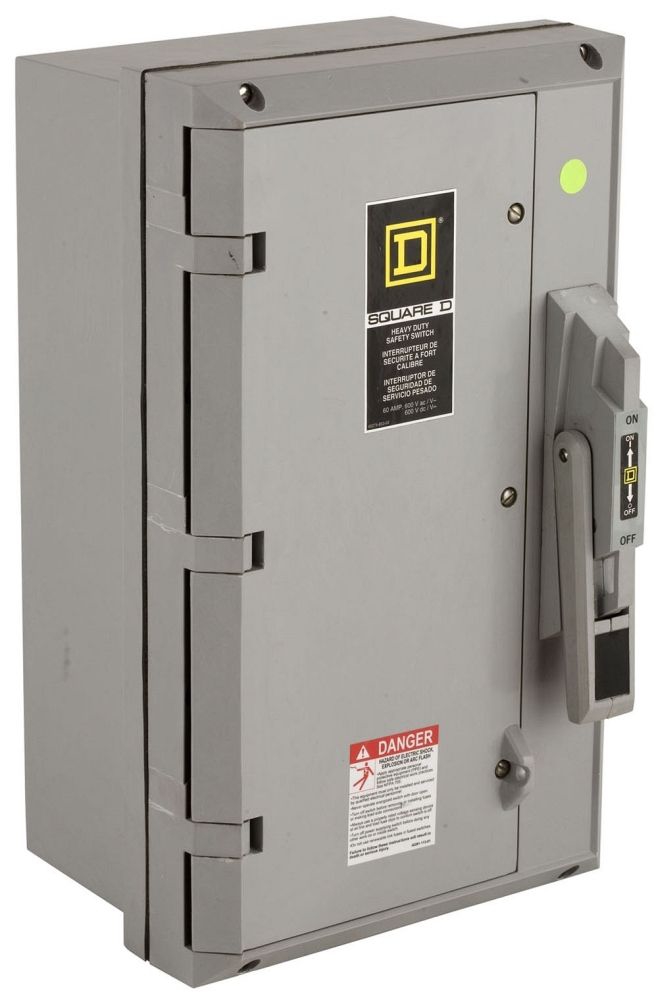

Mouse over image to zoom, click to enlarge

Description:
Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X krydonTM fiberglass polyester

UPC:  78590154913

Part Number: HU363DX

UNSPSC: 39122218

Status:  UNKNOWN

Your Price:  $8,438.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HU363DX
AC Voltage Rating 600 Volt
Additional Information RoHS/REACH Compliant; Wire Size 14 to 1/0 AWG (Copper), 12 to 1/0 AWG (Aluminum); Mounting Type Surface
Amperage Rating 100 A
Application Heavy application
Approval UL
Base Price 0.0000
Brand Name Square D
Catalog Number HU363DX
Commerce Sector Construction Materials
Commodity Code 31520
Commodity Description Non-Fusible Special Application Safety Switches
Connection Lugs
Country Of Origin Mexico
CountryOfOrigin US
Current Rating 100 A;100 Amp
DC Voltage Rating 600 Volt
DDCATEGORY 1713
Depth 8.6 in
Device Composition None
Directory CIS
Duty Rating Heavy duty
Enclosure NEMA 4X
Enclosure Material Krydon
Enclosure Rating NEMA 4X Krydon - compression molded fiberglass reinforced polyester
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Factory Installed Neutral None
Families 1713
Family Description Non-Fusible Special Application Safety Switches
Fuse Provision Non-Fusible
Height 25.25 in
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, heavy duty, non fusible, 100A, 3 poles, 100 hp, 600 VAC/DC, NEMA 4X krydonTM fiberglass polyester;SW NOT FUSIBLE HD 100A
Item Number 54913
Line Rated Current Metric 100.0 A
Long Description SAFETY SWITCH, HEAVY DUTY, SINGLE THROW TYPE; 11.4 INCH WIDTH X 8.6 INCH DEPTH X 25.25 INCH HEIGHT SIZE; KRYDON ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 4X ENCLOSURE; 100 AMP CURRENT RATING
MSDS Form Number *
Maximum Load 4X
Mounting Surface
Nema Degree Of Protection NEMA 4X Krydon - compression molded fiberglass reinforced polyester
Net Weight Metric 17.2 kg
Network Number Of Phases 3 phase
Neutral Type No
Noun *
Number Of Poles 3
Number Of Wires 3
Phase 3 phase
Power Rating 75 HP at 480 Volt AC 3-Phase, 100 HP at 600 Volt AC 3-Phase, 50 HP at 600 Volt DC
Product Description Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X krydonTM fiberglass polyester
Product Keywords WEBREADY
Product Name Non fusible switch
Product Weight 37.92 lb
ProductLine SQD
Rated Operational Voltage 600 V AC/DC
Series Name Heavy duty
Size 8.6 in;11.4 Inch Width x 8.6 Inch Depth x 25.25 Inch Height
Special Features HEAVY DUTY
Tightening Torque 50-50 lbf.in (AWG 1...AWG 3/0);45-45 lbf.in (AWG 6...AWG 4);40-40 lbf.in 8.367-8.367 mm (AWG 8);35-35 lbf.in 2.06-5.261 mm (AWG 14...AWG 10)
Type Non-fusible disconnect;Single Throw Safety Switch;Heavy Duty, Single Throw
UNSPSC 39122218
UPC 78590154913
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC//VDC
Width 11.4 in
Wire Size AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
Wiring Configuration 3-wire

Resources

CatalogNumber HU363DX
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
