SQD HU365DS

Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350HP, 600V AC/DC, NEMA 4, 4X, 5, 304 stainless steel

Page Loading...
SQUARE-D/SCHNEIDER
Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350HP, 600V AC/DC, NEMA 4, 4X, 5, 304 stainless steel

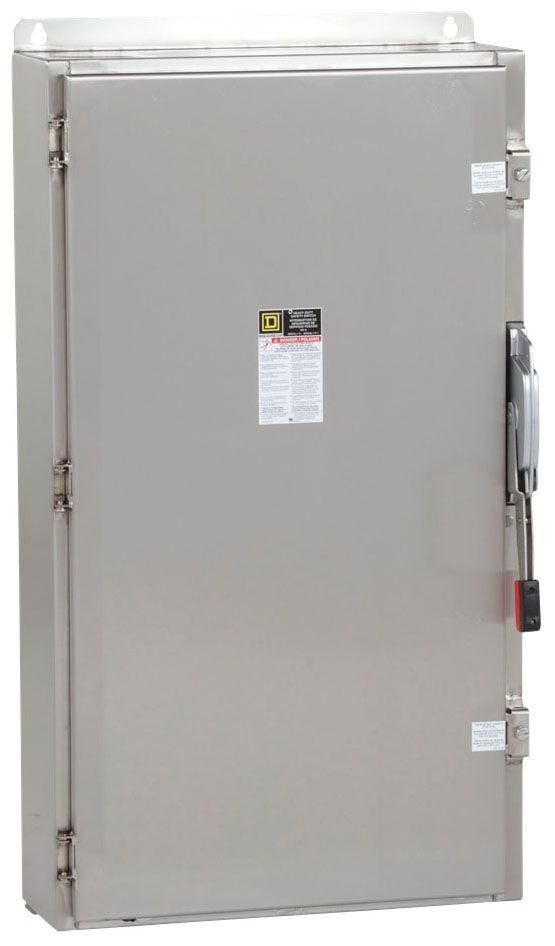

Mouse over image to zoom, click to enlarge

Description:
Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350HP, 600V AC/DC, NEMA 4, 4X, 5, 304 stainless steel

UPC:  78590119597

Part Number: HU365DS

UNSPSC: 39122218

Status:  UNKNOWN

Your Price:  $14,294.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo HU365DS
AC Voltage Rating 600 Volt
Additional Information RoHS/REACH Compliant; Wire Size 1/0 AWG to 750 KCMIL (Copper/Aluminum); Mounting Type Surface
Amperage Rating 400 A
Application HEAVY DUTY
Approval UL
Awg Gauge AWG 1/0...750 kcmil copper or aluminium |
Base Price 0.0000
Brand Name Square D
Catalog Number HU365DS
Commerce Sector Construction Materials
Commodity Code 31320
Commodity Description Non-Fusible Heavy Duty Safety Switches
Connection LUGS
Country Of Origin Mexico NULL
CountryOfOrigin US
Current Rating 400 A;400 Amp
DC Voltage Rating 600 Volt
DDCATEGORY 1707
Depth 10.13 in
Device Application Heavy application
Device Composition None
Device Mounting Surface
Directory CIS
Disconnect Type Non-fusible disconnect NULL
Duty Rating Heavy duty NULL
Electrical Connection Lugs
Enclosure NEMA 4/4X/5 STAINLESS STEEL 304;NEMA 4/4X/5
Enclosure Material 304 Stainless Steel
Enclosure Rating NEMA 4/4X/5 stainless steel 304 NULL
Environmental Conditions RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Factory Installed Neutral None NULL
Families 1707
Family Description Non-Fusible Heavy Duty Safety Switches
Fuse Provision Non-Fusible
Height 46.25 in
Image Location * Image
Industry ELX
InvoiceDescription Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 poles, 350hp, 600VAC/DC, Type 4, 4X, 5, 304 stainless steel;SWITCH NONFUSIBLE HD
Item Number 19597
Long Description SAFETY SWITCH, HEAVY DUTY, SINGLE THROW TYPE; 26.25 INCH WIDTH X 10.13 INCH DEPTH X 46.25 INCH HEIGHT SIZE; 304 STAINLESS STEEL ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 4/4X/5 ENCLOSURE; 400 AMP CURRENT RATING
MSDS Form Number *
Material 304 Stainless Steel
Mounting SURFACE
Mounting Type Surface
Network Number Of Phases 3 phase
Neutral Type No
Noun *
Number Of Poles 3
Number Of Wires 3
Phase 3 phase
Power Rating 125 HP at 240 Volt AC 3-Phase, 250 HP at 480 Volt AC 3-Phase, 350 HP at 600 Volt AC 3-Phase, 50 HP at 250 Volt DC, 50 HP at 600 Volt DC
Product Single Throw Safety Switch NULL
Product Description Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350HP, 600V AC/DC, NEMA 4, 4X, 5, 304 stainless steel
Product Keywords WEBREADY
Product Name Non fusible switch
Product Weight 169.98 lb
ProductLine SQD
Rated Operational Voltage 600 V AC/DC
Size 10.13 IN,26.25 IN,46.25 IN;26.25 Inch Width x 10.13 Inch Depth x 46.25 Inch Height
Special Features LUGS
Standard UL LISTED FILE E2875
Tightening Torque 550-550 lbf.in (AWG 1/0...750 kcmil)
Type SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT;Heavy Duty, Single Throw
UNSPSC 39122218
UPC 78590119597
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC//VDC
Width 26.25 in
Wire Size AWG 1/0...750 kcmil copper or aluminium NULL
Wiring Configuration 3-wire

Resources

CatalogNumber HU365DS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
