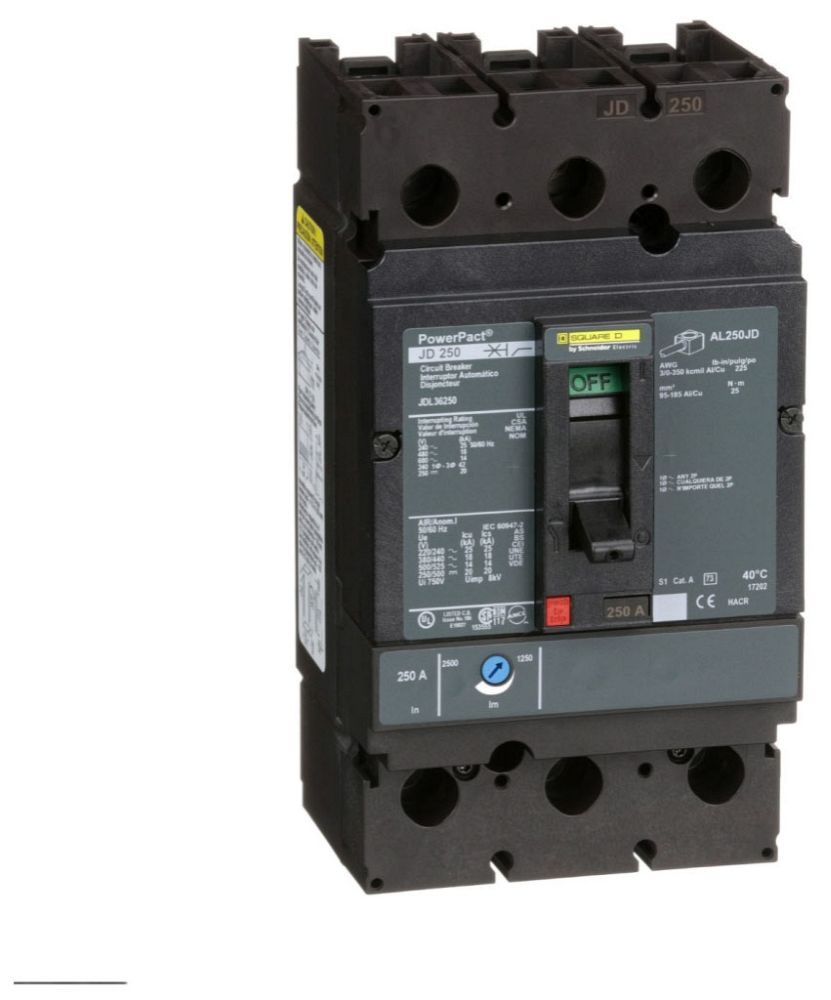

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | JDL36250 |
| Actuator | Toggle |
| Additional Information | RoHS/REACH Compliant; Trip Setting 1250 Amp (Low), 2500 Amp (High); Mounting Type Unit; Control Type Toggle; Terminal Wire Size 3/0 AWG to 350 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Operation Ambient Air Temperature Rating 28 to 15 |
| Amperage Rating | 250 A |
| Application | Distribution;HACR rated |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Brand Name | SQUARE D BY SCHNEIDER ELECTRIC;PowerPact[TM] |
| Breaking Capacity Code | D |
| Catalog Number | JDL36250 |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Connection | Lugs line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Continuous Current Rating | 80.0 |
| CountryOfOrigin | MX |
| Current Rating | 250 Amp |
| DDCATEGORY | 1806 |
| Depth | 5 in |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | J-FRAME |
| Frame Type | J |
| Frequency Rating | 50/60 Hz |
| Height | 0.000 |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 25KA@240VAC - 18KA@480VAC - 14KA@600VAC - 20KA@250VDC |
| Interrupting Rating | 14 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC |
| InvoiceDescription | Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%;MOLDED CASE CIRCUIT |
| Item Number | 83994 |
| Length | 86 MM |
| Local Signalling | Switched off (OFF) 1 trip indicator green) |
| Long Description | MOLDED CASE CIRCUIT BREAKER, THERMAL MAGNETIC, CURRENT LIMITING, ADJUSTABLE TYPE; 4.09 INCH WIDTH X 3.39 INCH DEPTH X 7.52 INCH HEIGHT SIZE; 600 VOLT MAX. AC VOLTAGE RATING; 250 VOLT MAX. DC VOLTAGE RATING; UL, CSA, CE APPROVAL |
| Long Time Pick Up Adjust Rng | 0.25...1 x In |
| MSDS Form Number | * |
| Magnetic Tripping Current Metric | 2500.0 A |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Model | JD |
| Mounting Mode | Unit mount lug) |
| Mounting Support | Lug |
| Net Weight Metric | 2.4 kg |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Slots | 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in) |
| Operating Temperature | -13F AND 158F (-25 C AND +70 C) |
| Product Description | Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| Product Or Component Type | Circuit breaker NULL |
| ProductLine | SQD |
| Range | PowerPact |
| Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 | |
| Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-2;18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;14 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2 |
| Size | 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height |
| Special Features | Modbus;Ethernet;Overload protection;short-circuit protection |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | PowerPact J |
| Terminal Identifier | AL250JD |
| Terminal Type | Line/Load Lug |
| Tightening Torque | 25-25 N.m 95-185 mm (AWG 3/0...350 kcmil) |
| Trip Range | LOW: 1250A - HIGH: 2500A |
| Trip Type | Thermal-magnetic |
| Type | Circuit breaker;Thermal Magnetic, Current Limiting, Adjustable |
| UNSPSC | 39121616 |
| UPC | 78590183994 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 600//250 VAC//VDC;600 Volt AC 50/60 Hertz, 250 Volt DC |
