SQD NQ442L2C

Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Page Loading...
SQUARE-D/SCHNEIDER

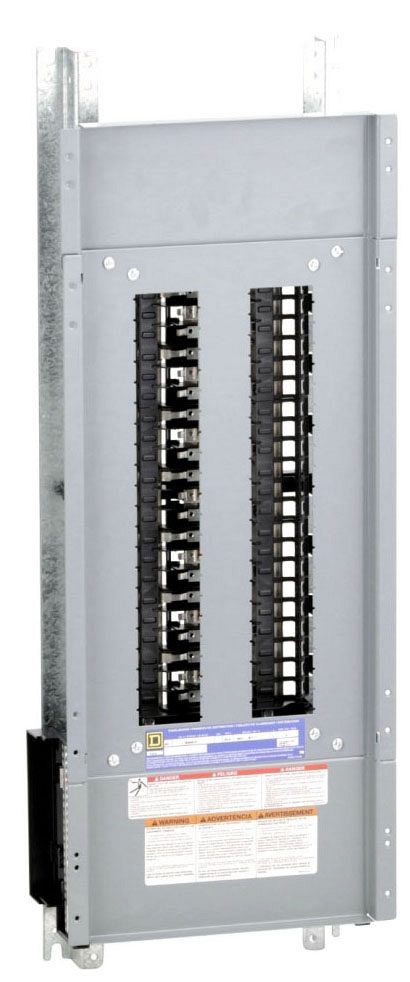

Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Mouse over image to zoom, click to enlarge

Description:
Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

UPC:  78590150787

Part Number: NQ442L2C

UNSPSC: 39121112

Status:  UNKNOWN

Your Price:  $1,551.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo NQ442L2C
Amperage 225 A
Amperage Rating 225 A
Application NQ PANELBOARDS;Lighting/Distribution
Base Price 0.0000
Branch Breaker Mounting Bolt-On
Branch Breaker Type QOB
Branch Circuit Breaker Type QOB;QOB-VH;QHB
Brand Name Square D
Bus Material Copper
Busbar Material Copper
Catalog Number NQ442L2C
Circuit Breaker Type QOB;QOB-VH;QHB
Circuit Configuration 3-Phase 4-Wire
Commerce Sector Construction Materials
Commodity Code 34132
Commodity Description Three Phase Main Lug Plug-In Lighting Panelboard Interiors
Connections Terminals Lug line AWG 6...350 kcmil aluminium;lug neutral AWG 6...350 kcmil aluminium
CountryOfOrigin MX
Current Rating 225 Ampere
DDCATEGORY 1876
Directory CIS
Enclosure Nominal Depth 5.75 in NEMA 1;6.5 in NEMA 3R/5/12
Enclosure Nominal Height 38.0 in
Enclosure Nominal Width 20.0 in
Enclosure Trim Size 20 Inch W x 5.75 Inch D x 38 Inch H/20 Inch W x 5.75 Inch D x 50 Inch H (NEMA 1), 20 Inch W x 6.5 Inch D x 38 Inch H/20 Inch W x 6.5 Inch D x 50 Inch H (NEMA 3R/5/12)
Families 1876
Family Description Three Phase Main Lug Plug-In Lighting Panelboard Interiors
Height 33.0 in
Image Location * Image
In Rated Current 225 A
Industry ELX
InvoiceDescription Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC;PNLBD INT NQ 225A MLO
Item Number 50787
Iu Rated Interrupted Current 10kA;22kA;65kA
Line Rated Current Metric 225.0 A
Load Center Type Main lugs
Long Description PANELBOARD INTERIOR, MAIN LUG/MAIN BREAKER TYPE; 42 MAX. NUMBER OF CIRCUITS; LIGHTING/DISTRIBUTION APPLICATION; 240 VAC, 48 VDC VOLTAGE RATING; 225 AMPERE CURRENT RATING; 3-PHASE 4-WIRE CIRCUIT CONFIGURATION; COPPER BUS MATERIAL
MSDS Form Number *
Main Breaker Type QB/QD/QJ/QL
Material Copper
Maximum Number Of Circuits 42
Model Series NQ
Mounting PANEL
Net Weight Metric 8.78 kg
Noun *
Number Of Feeders 42
Number Of Spaces 42.0
Panelboard Type Main lugs
Phase 3
Product Description Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Product Keywords WEBREADY
Product Name Low voltage alternating and direct current AC DC panelboard
Product Weight 19.36 lb
ProductLine SQD
Rated Interrupted Current Metric 10.0 kA
Rated Operational Voltage 240 V AC;48 V DC
Size 38 in
Standard UL 67
Sub Brand NQ
Tightening Torque 4.52-5.65 N.m 13.30-67.43 mm (AWG 6...AWG 2/0);11.3-11.3 N.m 13.30-67.43 mm (AWG 6...AWG 2/0);31.07-31.07 N.m 13.30-177.3 mm (AWG 6...350 kcmil);31.07-31.07 N.m 13.30-126.7 mm (AWG 6...250 kcmil);31.07-31.07 N.m 107.2-152 mm (AWG 4...300 kcmil)
Type Interiors;4-wire;Main Lug/Main Breaker
UNSPSC 39121112
UPC 78590150787
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 240 V AC;48 V DC;240 VAC, 48 VDC
Width 10.44 in

Resources

CatalogNumber NQ442L2C
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
