SQD PK12GTA

Load center accessory, QO/Homeline, ground bar kit, 12 terminals

Page Loading...
SQUARE-D/SCHNEIDER

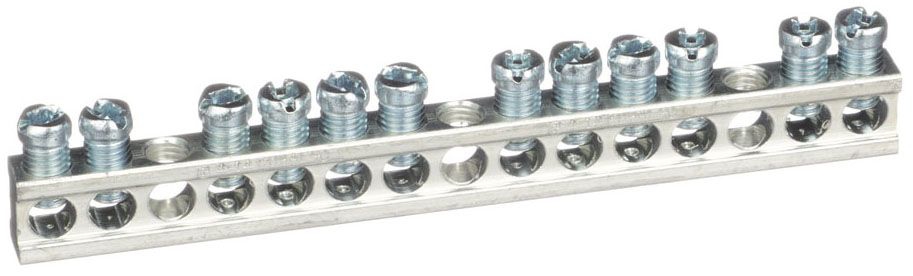

Load center accessory, QO/Homeline, ground bar kit, 12 terminals

Mouse over image to zoom, click to enlarge

Description:
Load center accessory, QO/Homeline, ground bar kit, 12 terminals

UPC:  78590102640

Part Number: PK12GTA

UNSPSC: 39121101

Status:  UNKNOWN

Your Price:  $15.80 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo PK12GTA
Additional Information RoHS Compliant; Mounting Type Top; Number of Mounting Screw 3
Application LOAD CENTERS
Bar Length 4.69 in
Bar Length Metric 119.0 mm
Base Price 0.0000
Brand Name QO
Cable Size AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium
Catalog Number PK12GTA
Circuit Breaker Type PK
Commerce Sector Construction Materials
Commodity Code 34190
Commodity Description Lighting Panelboard Accessories
Conductor Material Copper/Aluminum
CountryOfOrigin US
DDCATEGORY 1888
Depth 0.312 in
Device Mounting Direct mounting back of enclosure
Directory CIS
Families 1888
Family Description Lighting Panelboard Accessories
Height 0.437 in
Image Location * Image
Industry ELX
InvoiceDescription Load center accessory, QO/Homeline, ground bar kit, 12 terminals;LOAD CENTER EQUIPMENT
Item Number 02640
Length 4.7 Inch
Length Of Segment 3.15 in
Long Description GROUND BAR KIT, 4.7 INCH; QO AND HOMELINE CIRCUIT BREAKER AND LOAD CENTER USED ON; COPPER/ALUMINUM CONDUCTOR MATERIAL; 12-TERMINAL (1) 14 TO 4 AWG OR (2) 14 TO 12 AWG (COPPER), (1) 12 TO 4 AWG OR (2) 12 TO 10 AWG (ALUMINUM) TERMINAL SIZE; ROHS COMPLIANT
MSDS Form Number *
Maximum Length Of Segment Metric 80.0 mm
Model PK
Noun *
Number Of Connectors 12.0
Number Of Contacts 12
Product Description Load center accessory, QO/Homeline, ground bar kit, 12 terminals
Product Keywords WEBREADY
Product Name Load centers
ProductLine SQD
Provided Equipment 2 screw
Special Features 2 SCREW
Sub Brand QO
Terminal Size 12-Terminal (1) 14 to 4 AWG or (2) 14 to 12 AWG (Copper), (1) 12 to 4 AWG or (2) 12 to 10 AWG (Aluminum)
Tightening Torque 30 lb.in;mounting screw 30 lb.in; 20 lb.in, AWG 14...AWG 10, copper; 20 lb.in, AWG 12...AWG 10, aluminium; 35 lb.in, AWG 6...AWG 4; 25 lb.in, AWG 8; 25 lb.in, AWG 14...AWG 12, copper; 25 lb.in, AWG 12...AWG 10, aluminium
Type Bar
UNSPSC 39121101
UPC 78590102640
Used On QO and Homeline Circuit Breaker and Load Center
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Wire Size AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium
