SQD PK18GTA

Load center accessory, QO/Homeline, ground bar kit, 18 terminals

Page Loading...
SQUARE-D/SCHNEIDER

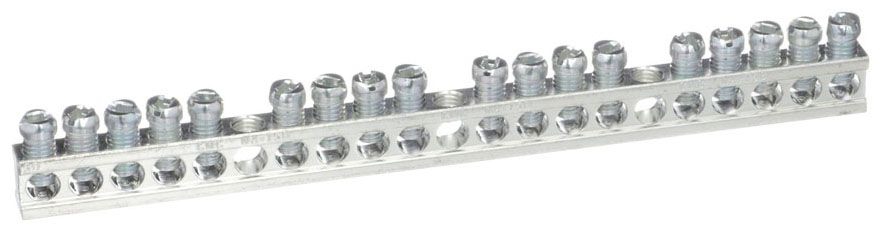

Load center accessory, QO/Homeline, ground bar kit, 18 terminals

Mouse over image to zoom, click to enlarge

Description:
Load center accessory, QO/Homeline, ground bar kit, 18 terminals

UPC:  78590102642

Part Number: PK18GTA

UNSPSC: 39121101

Status:  UNKNOWN

Your Price:  $18.80 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo PK18GTA
Additional Information Current Rating 225 Ampere; Number of Mounting Screws 2
Application LOAD CENTERS
Bar Length 6.57 in
Bar Length Metric 167.0 mm
Base Price 0.0000
Brand Name QO
Cable Size AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium
Catalog Number PK18GTA
Circuit Breaker Type PK
Commerce Sector Construction Materials
Commodity Code 34190
Commodity Description Lighting Panelboard Accessories
Conductor Material Aluminum/Copper
CountryOfOrigin US
DDCATEGORY 1888
Depth 0.312 in
Device Mounting Direct mounting back of enclosure
Directory CIS
Families 1888
Family Description Lighting Panelboard Accessories
Height 0.437 in
Image Location * Image
Industry ELX
InvoiceDescription Load center accessory, QO/Homeline, ground bar kit, 18 terminals;LOAD CENTER EQUIPMENT
Item Number 02642
Length 6.56 Inch
Length Of Segment 3.15 in
Long Description GROUND BAR KIT, 6.56 INCH; QO CIRCUIT BREAKER LOAD CENTER USED ON; ALUMINUM/COPPER CONDUCTOR MATERIAL; 18 TERMINAL (1) 14 TO 4 AWG OR (2) 14 TO 12 AWG (COPPER), (1) 12 TO 4 AWG OR (2) 12 TO 10 AWG (ALUMINUM) TERMINAL SIZE; CURRENT RATING 225 AMPERE
MSDS Form Number *
Maximum Length Of Segment Metric 80.0 mm
Noun *
Number Of Connectors 18.0
Number Of Contacts 18
Product Description Load center accessory, QO/Homeline, ground bar kit, 18 terminals
Product Keywords WEBREADY
Product Name Load centers
ProductLine SQD
Provided Equipment 2 screw
Special Features 2 SCREW
Sub Brand QO
Terminal Size 18 Terminal ((1) 14 to 4 AWG or (2) 14 to 12 AWG (Copper), (1) 12 to 4 AWG or (2) 12 to 10 AWG (Aluminum))
Tightening Torque 30 lb.in;mounting screw 30 lb.in; 20 lb.in, AWG 14...AWG 10, copper; 20 lb.in, AWG 12...AWG 10, aluminium; 35 lb.in, AWG 6...AWG 4; 25 lb.in, AWG 8; 25 lb.in, AWG 14...AWG 12, copper; 25 lb.in, AWG 12...AWG 10, aluminium
Type Bar
UNSPSC 39121101
UPC 78590102642
Used On QO Circuit Breaker Load Center
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Wire Size AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium NULL

Resources

CatalogNumber PK18GTA
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
