SQD PQ3603G

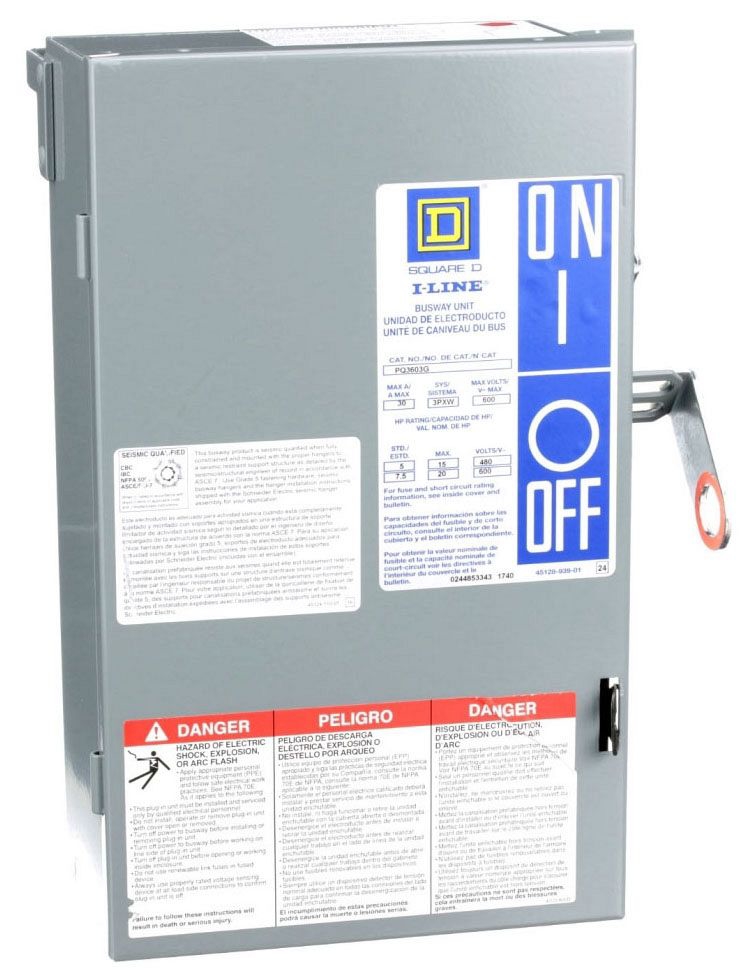

Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection

Page Loading...
SQUARE-D/SCHNEIDER
Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection

Mouse over image to zoom, click to enlarge

Description:
Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection

UPC:  78590126390

Part Number: PQ3603G

UNSPSC: 39131701

Status:  UNKNOWN

Your Price:  $1,042.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo PQ3603G
Application 30 A
Approval UL 857, CSA C22.2
Base Price 0.0000
Brand Name Square D;I-Line[TM]
Busbar Description Ground
Catalog Number PQ3603G
Certifications UL
Circuit Configuration 3 Phase 4 Wire
Commerce Sector Construction Materials
Commodity Code 37150
Commodity Description Busway Fusible Plug Units
CountryOfOrigin MX
Current Rating 30 Amp
DDCATEGORY 2002
Directory CIS
Enclosure Material Aluminum
Families 2002
Family Description Busway Fusible Plug Units
Fixing Mode Plug-in
Fuse Type H;Class J/H
Ground Type Integral
Ie Rated Operational Current 30 A
Image Location * Image
Industry ELX
Interrupting Rating 200 Kiloamp
InvoiceDescription Section, I-Line Busway, 600VAC, 30A, 3 pole, plug-in, H;BUSWAY FS PLUG-IN 30A
Item Number 26390
Long Description FUSIBLE PLUG IN UNIT, I-LINE II BUSWAY USED ON; ALUMINUM ENCLOSURE MATERIAL; UL 857, CSA C22.2 APPROVAL; 600 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; 200 KILOAMP INTERRUPTING RATING; INTEGRAL; 3 POLE(S); 3 PHASE 4 WIRE CIRCUIT CONFIGURATION
MSDS Form Number *
Model PQ
NEMA Rating 600VAC
Neutral Type No
Noun *
Number Of Poles 3
Phase 3
Product Description Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection
Product Keywords WEBREADY
Product Name Busway
ProductLine SQD
Rated Operational Current Metric 30.0 A
Rated Operational Voltage 600 V AC
Standard UL-CSA
Sub Brand I-LINE II
Type Section
UNSPSC 39131701
UPC 78590126390
Ue Rated Operational Voltage 600 V AC
Used On I-Line II Busway
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 Volt AC
