SQD QO230

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in

Page Loading...
SQUARE-D/SCHNEIDER
Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in

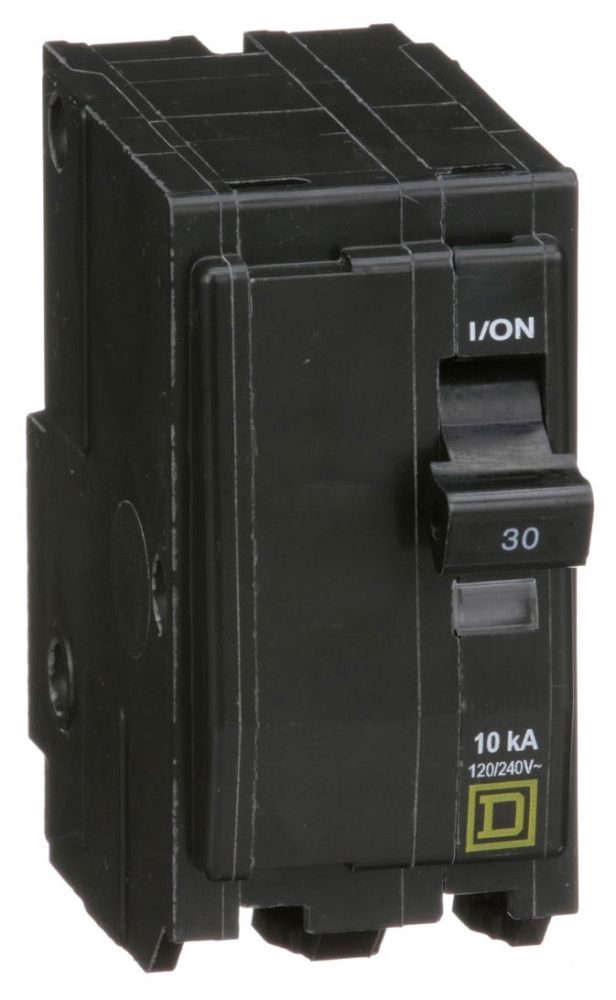

Mouse over image to zoom, click to enlarge

Description:
Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in

UPC:  78590140042

Part Number: QO230

UNSPSC: 39121603

Status:  UNKNOWN

Your Price:  $67.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo QO230
Additional Information RoHS/REACH Compliant; Ambient Rating 104 Deg F; Tightening Torque Rating 44.25 Inch-Pound
Amperage Rating 30 A
Application HACR rated
Approval UL, CSA
Base Price 0.0000
Brand Name QO;QO[TM], Homeline[TM]
Breaking Capacity 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz; 5 kA 48 V DC
Catalog Number QO230
Circuit Breaker Type Standard
Commerce Sector Construction Materials
Commodity Code 32112
Commodity Description 2 Pole Standard Trip Plug-In Circuit Breakers
Connection Pressure plate;AWG 14...AWG 8 copper or aluminium
CountryOfOrigin MX
Current Rating 30 Amp
DDCATEGORY 1726
Depth Metric 74.0 mm
Directory CIS
Families 1726
Family Description 2 Pole Standard Trip Plug-In Circuit Breakers
Height 0.000
Image Location * Image
Industry ELX
Interrupt Rating 10kA 120/240 V AC 50/60 Hz; 10kA 120 V AC 50/60 Hz; 5kA 48 V DC
Interrupting Rating 5/10 Kiloamp
InvoiceDescription Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in mount;MINIATURE CIRCUIT BREAKER
Item Number 40042
Length 2.91 in
Line Rated Current Metric 30.0 A
Long Description MINIATURE CIRCUIT BREAKER, COMMON TRIP, MINIATURE, STANDARD TYPE; 1.5 INCH WIDTH X 2.91 INCH DEPTH X 2.99 INCH HEIGHT SIZE; QO LOAD CENTER, NQ/NQOD PANELBOARD/OEM INTERIOR/SPEED-D SWITCHBOARD DISTRIBUTION PANEL USED ON
MSDS Form Number *
Model QO
Mounting Plug-In
Mounting Mode Plug-in
Mounting Type Plug-in NULL
Net Weight Metric 0.249 kg
Noun *
Number Of Panel Spaces 2 NULL
Number Of Poles 2
Number Of Spaces Required 2.0
Operating Temperature 40 AC
Phase 1
Product Description Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in
Product Keywords WEBREADY
Product Name Miniature circuit breakers
Product Weight 0.55 lb
ProductLine SQD
Size 1.5 Inch Width x 2.91 Inch Depth x 2.99 Inch Height
Special Features STANDARD PLUG-ON
Standard UL LISTED - CSA CERTIFIED
Sub Brand QO
Terminal Type Pressure Plate
Tightening Torque 5-5 N.m 10-25 mm (AWG 8...AWG 2)
Type Miniature circuit-breaker;Common Trip, Miniature, Standard
UNSPSC 39121603
UPC 78590140042
Used On QO Load Center, NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 120/240 V AC;120 V AC;48 V DC;120/240 Volt AC 50/60 Hertz, 48 Volt DC
Wire Size AWG 14...AWG 8 copper or aluminium;14 to 8 AWG (Copper/Aluminum)

Resources

CatalogNumber QO230
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
