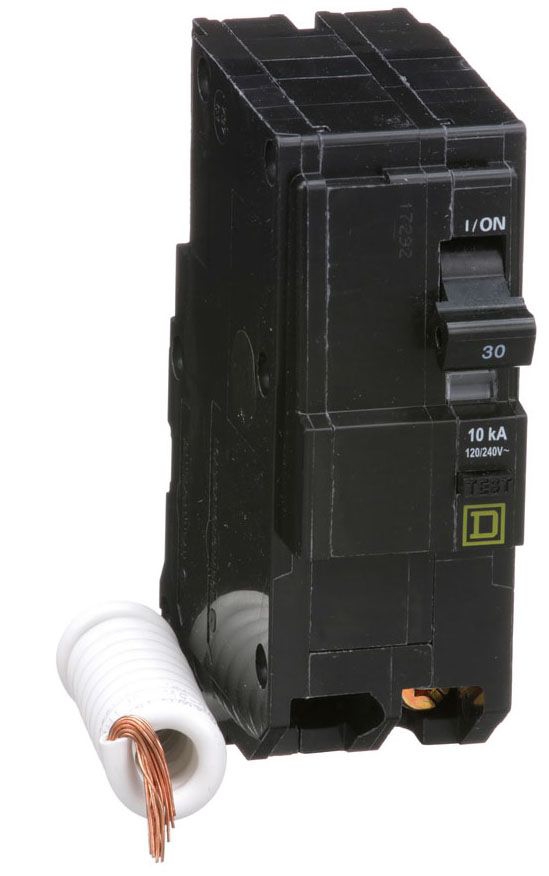

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | QO230EPD |
| Additional Information | RoHS Compliant; Application Provides Overload and Short Circuit Protection |
| Amperage Rating | 30 A |
| Application | Not rated |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | QO;QO[TM] |
| Breaking Capacity | 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz |
| Catalog Number | QO230EPD |
| Circuit Breaker Type | Ground fault protecting class B 30 mA |
| Commerce Sector | Construction Materials |
| Commodity Code | 32142 |
| Commodity Description | 2 Pole Equipment Protection Epd Plug-In Circuit Breakers |
| Connection | Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium |
| CountryOfOrigin | MX |
| Current Rating | 30 Amp |
| DDCATEGORY | 1740 |
| Depth Metric | 74.0 mm |
| Directory | CIS |
| Families | 1740 |
| Family Description | 2 Pole Equipment Protection Epd Plug-In Circuit Breakers |
| Height | 0.000 |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10kA 120/240 V AC 50/60 Hz; 10kA 120 V AC 50/60 Hz |
| Interrupting Rating | 10 Kiloamp |
| InvoiceDescription | Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, 30mA grd fault B, plug in mount;MINIATURE CIRCUIT |
| Item Number | 12075 |
| Length | 2.91 in |
| Line Rated Current Metric | 30.0 A |
| Long Description | MINIATURE CIRCUIT BREAKER, MINIATURE, THERMAL MAGNETIC, EQUIPMENT PROTECTOR, COMMON TRIP TYPE; 1.5 INCH WIDTH X 2.91 INCH DEPTH X 4.12 INCH HEIGHT SIZE; QO LOADCENTER, NQ PANELBOARD, NQ OEM INTERIOR/SPEED-D SWITCHBOARD DISTRIBUTION PANEL USED ON |
| MSDS Form Number | * |
| Model | QO-EPD |
| Mounting | Plug-In |
| Mounting Mode | Plug-in |
| Mounting Type | Plug-in NULL |
| Net Weight Metric | 0.431 kg |
| Noun | * |
| Number Of Panel Spaces | 2 NULL |
| Number Of Poles | 2 |
| Number Of Spaces Required | 2.0 |
| Operating Temperature | 40 AC |
| Phase | 1 |
| Product Description | Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA] |
| Product Keywords | WEBREADY |
| Product Name | Miniature circuit breakers |
| Product Weight | 0.95 lb |
| ProductLine | SQD |
| Size | 1.5 Inch Width x 2.91 Inch Depth x 4.12 Inch Height |
| Special Features | GROUND FAULT PROTECTING (CLASS B 30MA) PLUG-ON |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Terminal Type | Pressure Plate |
| Tightening Torque | 4.6-4.6 N.m 2.5-10 mm (AWG 16...AWG 14);4.6-4.6 N.m 4-20 mm (AWG 12...AWG 4) |
| Trip Sensitivity | 30 Milliamp |
| Type | Miniature circuit-breaker;Miniature, Thermal Magnetic, Equipment Protector, Common Trip |
| UNSPSC | 39121603 |
| UPC | 78590112075 |
| Used On | QO Loadcenter, NQ Panelboard, NQ OEM Interior/Speed-D Switchboard Distribution Panel |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 120/240 V AC;120 V AC;120/240 Volt AC |
| Wire Size | AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium NULL;12 to 8 AWG (Aluminum), 14 to 8 AWG (Copper) |
