| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | QO24L70RB |
| Amperage | 70 A |
| Amperage Rating | 70 A |
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| Approval | UL |
| Base Price | 0.0000 |
| Box Number | 1R NULL |
| Brand Name | QO |
| Breaker Mounting | Plug-On |
| Bus Material | Tin Plated Aluminum |
| Busbar Material | Tin plated aluminium busbar |
| Cable Size | AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper |
| Catalog Number | QO24L70RB |
| Circuit Configuration | 1-Phase 3-Wire |
| Commerce Sector | Construction Materials |
| Commodity Code | 33110 |
| Commodity Description | Single Phase Main Lug Load Centers |
| CountryOfOrigin | MX |
| Cover Finish | Baked enamel Gray NULL |
| Cover Type | Surface cover;Surface |
| Current Rating | 70 Amp |
| DDCATEGORY | 1852 |
| Directory | CIS |
| Electrical Connection | Lugs |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;1R |
| Enclosure Material | Welded galvannealed steel NULL |
| Enclosure Size Designation | 1R |
| Enclosure Type | Weatherproof enclosure;NEMA 3R, Outdoor, Rainproof |
| Families | 1852 |
| Family Description | Single Phase Main Lug Load Centers |
| Grounding Bar | Grounding bar (ordered separately) NULL |
| Height | 9.37 in |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 65 KA |
| Interrupting Rating | 10 Kiloamp |
| InvoiceDescription | Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R, UL;LOAD CENTER QO MLO |
| Item Number | 78513 |
| Load Center Type | Fixed Mains (lugs) |
| Long Description | LOADCENTER BOX AND INTERIOR, MAIN LUG TYPE; 4.88 INCH WIDTH X 4 INCH DEPTH X 9.38 INCH HEIGHT SIZE; 4 MAX. NUMBER OF CIRCUITS; 2 MAX. NUMBER OF SPACES; UL APPROVAL; 120/240 VOLT AC VOLTAGE RATING; 10 KILOAMP INTERRUPTING RATING; 70 AMP CURRENT RATING |
| MSDS Form Number | * |
| Main Breaker Type | QO |
| Main Wire Size | 14 to 4 AWG (Copper), 12 to 3 AWG (Aluminum) |
| Marketing Trade Name | QO NULL |
| Max Short Circuit Current Rating | 65 kA |
| Maximum Number Of Circuits | 4 |
| Maximum Number Of Single Pole Circuits | 4 NULL |
| Maximum Number Of Spaces | 2 |
| Maximum Number Of Tandem Breakers | 2 NULL |
| Model | QO |
| Noun | * |
| Number Of Feeders | 4 |
| Number Of Phases | 1 phase NULL |
| Number Of Spaces | 2.0 |
| Phase | 1 |
| Product | Load Center NULL |

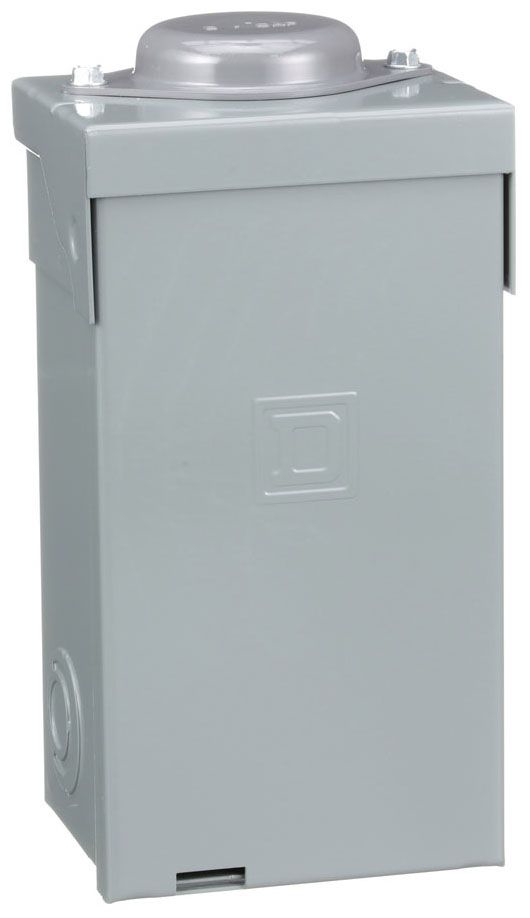

| Product Description | Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R |
| Product Keywords | WEBREADY |
| Product Name | Load centers |
| Product Type | Load Center | |
| ProductLine | SQD |
| Rated Current | 70 A |
| Size | 4.88 Inch Width x 4 Inch Depth x 9.38 Inch Height |
| Special Features | Tin plated aluminium busbar |
| Standard | UL LISTED |
| Sub Brand | QO |
| Tightening Torque | Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper;main lugs 45 lb.in, AWG 3, aluminium/copper;main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper;main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper |
| Type | Load Center;Main Lug |
| UNSPSC | 39121101 |
| UPC | 78590178513 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 120/240 VAC;120/240 Volt AC |
| Width | 4.88 in |
| Wire Size | AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper |
| Wiring Configuration | 3-wire |
