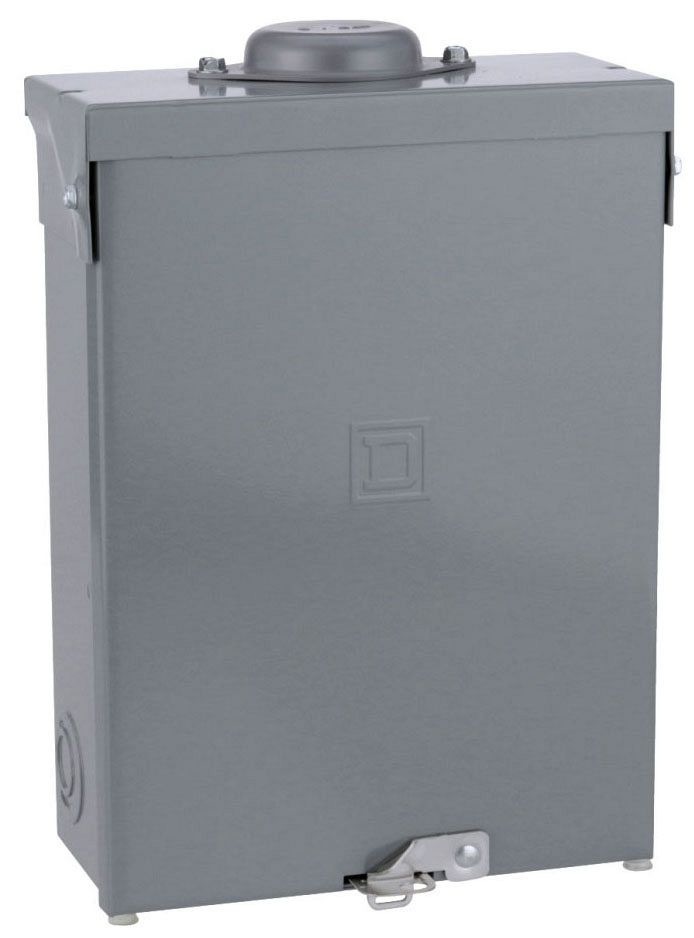

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | QO612L100RB |
| Amperage | 100 A |
| Amperage Rating | 100 A |
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | QO |
| Breaker Mounting | Plug-On |
| Bus Material | Tin Plated Aluminum |
| Busbar Material | Tin plated aluminium busbar |
| Cable Size | AWG 8...AWG 1 aluminium/copper |
| Catalog Number | QO612L100RB |
| Circuit Configuration | 1-Phase 3-Wire |
| Commerce Sector | Construction Materials |
| Commodity Code | 33110 |
| Commodity Description | Single Phase Main Lug Load Centers |
| CountryOfOrigin | MX |
| Cover Finish | Baked enamel Gray NULL |
| Cover Type | Surface cover;Surface |
| Current Rating | 100 Amp |
| DDCATEGORY | 1852 |
| Directory | CIS |
| Electrical Connection | Lugs |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;2R |
| Enclosure Size Designation | 2R |
| Enclosure Type | Weatherproof enclosure;NEMA 3R, Outdoor, Rainproof |
| Families | 1852 |
| Family Description | Single Phase Main Lug Load Centers |
| Ground Bar | Grounding bar (ordered separately) |
| Grounding Bar | Grounding bar (ordered separately) NULL |
| Height | 12.64 in |
| Height Metric | 321.0 mm |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10 kA |
| Interrupting Rating | 10 Kiloamp |
| InvoiceDescription | Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R, UL;LOAD CENTER QO MLO |
| Item Number | 78559 |
| Line Rated Current Metric | 100.0 A| |
| Load Center Type | Fixed Mains (lugs) |
| Long Description | LOADCENTER BOX AND INTERIOR, MAIN LUG TYPE; 8.88 INCH WIDTH X 4.27 INCH DEPTH X 12.65 INCH HEIGHT SIZE; 12 MAX. NUMBER OF CIRCUITS; 6 MAX. NUMBER OF SPACES; UL APPROVAL; 120/240 VOLT AC VOLTAGE RATING; 10 KILOAMP INTERRUPTING RATING |
| MSDS Form Number | * |
| Main Breaker Type | QO |
| Main Wire Size | 8 to 1 AWG (Copper/Aluminum) |
| Maximum Number Of Circuits | 12 |
| Maximum Number Of Spaces | 6 |
| Maximum Number Of Tandem Breakers | 6 NULL |
| Model | QO |
| Noun | * |
| Number Of Circuits | 12.0 |
| Number Of Feeders | 12 |
| Number Of Spaces | 6.0 |
| Number Of Tandem Circuit Breakers | 6.0 |
| Phase | 1 |
| Product Description | Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R |
| Product Keywords | WEBREADY |
| Product Name | Load centers |
| ProductLine | SQD |
| Rated Current | 100 A |
| Rated Operational Voltage | 120/240 V AC |
| Short Circuit Current Metric | 10.0 kA |
| Size | 8.88 Inch Width x 4.27 Inch Depth x 12.65 Inch Height |
| Special Features | Tin plated aluminium busbar |
| Standard | UL LISTED |
| Sub Brand | QO |
| Surface Finish | Baked enamel Gray |
| Tightening Torque | Main lugs 50 lb.in, AWG 8, aluminium/copper;main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper |
| Type | Load Center;Main Lug |
| UNSPSC | 39121101 |
| UPC | 78590178559 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 120/240 VAC;120/240 Volt AC |
| Width | 8.90 in |
| Wire Size | AWG 8...AWG 1 aluminium/copper |
| Wiring Configuration | 3-wire |
