SQD QOB120

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on

Page Loading...
SQUARE-D/SCHNEIDER

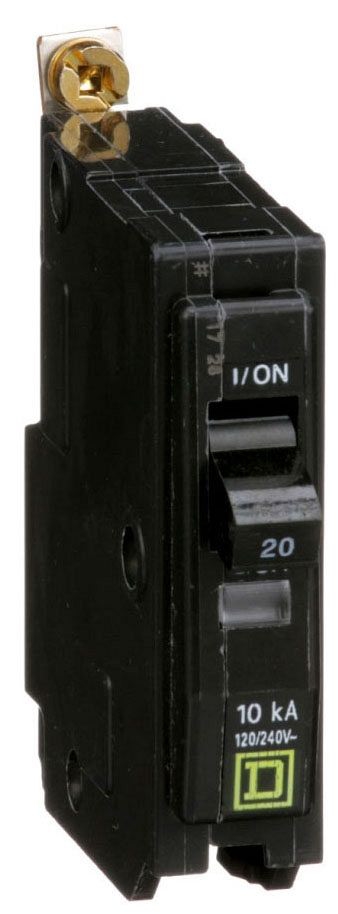

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on

Mouse over image to zoom, click to enlarge

Description:
Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on

UPC:  78590141672

Part Number: QOB120

UNSPSC: 39121603

Status:  UNKNOWN

Your Price:  $39.80 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo QOB120
Additional Information RoHS Compliant; Temperature Rating 104 Deg F
Amperage Rating 20 A
Application HACR and Switching Duty rated
Approval UL, CSA
Base Price 0.0000
Brand Name QO;QO [R]
Breaking Capacity 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz; 5 kA 48 V DC
Catalog Number QOB120
Circuit Breaker Type Standard
Commerce Sector Construction Materials
Commodity Code 32211
Commodity Description 1 Pole Standard Trip Bolt-On Circuit Breakers
Connection Pressure plate;AWG 14...AWG 8 copper or aluminium
CountryOfOrigin US
Current Rating 20 Amp
DDCATEGORY 1747
Depth Metric 74.0 mm
Directory CIS
Families 1747
Family Description 1 Pole Standard Trip Bolt-On Circuit Breakers
Height 0.000
Image Location * Image
Industry ELX
Interrupt Rating 10kA 120/240 V AC 50/60 Hz; 10kA 120 V AC 50/60 Hz; 5kA 48 V DC
Interrupting Rating 10 Kiloamp at 120/240 Volt AC, 5 Kiloamp at 48 Volt DC
InvoiceDescription Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on mount;MINIATURE CIRCUIT
Item Number 41672
Length 2.91 in
Line Rated Current Metric 20.0 A
Long Description MINIATURE CIRCUIT BREAKER, MINIATURE TYPE; 0.75 INCH WIDTH X 2.91 INCH DEPTH X 3 INCH HEIGHT SIZE; NQ SERIES PANELBOARD USED ON; 14 TO 8 AWG (COPPER/ALUMINUM) WIRE SIZE; UL, CSA APPROVAL; 120/240 VOLT AC AT 50/60 HERTZ, 48 VOLT DC VOLTAGE RATING
MSDS Form Number *
Mounting Bolt-On
Mounting Mode Bolt-on
Mounting Type Bolt-on NULL
Net Weight Metric 0.136 kg
Noun *
Number Of Panel Spaces 1 NULL
Number Of Poles 1
Number Of Spaces Required 1.0
Operating Temperature 40 AC
Phase 1
Product Description Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on
Product Keywords WEBREADY
Product Name Miniature circuit breakers
Product Weight 0.30 lb
ProductLine SQD
Size 0.75 Inch Width x 2.91 Inch Depth x 3 Inch Height
Special Features STANDARD BOLT-ON
Standard UL LISTED - CSA CERTIFIED
Sub Brand QO
Terminal Type Pressure Plate
Tightening Torque 5-5 N.m 10-25 mm (AWG 8...AWG 2)
Type Miniature circuit-breaker;Miniature
UNSPSC 39121603
UPC 78590141672
Used On NQ Series Panelboard
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 120/240 V AC;120 V AC;48 V DC;120/240 Volt AC at 50/60 Hertz, 48 Volt DC
Wire Size AWG 14...AWG 8 copper or aluminium;14 to 8 AWG (Copper/Aluminum)

Resources

CatalogNumber QOB120
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
