SQD QOB220EPD2100

Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch

Page Loading...
SQUARE-D/SCHNEIDER
Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch

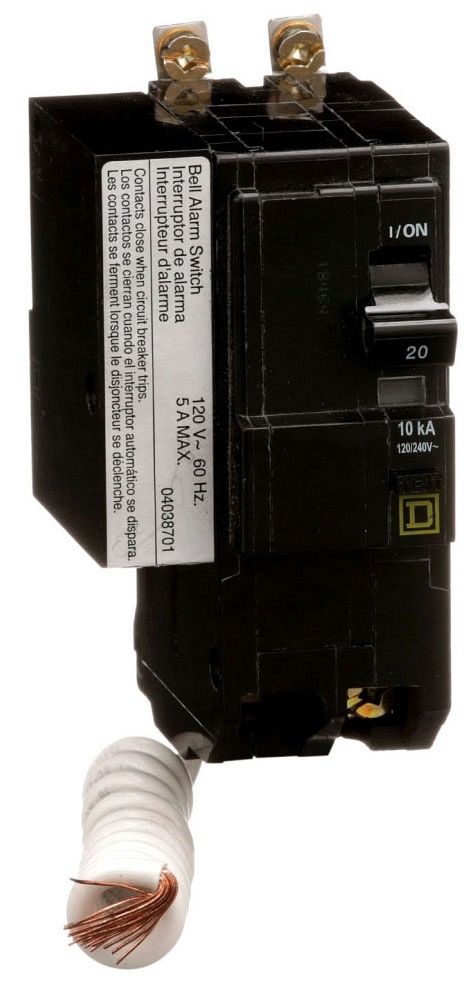

Mouse over image to zoom, click to enlarge

Description:
Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch

UPC:  78590108871

Part Number: QOB220EPD2100

UNSPSC: 39121603

Status:  UNKNOWN

Your Price:  $803.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo QOB220EPD2100
Additional Information WITH 120 VAC 5 AMPERE 1NO CONTACT ALARM SWITCH
Amperage Rating 20 A
Application Not rated
Approval UL, CSA
Base Price 0.0000
Brand Name QO;QO[R]
Breaking Capacity 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz
Catalog Number QOB220EPD2100
Circuit Breaker Type Ground fault protecting class B 30 mA
Commerce Sector Construction Materials
Commodity Code 32242
Commodity Description 2 Pole Equipment Protection Epd Bolt-On Circuit Breakers
Connection Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
CountryOfOrigin MX
Current Rating 20 AMPERE
DDCATEGORY 1758
Depth Metric 74.0 mm
Directory CIS
Families 1758
Family Description 2 Pole Equipment Protection Epd Bolt-On Circuit Breakers
Height 0.000
Image Location * Image
Industry ELX
Interrupt Rating 10kA 120/240 V AC 50/60 Hz; 10kA 120 V AC 50/60 Hz
Interrupting Rating 10 KILOAMPERE
InvoiceDescription Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, 30mA grd fault B, bolt on mount, alarm switch;MINIATURE CIRCUIT
Item Number 08871
Length 2.91 in
Line Rated Current Metric 20.0 A
Long Description MINIATURE CIRCUIT BREAKER, THERMAL MAGNETIC, COMMON TRIP, EQUIPMENT PROTECTOR TYPE; 1.5 INCH W X 2.91 INCH D X 4.12 INCH H SIZE; NQOD PANELBOARD/INTERIOR USED ON; 12 TO 8 AWG (ALUMINUM), 14 TO 8 AWG (COPPER) WIRE SIZE; UL, CSA APPROVAL
MSDS Form Number *
Model QOB-EPD
Mounting BOLT ON
Mounting Mode Bolt-on
Mounting Type Bolt-on NULL
Net Weight Metric 0.526 kg
Noun *
Number Of Panel Spaces 3 NULL
Number Of Poles 2
Number Of Spaces Required 3.0
Operating Temperature 40 AC
Options Alarm switch 120 V AC 1A
Phase 1
Product Description Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch
Product Keywords WEBREADY
Product Name Miniature circuit breakers
Product Weight 1.16 lb
ProductLine SQD
Size 1.5 INCH W X 2.91 INCH D X 4.12 INCH H
Special Features GROUND FAULT PROTECTING (CLASS B 30MA) BOLT-ON
Standard UL LISTED - CSA CERTIFIED
Sub Brand QO
Terminal Type PRESSURE PLATE
Tightening Torque 4.6-4.6 N.m 2.5-10 mm (AWG 16...AWG 14);4.6-4.6 N.m 4-20 mm (AWG 12...AWG 4)
Trip Sensitivity 30 MILLIAMPERE
Type Alarm switch 120 V AC 1A;Miniature circuit-breaker;THERMAL MAGNETIC, COMMON TRIP, EQUIPMENT PROTECTOR
UNSPSC 39121603
UPC 78590108871
Used On NQOD PANELBOARD/INTERIOR
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 120/240 V AC;120 V AC;120/240 VAC AT 50/60 HZ (UL/CSA)
Wire Size AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium;12 TO 8 AWG (ALUMINUM), 14 TO 8 AWG (COPPER)
