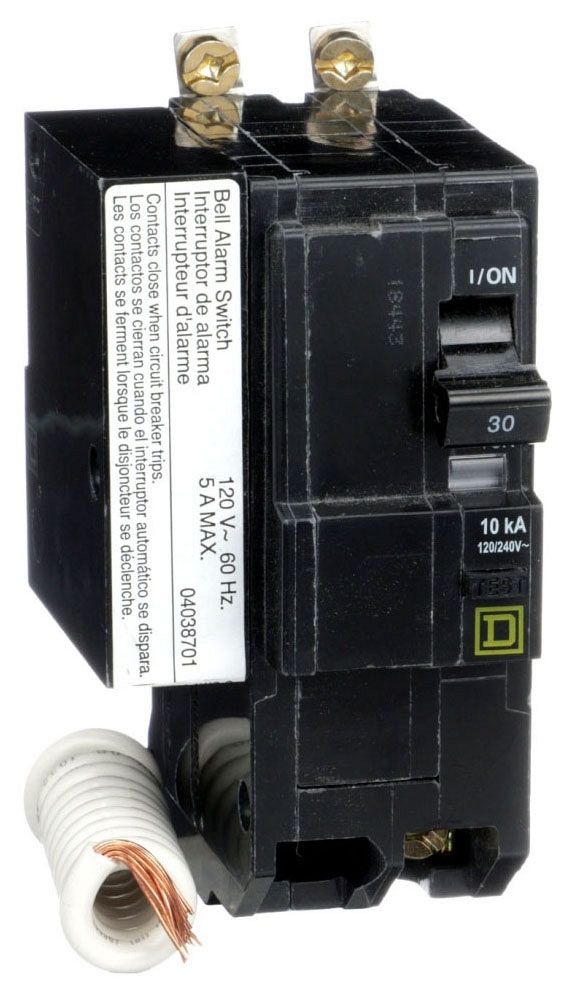

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | QOB230EPD2100 |
| Additional Information | WITH 120 VAC 5 AMPERE 1NO CONTACT ALARM SWITCH |
| Amperage Rating | 30 A |
| Application | Not rated |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | QO;QO[R] |
| Breaking Capacity | 10 kA 120/240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz |
| Catalog Number | QOB230EPD2100 |
| Circuit Breaker Type | Ground fault protecting class B 30 mA |
| Commerce Sector | Construction Materials |
| Commodity Code | 32242 |
| Commodity Description | 2 Pole Equipment Protection Epd Bolt-On Circuit Breakers |
| Connection | Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium |
| CountryOfOrigin | MX |
| Current Rating | 30 A;30 AMPERE |
| DDCATEGORY | 1758 |
| Depth | 2.91 in |
| Depth Metric | 74.0 mm |
| Directory | CIS |
| Electrical Connection | Pressure plate NULL |
| Families | 1758 |
| Family Description | 2 Pole Equipment Protection Epd Bolt-On Circuit Breakers |
| Height | 0.000 |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10kA 120/240 V AC 50/60 Hz; 10kA 120 V AC 50/60 Hz |
| Interrupting Rating | 10 KILOAMPERE |
| InvoiceDescription | Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, 30mA grd fault B, bolt on mount, alarm switch;MINIATURE CIRCUIT |
| Item Number | 08873 |
| Length | 2.91 in |
| Line Rated Current Metric | 30.0 A |
| Long Description | MINIATURE CIRCUIT BREAKER, THERMAL MAGNETIC, COMMON TRIP, EQUIPMENT PROTECTOR TYPE; 1.5 INCH W X 2.91 INCH D X 4.12 INCH H SIZE; NQOD PANELBOARD/INTERIOR USED ON; 12 TO 8 AWG (ALUMINUM), 14 TO 8 AWG (COPPER) WIRE SIZE; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Model | QOB-EPD |
| Mounting | BOLT ON |
| Mounting Mode | Bolt-on |
| Mounting Type | Bolt-on NULL |
| Net Weight Metric | 0.526 kg |
| Noun | * |
| Number Of Panel Spaces | 3 NULL |
| Number Of Poles | 2 |
| Number Of Spaces Required | 3.0 |
| Operating Temperature | 40 AC |
| Options | Alarm switch 120 V AC 1A NULL |
| Phase | 1 |
| Product | Miniature circuit-breaker NULL |
| Product Description | Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on, 30mA grd fault B, alarm switch |
| Product Keywords | WEBREADY |
| Product Name | Miniature circuit breakers |
| ProductLine | SQD |
| Range | QO NULL |
| Ratings | Not rated NULL |
| Size | 1.5 INCH W X 2.91 INCH D X 4.12 INCH H |
| Special Features | GROUND FAULT PROTECTING (CLASS B 30MA) BOLT-ON |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Terminal Type | PRESSURE PLATE |
| Tightening Torque | 4.6-4.6 N.m 2.5-10 mm (AWG 16...AWG 14);4.6-4.6 N.m 4-20 mm (AWG 12...AWG 4) |
| Trip Sensitivity | 30 MILLIAMPERE |
| Type | Alarm switch 120 V AC 1A;Miniature circuit-breaker;THERMAL MAGNETIC, COMMON TRIP, EQUIPMENT PROTECTOR |
| UNSPSC | 39121603 |
| UPC | 78590108873 |
| Used On | NQOD PANELBOARD/INTERIOR |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 120/240 V AC;120 V AC;120/240 VAC AT 50/60 HZ (UL/CSA) |
| Wire Size | AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium NULL;12 TO 8 AWG (ALUMINUM), 14 TO 8 AWG (COPPER) |
