| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | QOU260 |
| Additional Information | RoHS/REACH Compliant; Tightening Torque Rating 45 Inch-Pound; Applicable Standard IEC |
| Amperage | 60 A |
| Amperage Rating | 60 A |
| Application | HACR rated |
| Approval | UL, CSA |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Base Price | 0.0000 |
| Brand Name | QOU;QO[TM] |
| Catalog Number | QOU260 |
| Circuit Breaker Type | Standard |
| Commerce Sector | Construction Materials |
| Commodity Code | 32322 |
| Commodity Description | 2 Pole Unit Mount Circuit Breakers |
| Connection | AWG 14...AWG 2 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side |
| CountryOfOrigin | MX |
| Current Rating | 60 Amp |
| DDCATEGORY | 1775 |
| Depth | 2.95 in |
| Directory | CIS |
| Electrical Connection | Slotted box lugs, line side;Slotted box lugs, load side |
| Families | 1775 |
| Family Description | 2 Pole Unit Mount Circuit Breakers |
| Height | 4.05 in |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10KA |
| Interrupting Rating | 10 Kiloamp |
| InvoiceDescription | Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA;MINIATURE CIRCUIT |
| Item Number | 41880 |
| Length | 2.95 in |
| Line Rated Current Metric | 60.0 A |
| Long Description | MINIATURE CIRCUIT BREAKER, MINIATURE, STANDARD TYPE; 1.5 INCH WIDTH X 2.95 INCH DEPTH X 4.05 INCH HEIGHT SIZE; OEM USED ON; 14 TO 2 AWG (COPPER/ALUMINUM) WIRE SIZE; UL, CSA APPROVAL; 120/240 VOLT AC 50/60 HERTZ, 48 VOLT DC VOLTAGE RATING |
| MSDS Form Number | * |
| Model | QOU |
| Mounting | DIN Rail/Unit/Surface/Flush |
| Mounting Mode | Unit mount |
| Noun | * |
| Number Of Poles | 2 |

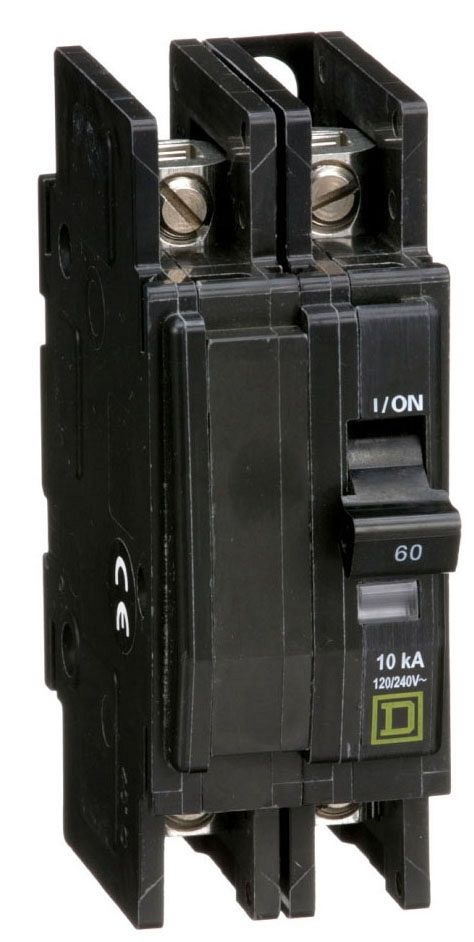

| Product Description | Mini circuit breaker, QOU, 60A, 2 pole, 120/240VAC, 10kA |
| Product Keywords | WEBREADY |
| Product Name | Miniature circuit breakers |
| ProductLine | SQD |
| Size | 1.5 Inch Width x 2.95 Inch Depth x 4.05 Inch Height |
| Special Features | STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Sub Brand | QOU |
| Terminal Type | Slotted Box Lug Line/Load |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Type | Miniature circuit-breaker;Miniature, Standard |
| UNSPSC | 39121603 |
| UPC | 78590141880 |
| Ue Rated Operational Voltage | 120/240 V AC;120 V AC;48 V DC |
| Used On | OEM |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 120/240 V AC;120 V AC;48 V DC;120/240 Volt AC 50/60 Hertz, 48 Volt DC |
| Width | 1.5 in |
| Wire Size | 14 to 2 AWG (Copper/Aluminum) |
