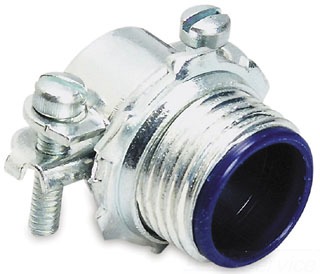

T&B 3302M-TB

1/2 INS TWO-SCREW CONNECT

Page Loading...
THOMAS & BETTS CORPORATION (T&B)
1/2 INS TWO-SCREW CONNECT

Mouse over image to zoom, click to enlarge

Description:
1/2 INS TWO-SCREW CONNECT

UPC:  78621080552

Part Number: 3302M-TB

UNSPSC: 39121419

Status:  UNKNOWN

Retail Price:  $217.99 / EA
Your Price:  $2.83 / EA


Quantity  EA

Specifications

Manufacturer Name THOMAS & BETTS CORPORATION (T&B)
MfgPartNo 3302M-TB
Additional Information Connection Type Straight; Overall Dimension 1 Inch Length x 1-13/32 Inch Width x 1 Inch Height
Application To Connect Non-Metallic Sheathed Cable and Flexible Cord to a Box or an Enclosure.
Approval UL, CSA
Base Price 0.0000
Brand Name T&B Fittings
Cable Size (2) 14 AWG, (2) 12 AWG, (2) 10 AWG, (3) 14 AWG, (3) 12 AWG, (3) 10 AWG Non-Metallic Single Cable, (2) 14 AWG, (2) 12 AWG Non-Metallic Pair Cable, (2) 12 AWG to (2) 4 AWG, (3) 12 AWG, (3) 10 AWG (Service Entrance Cable)
Cable Type Non-Metallic Sheathed/Flexible/Service Entrance Cable
Catalog Number 3302M-TB
Color Metallic
Commerce Sector Construction Materials
Commodity Code 24300
Commodity Description Non-Metallic Cable Cable Fittings
CountryOfOrigin US
DDCATEGORY 1137
Directory CIS
Families 1137
Family Description Non-Metallic Cable Cable Fittings
Finish Electro Zinc Plated
Image Location * Image
Industry ELX
Installation 2-Screw, Clamp
Insulation Nylon
InvoiceDescription 1/2 INS TWO-SCREW CONNECT;1/2 INS 2SCR NMC CONN
Item Number 80552
Knockout Size 1/2 Inch
Long Description SHEATHED CABLE CONNECTOR, ELECTRO ZINC PLATED CHROMATE COATED STEEL (BODY/CLAMP/LOCKNUT), THERMOPLASTIC (INSULATOR) MATERIAL; 2-SCREW, CLAMP INSTALLATION; NON-METALLIC SHEATHED/FLEXIBLE/SERVICE ENTRANCE CABLE CABLE TYPE
MSDS Form Number *
Material Steel;Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut), Thermoplastic (Insulator)
Noun *
Product Description 1/2 INS TWO-SCREW CONNECT
Product Keywords WEBREADY
Product Name Flex connectors
ProductLine T&B
Size 1/2 Inch
Special Features Rounded Cable Grip and Smooth Bushing Protect The Cable Sheath and Wire Insulation. Since Saddle is Threaded, Screws Do Not Travel or Extend Beyond The Connector Body As It is Clamped to The Cable. An Extra Lip on The Saddle Closes The Unused Part of The Connector Opening.
Standard UL E23013, CSA 2884
Standard Package 500 per Outer Pack
Throat Type Insulated
Type Non-Metallic Sheathed Cable Conduit Fittings
UNSPSC 39121419
UPC 78621080552
Vendor Name THOMAS & BETTS
Vendor Number 786210
Vendor Short Name T&B
