| Manufacturer Name | MERSEN USA Newburyport-MA, LLC |
| MfgPartNo | 20308R |
| AC Voltage Rating | 250 V |
| Additional Information | Lead-Free; RoHS Compliant; Short Circuit Current Rating 200 Kiloamp; Torque Rating 35 Inch-Pound; Contact Material Tin Plated Copper; Mounting Type Screw |
| Amperage Rating | 30 A |
| Approval | UL 4248-12, CSA C22.2, CE |
| Base Price | 0.0000 |
| Catalog Number | 20308R |
| Class | Class R |
| Clip Type | Spring Reinforced |
| Commerce Sector | Construction Materials |
| Commodity Code | 61310 |
| Commodity Description | Fuseholders & Fuseblocks |
| Connection | Box with Reinforced Clip |
| CountryOfOrigin | MX |
| DC Voltage Rating | 250 V |
| DDCATEGORY | 585 |
| Directory | CIS |
| Families | 585 |
| Family Description | Fuseholders & Fuseblocks |
| Fuse Current Rating | 30 Amp |
| Fuse Type | Class R |
| Fuse Voltage Rating | 250 Volt AC/DC |
| Image Location | * Image |
| Industry | ELX |

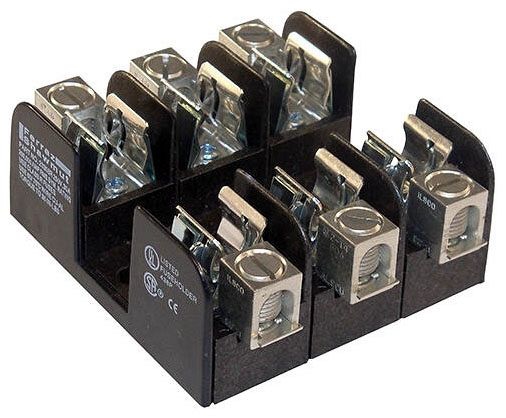

| InvoiceDescription | Fuse Block 250VAC 250VDC Class R 30A 3-Pole Box with Reinforced Clip;30A 250V 3P FUSE BLK |
| Item Number | 75042 |
| Long Description | FUSE BLOCK, BARRIER TYPE; MOLDED GLASS FILLED POLYCARBONATE MATERIAL; 14 TO 2 AWG (COPPER/ALUMINUM) WIRE SIZE; UL 4248-12, CSA C22.2, CE APPROVAL; 3 POLE(S); BOX LUG TERMINAL TYPE; CLASS R FUSE TYPE; 30 AMP FUSE CURRENT RATING |
| MSDS Form Number | * |
| Material | Glass Filled Polycarbonate;Molded Glass Filled Polycarbonate |
| Maximum Operating Temperature | 80 C |
| Mounting | Direct Screw Mount |
| Noun | * |
| Number Of Poles | 3 |
| Phase | 3 |
| Product Description | 30A 250V 3P FUSE BLK |
| Product Keywords | WEBREADY |
| Product Name | Fuse holder |
| ProductLine | MFP |
| Size | 3 x 3 x 1.38 in |
| Standard | All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169 |
| Terminal Type | Box Lug |
| Type | UL/CSA Fuse Bases;Barrier |
| UNSPSC | 39121624 |
| UPC | 78200175042 |
| Vendor Name | MERSEN (FORMERLY FERRAZ SHAWMUT INC) |
| Vendor Number | 782001 |
| Vendor Short Name | MFZ |
| Voltage Rating | 250 VAC |
| Wire Size | 14 to 2 AWG (Copper/Aluminum) |
