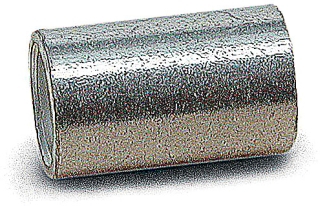

T&B B14-PS-M

NON-INS PRL SPLICE, 16-14, CMA 2,05

THOMAS & BETTS CORPORATION (T&B)
NON-INS PRL SPLICE, 16-14, CMA 2,05
Description:
NON-INS PRL SPLICE, 16-14, CMA 2,05

UPC:  78621093626

Part Number: B14-PS-M

UNSPSC: 39121449

Status:  UNKNOWN

Retail Price:  $31.77 / EA
Your Price:  $0.33 / EA


Quantity  EA
Note: this product is only sold in multiples of 1000 items

Specifications

Manufacturer Name THOMAS & BETTS CORPORATION (T&B)
MfgPartNo B14-PS-M
Approval UL, CSA
Barrel Inner Diameter 0.113 Inch
Barrel Outer Diameter 0.155 Inch
Base Price 0.0000
Brand Name Sta-Kon
Catalog Number B14-PS-M
Color Metallic
Commerce Sector Construction Materials
Commodity Code 64130
Commodity Description Splicing & Terminating Kits
Conductor Size 16 to 14 AWG
CountryOfOrigin US
DDCATEGORY 1152
Directory CIS
Families 1152
Family Description Splices, Closures, & Trays
Finish Tin Plated
Image Location * Image
Industry ELX
Insulation Type Non-Insulated
InvoiceDescription NON-INS PRL SPLICE, 16-14, CMA 2,05;16-14AWG CU PRL SPLICE
Item Number 93626
Length 0.315 Inch
Long Description SPLICE CONNECTOR, PARALLEL TYPE; ELECTRO TIN PLATED COPPER MATERIAL; METALLIC COLOR; 0.315 INCH; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; 150 DEG C TEMPERATURE RATING; 10000 PER OUTER PACK STANDARD PACKAGE; 16 TO 14 AWG CONDUCTOR SIZE
MSDS Form Number *
Material Copper;Electro Tin Plated Copper
Noun *
Product Description NON-INS PRL SPLICE, 16-14, CMA 2,05
Product Keywords WEBREADY
Product Name Wire or cable splice connector
ProductLine T&B
Special Features Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands. Feature an intelligent constructable part number for quick identification of the wire range.
Standard UL E9809
Standard Package 10000 per Outer Pack
Temperature Rating 150 Deg C
Type Non-Insulated Parallel Splice;Parallel
UNSPSC 39121449
UPC 78621093626
Vendor Name THOMAS & BETTS
Vendor Number 786210
Vendor Short Name T&B
Voltage Rating 600 V;600 Volt

Resources

CatalogNumber B14-PS-M
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1000
