| Manufacturer Name | UNISTRUT CORPORATION |
| MfgPartNo | P2785-EG |
| Additional Information | Overall Dimension 3 Inch Width x 3-3/8 Inch Height; Safety Factor 2.5; Channel Size 1-5/8 Inch Width; Used On P1000/P1100/P2000/P3000/P3300/P3301/P4000/P4001/P4100/P4101 Channel; Includes Hex Nut and U-Bolt; Approval CSA |
| Application | For Use With Beams Up To 3/4 IN Flanges And With Channels P1101, P1001, P2001, P3001, P5000 And P5500;Mechanical Support |
| Base Price | 0.0000 |
| Brand Name | Unistrut |
| Catalog Number | P2785-EG |
| Commerce Sector | Construction Materials |
| Commodity Code | 28200 |
| Commodity Description | Channel & Strut Fittings |
| CountryOfOrigin | USA |
| DDCATEGORY | 144 |
| Directory | CIS |
| Families | 144 |
| Family Description | Channel & Strut Fittings |
| Finish | Electrogalvanizing;Electrogalvanized |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 306301;BEAM CLAMP |
| Item Number | 27850 |
| Load Capacity | 1000 Pound |

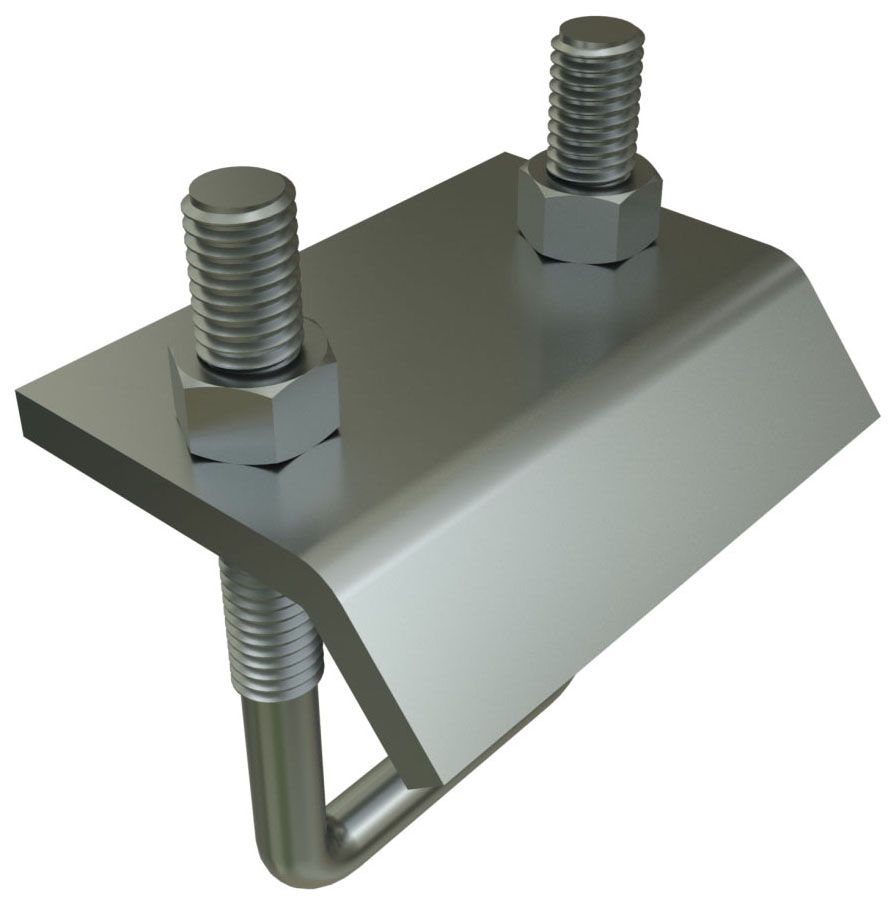

| Long Description | CHANNEL BEAM CLAMP, 1-U TYPE; STEEL MATERIAL; ELECTROGALVANIZED FINISH; 3/4 INCH MAX. JAW CAPACITY; MECHANICAL SUPPORT APPLICATION; HOT ROLLED PICKLED AND OILED PROCESS; ASTM A1011/A575/A576/A635/B633 SS GRADE 33 MATERIAL SPECIFICATION |
| MSDS Form Number | * |
| Material | ASTM A575, A576, A635 Or A36, ASTM A1011 SS GR 33 Steel;Steel |
| Material Specification | ASTM A1011/A575/A576/A635/B633 SS Grade 33 |
| Maximum Jaw Capacity | 3/4 Inch |
| Maximum Load | 1000 LB |
| Model | P2785 |
| Noun | * |
| Process | Hot Rolled Pickled and Oiled |
| Product Description | BEAM CLAMP |
| Product Keywords | WEBREADY |
| Product Name | Beam clamps |
| ProductLine | UNISTR |
| Screw Size | 3/8 Inch |
| Special Features | 3/8 IN hex nut and U bolt included |
| Sub Brand | Metal Framing Components |
| Torque Rating | 19 FT/LB |
| Type | Beam Clamp;1-U |
| UNSPSC | 31162905 |
| UPC | 78636427850 |
| Vendor Name | ATKORE- UNISTRUT |
| Vendor Number | 786364 |
| Vendor Short Name | UNISTR |
| Width | 3 in |
