| Manufacturer Name | WHEATLAND TUBE CO. |
| MfgPartNo | 6358 |
| Applicable Standard | ANSI C80.1, FED WW-C-581 |
| Application | Used to change the direction of a raceway;Used to change the direction of a raceway |
| Approval | UL, CSA C22.2 |
| Base Price | 0.0000 |
| Bend Angle | 90 Degree |
| Bend Degree | 90 |
| Bend Radius | 5-3/4 Inch |
| Catalog Number | 6358 |
| Color | Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 21100 |
| Commodity Description | Rigid Steel Elbows-Coupling-Nipples-R Thread |
| Connection | Threaded |
| CountryOfOrigin | USA |
| DDCATEGORY | 109 |
| Directory | CIS |
| End Type | External Threaded |
| Families | 109 |
| Family Description | Rigid Steel Elbows-Coupling-Nipples-R Thread |
| Finish | Galvanized |
| Flexibility | No |
| Image Location | * Image |
| Industry | ELX |
| Inside Diameter | 1.063 in;1.063 in. |
| InvoiceDescription | 1 GRC ELBOW 90DEG;1IN 90D GRC ELBOW |
| Item Number | 00163 |

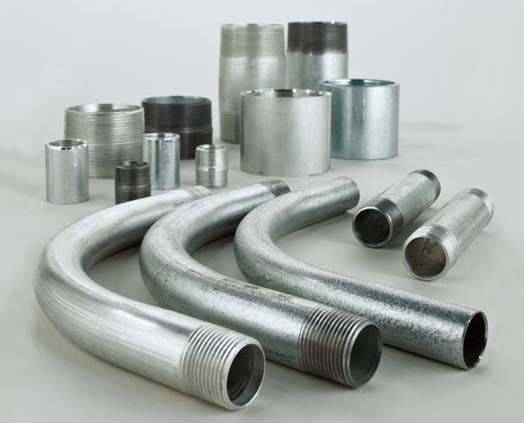

| Long Description | RIGID CONDUIT ELBOW, STANDARD RADIUS TYPE; STEEL MATERIAL; GALVANIZED FINISH; UL, CSA C22.2 APPROVAL; ANSI C80.1, FED WW-C-581 APPLICABLE STANDARD; 25 PER CARTON STANDARD PACKAGE; 1 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE |
| MSDS Form Number | * |
| Material | Steel |
| Material Quality | Steel |
| Noun | * |
| Outside Diameter | 1.315 in |
| Product Description | 1IN 90D GRC ELBOW |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit elbow |
| ProductLine | WHT |
| Radius | Standard |
| Special Features | Made and Melted in the United States, Hot-Dip Galvanized OD and ID, RMC Recognized as as Equipment Grounding Conductor by the NEC |
| Standard | UL 6, CSA C22.2 45, ANSI C 80.1 and Federal Specification WW-C-581;UL 6, CSA C22.2 45.1, ANSI C 80.1 |
| Standard Package | 25 per Carton |
| Trade Size | 1;1 Inch |
| Type | Standard Radius Rigid Conduit Elbow;Standard Radius |
| UNSPSC | 39131717 |
| UPC | 78669200163 |
| Vendor Name | WHEATLAND TUBE CO. |
| Vendor Number | 786692 |
| Vendor Short Name | WHT |
| Wall Thickness | 0.126 in |
