| Manufacturer Name | WHEATLAND TUBE CO. |
| MfgPartNo | 6504 |
| Applicable Standard | ANSI C80.1, FED WW-C-581 |
| Application | Used to change the direction of a raceway;Used to change the direction of a raceway |
| Approval | UL, CSA C22.2 |
| Base Price | 0.0000 |
| Bend Angle | 90 Degree |
| Bend Degree | 90 |
| Bend Radius | 13 Inch |
| Catalog Number | 6504 |
| Color | Gray;Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 21200 |
| Commodity Description | Rigid Alum Elbows-Couplings-Nipples |
| Connection | Threaded |
| CountryOfOrigin | USA |
| DDCATEGORY | 111 |
| Directory | CIS |
| End Type | External Threaded |
| Families | 111 |
| Family Description | Rigid Alum Elbows-Couplings-Nipples |
| Finish | Aluminum |
| Flexibility | No |
| Image Location | * Image |
| Industry | ELX |
| Inside Diameter | 3.090 in.;3.09 in |
| InvoiceDescription | 3 ALUM ELBOW 90DEG;3IN 90D ALUM ELBOW |
| Item Number | 01168 |
| Long Description | RIGID CONDUIT ELBOW, STANDARD RADIUS TYPE; ALUMINUM MATERIAL; UL, CSA C22.2 APPROVAL; ANSI C80.1, FED WW-C-581 APPLICABLE STANDARD; 3 INCH TRADE SIZE; EXTERNAL THREADED END TYPE; 90 DEGREE BEND ANGLE; 13 INCH BEND RADIUS |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Quality | Aluminum Alloy |
| Noun | * |
| Outside Diameter | 3.500 in;3.5 in |
| Product Description | 3IN 90D ALUM ELBOW |
| Product Keywords | WEBREADY |

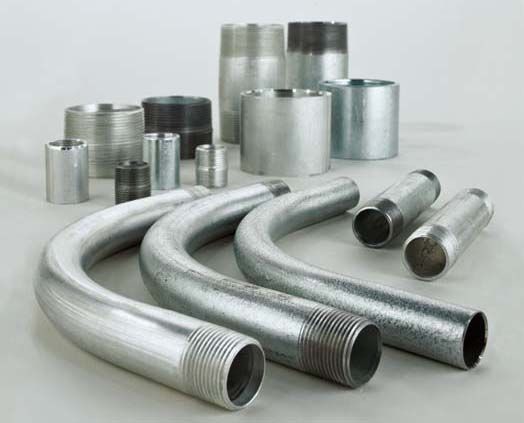

| Product Name | Electrical conduit elbow |
| ProductLine | WHT |
| Radius | Standard |
| Special Features | Made in USA, Corrosion resistant oxide film, Non-sparking and Non-magnetic, RMC Recognized as as Equipment Grounding Conductor by the NEC;Made in USA, Corrosion resistant oxide film, Non-sparking and Non-magnetic |
| Standard | UL 6A CSA C22.2 45.1, ANSI C 80.5;UL 6A, CSA C22.2 45, ANSI C 80.5 and Federal Specification WW-C-540c |
| Trade Size | 3;3 Inch |
| Type | Standard Radius Rigid Conduit Elbow;Standard Radius |
| UNSPSC | 39131717 |
| UPC | 78669201168 |
| Vendor Name | WHEATLAND TUBE CO. |
| Vendor Number | 786692 |
| Vendor Short Name | WHT |
| Wall Thickness | 0.189 in |
