| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 102001A01F060 |
| Amperage Rating | 13 A |
| Application | HYDRAULIC VALVE, LIMIT SWITCH, PHOTOELECTRIC SENSOR, PROXIMITY SENSOR |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Brad;Mini-Change[R] |
| Cable Type | 16 AWG STOOW, 65 X #34 STRANDED COPPER CONDUCTOR, PVC JACKET |
| Catalog Number | 102001A01F060 |
| Color | Yellow;YELLOW |
| Commerce Sector | Construction Materials |
| Commodity Code | 02400 |
| Commodity Description | Cords Sets |
| Conductor Range | 16 |
| Connector Type | 90 DEG, SINGLE END |
| CountryOfOrigin | MX |
| Current Rating | 13 AMPERE |
| DDCATEGORY | 22 |
| Directory | CIS |
| Enclosure | NEMA 6P, IP68 |
| Environmental Conditions | IP67 |
| Families | 22 |
| Family Description | Cords Sets |
| Finish | STOOW |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MC 2P FP 6' 90D 16/2 PVC;2P 90D CORDSET |
| Item Number | 42947 |
| Keyway Type | SINGLE |
| Length | 6 FT |
| Length In Ft | 6 |
| Length In Ft UOM | ft |
| Length In Meters | 1.8288 |
| Length In Meters UOM | m |

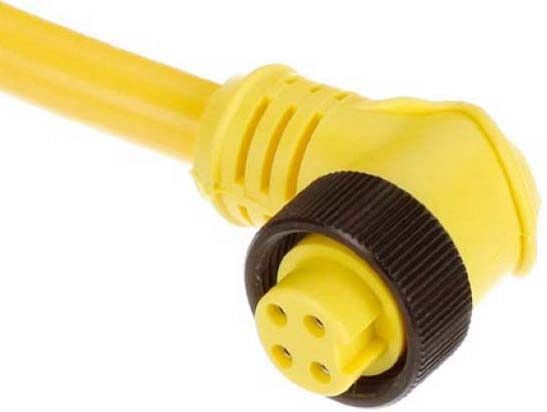

| Long Description | SINGLE ENDED CORD SET, FEMALE TYPE; MOLDED PVC BODY; GOLD PLATED PALLADIUM NICKEL ALLOY CONTACT; DIE CAST BLACK EPOXY ELECTROCOATED ZINC COUPLING NUT; PVC CONNECTOR FACE, CONDUCTOR INSULATION MATERIAL; YELLOW COLOR; 6 FT; 6 LENGTH IN FT |
| MSDS Form Number | * |
| Material | PVC;MOLDED PVC BODY; GOLD PLATED PALLADIUM NICKEL ALLOY CONTACT; DIE CAST BLACK EPOXY ELECTROCOATED ZINC COUPLING NUT; PVC CONNECTOR FACE, CONDUCTOR INSULATION |
| Noun | * |
| Number Of Poles | 2 |
| Orientation | 90 to Straight |
| Product Description | 2P 90D CORDSET |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Size | 1.83m (6.0') |
| Sub Brand | Mini-Change |
| Temperature Rating | -20C to +105C |
| Type | Single Ended;FEMALE |
| UNSPSC | 39121413 |
| UPC | 78678842947 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 600 V;600 VAC/VDC |
| Wire Code | 1-WHITE 2-BLACK |
