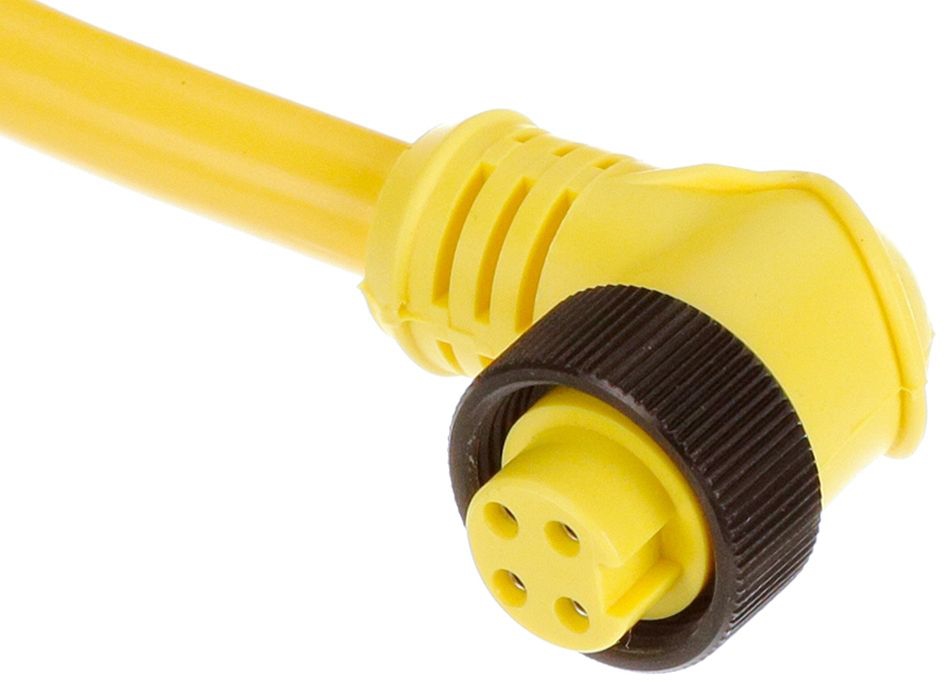

| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 104001C01F060 |
| Application | HYDRAULIC VALVE, LIMIT SWITCH, PHOTOELECTRIC SENSOR, PROXIMITY SENSOR |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Mini-Change[R] |
| Cable Type | 16 AWG SOO, 65 X #34 STRANDED COPPER CONDUCTOR, NITRILE RUBBER/PVC JACKET |
| Catalog Number | 104001C01F060 |
| Color | YELLOW |
| Commerce Sector | Construction Materials |
| Commodity Code | 02400 |
| Commodity Description | Cords Sets |
| Connector Type | 90 DEG, SINGLE END |
| Current Rating | 10 AMPERE |
| DDCATEGORY | 22 |
| Directory | CIS |
| Enclosure | NEMA 6P, IP68 |
| Families | 22 |
| Family Description | Cords Sets |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4P 90D CORDSET |
| Item Number | 43134 |
| Keyway Type | SINGLE |
| Length | 6 FT |
| Length In Ft | 6 |
| Length In Ft UOM | ft |
| Length In Meters | 1.8288 |
| Length In Meters UOM | m |
| Long Description | SINGLE ENDED CORD SET, FEMALE TYPE; MOLDED PVC BODY, GOLD PLATED PALLADIUM NICKEL ALLOY CONTACT, DIE CAST BLACK EPOXY ELECTROCOATED ZINC COUPLING NUT, PVC CONNECTOR FACE, HYPALON CONDUCTOR INSULATION MATERIAL; YELLOW COLOR; 6 FT; 6 LENGTH IN FT |
| MSDS Form Number | * |
| Material | MOLDED PVC BODY, GOLD PLATED PALLADIUM NICKEL ALLOY CONTACT, DIE CAST BLACK EPOXY ELECTROCOATED ZINC COUPLING NUT, PVC CONNECTOR FACE, HYPALON CONDUCTOR INSULATION |
| Noun | * |
| Number Of Poles | 4 |
| Product Description | 4P 90D CORDSET |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Type | FEMALE |
| UNSPSC | 39121413 |
| UPC | 78678843134 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 600 VAC/VDC |
| Wire Code | 1-RED WITH BLACK TRACE 2-RED WITH WHITE TRACE 3-RED 4-GREEN (GROUND) |
