| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 104002A01F030 |
| Additional Information | Temperature Rating -20 to 105 Deg C |
| Amperage Rating | 10 A |
| Application | Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Brad[R], Mini-Change[R] |
| Cable Type | 16 AWG STOOW, PVC Jacket |
| Catalog Number | 104002A01F030 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 02400 |
| Commodity Description | Cords Sets |
| Conductor Range | 16 |
| Connector Type | Straight, Single End |
| CountryOfOrigin | MX |
| Current Rating | 10 Ampere |
| DDCATEGORY | 22 |
| Directory | CIS |
| Enclosure | NEMA 6P, IP67, IP68 |
| Environmental Conditions | IP67 |
| Families | 22 |
| Family Description | Cords Sets |
| Finish | STOOW |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MC 4P MP 3' 16/4 PVC;4P 3FT CORDSET |
| Item Number | 43138 |
| Keyway Type | Single |
| Length | 3 Ft |

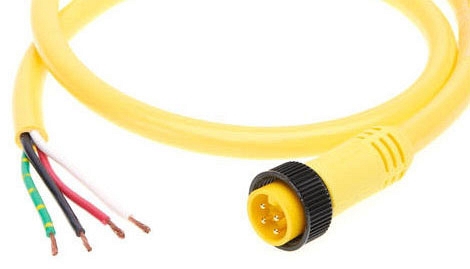

| Long Description | SINGLE ENDED CORD SET, MALE TYPE; BLACK EPOXY COATED ZINC COUPLING NUT, GOLD OVER NICKEL PLATED CONTACT, MOLDED PVC CONNECTOR BODY, PVC CONNECTOR FACE MATERIAL; YELLOW COLOR; 3 FT; 16 AWG STOOW, PVC JACKET CABLE TYPE; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | PVC;Black Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face |
| Model | 130006 |
| Noun | * |
| Number Of Poles | 4 |
| Orientation | Straight |
| Product Description | 4P 3FT CORDSET |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Size | 0.91m (3.0') |
| Temperature Rating Maximum | 221 F |
| Temperature Rating Minimum | -4 F |
| Type | Single Ended;Male |
| UNSPSC | 39121413 |
| UPC | 78678843138 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 600V;600 VAC/VDC |
| Wire Code | 1-Black 2-White 3-Red 4-Green (Ground) |
