| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 106000A01F060 |
| Additional Information | Temperature Rating -20 to 105 Deg C |
| Amperage Rating | 8 A |
| Application | Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor, Conveyor, Packaging, Material Handling System |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Brad;Brad[R], Mini-Change[R] |
| Cable Type | 16 AWG STOOW, PVC Jacket |
| Catalog Number | 106000A01F060 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 02400 |
| Commodity Description | Cords Sets |
| Conductor Range | 16 |
| Connector Type | Straight, Single End |
| CountryOfOrigin | MX |
| Current Rating | 8 Ampere |
| DDCATEGORY | 22 |
| Directory | CIS |
| Enclosure | NEMA 6P, IP67, IP68 |
| Environmental Conditions | IP67 |
| Families | 22 |
| Family Description | Cords Sets |
| Finish | STOOW |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MC 6P FP 6' 16/6 - PVC;6P 8A MALE C/SET |
| Item Number | 43712 |
| Keyway Type | Single |
| Length | 6 Ft |

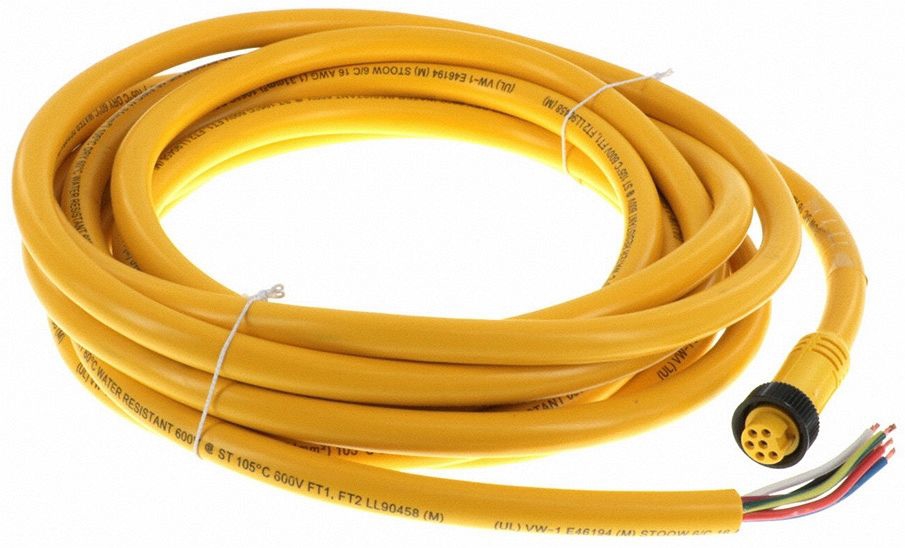

| Long Description | SINGLE ENDED CORD SET, FEMALE TYPE; BLACK EPOXY COATED ZINC COUPLING NUT, GOLD OVER NICKEL PLATED CONTACT, MOLDED PVC CONNECTOR BODY, PVC CONNECTOR FACE MATERIAL; YELLOW COLOR; 6 FT; 16 AWG STOOW, PVC JACKET CABLE TYPE; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | PVC;Black Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Connector Body, PVC Connector Face |
| Model | 130006 |
| Noun | * |
| Number Of Poles | 6 |
| Orientation | Straight |
| Product Description | 6P 8A MALE C/SET |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Size | 1.83m (6.0') |
| Sub Brand | Mini-Change |
| Temperature Rating | -20C to +105C |
| Type | Single Ended;Female |
| UNSPSC | 39121413 |
| UPC | 78678843712 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 600 V;600 VAC/VDC |
| Wire Code | 1-White 2-Red 3-Green (Ground) 4-Orange 5-Black 6-Blue |
