| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 3R2006A20F060 |
| Additional Information | OPERATING TEMPERATURE -4 TO 221 DEG F |
| Amperage Rating | 5 A |
| Application | ASSEMBLY LINE, CONVEYOR, HP MOTOR, LIMIT SWITCH, MATERIAL HANDLING SYSTEM, PACKAGING, FOOD PROCESSING EQUIPMENT, PHOTOELECTRIC SENSOR, PNEUMATIC/HYDRAULIC VALVE, PROXIMITY SWITCH, SOLENOID, TRANSFER |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Mini-Change[R] |
| Catalog Number | 3R2006A20F060 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Conductor Range | 16 |
| Connection | External Thread |
| CountryOfOrigin | MX |
| Current Rating | 5 AMPERE |
| DDCATEGORY | 576 |
| Directory | CIS |
| Enclosure | NEMA 6P, IP68 |
| Environmental Conditions | IP67 |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MC 12P MR 6' 16/1 PVC;12P 6FT MALE |
| Item Number | 44204 |
| Keyway Type | SINGLE |

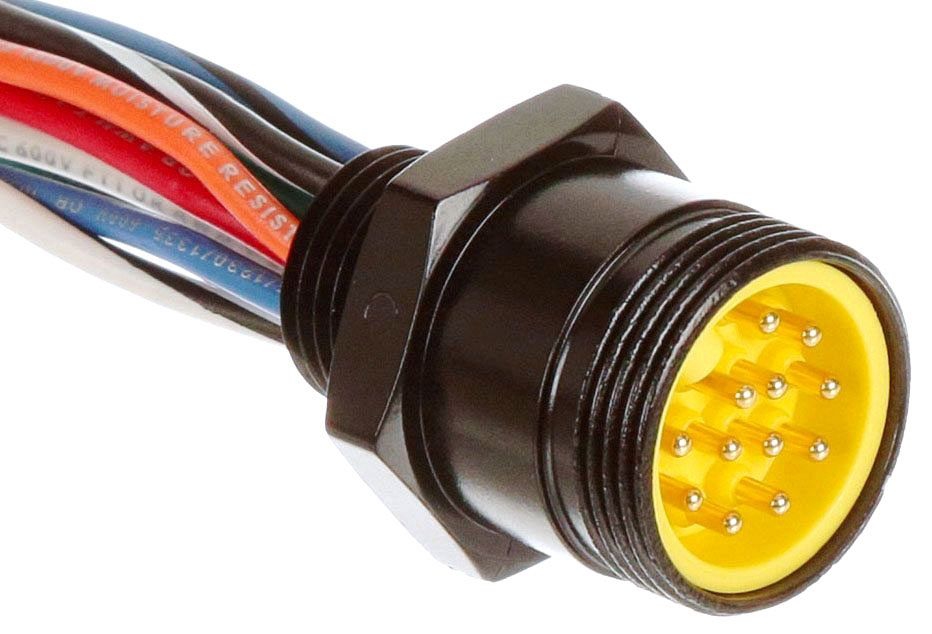

| Long Description | RECEPTACLE, MALE TYPE; DIE CAST BLACK EPOXY COAT ZINC SHELL, PVC INSERT MATERIAL; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | DIE CAST BLACK EPOXY COAT ZINC SHELL, PVC INSERT |
| Mounting | 1/2 INCH-14NPT |
| Noun | * |
| Number Of Poles | 12 |
| Orientation | Straight |
| Product Description | 12P 6FT MALE |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Receptacle Type | STRAIGHT |
| Size | 1.83m |
| Special Features | "C-Size (1-1/8"" - 16 UN-2A)" |
| Temperature Rating Maximum | 221 F |
| Temperature Rating Minimum | -4 F |
| Terminal Type | 16 AWG 6 FT PIGTAIL, PVC |
| Type | Single Ended (pigtail);MALE |
| UNSPSC | 39121413 |
| UPC | 78678844204 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 600V AC/DC;600 VAC/VDC |
| Wire Code | 1-ORANGE 2-BLUE 3-WHITE-BLACK 4-RED-BLACK 5-GREEN-BLACK 6-ORANGE-BLACK 7-BLUE-BLACK 8-BLACK-WHITE 9-GREEN (GROUND) 10-RED 11-WHITE 12-BLACK |
