| Manufacturer Name | WOODHEAD/MOLEX (DANIEL WOODHEAD) |
| MfgPartNo | 706000D02F120 |
| Additional Information | Temperature Rating -20 to 105 Deg C |
| Application | Indicating Light Tower, Safety Light Curtain/Mat, Sensor, Solenoid, Switch, Valve |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Micro-Change[R] |
| Cable Type | 22 AWG Braided, PVC Jacket |
| Catalog Number | 706000D02F120 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 02400 |
| Commodity Description | Cords Sets |
| Connector Type | Straight, Single End |
| CountryOfOrigin | USA |
| Current Rating | 4 Ampere |
| DDCATEGORY | 22 |
| Directory | CIS |
| Enclosure | NEMA 6, IP68 |
| Families | 22 |
| Family Description | Cords Sets |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MIC 6P FP 12FT. 22/6 PVC;MIC 6P FP 12FT |
| Item Number | 23743 |
| Keyway Type | Dual |
| Length | 12 Ft |

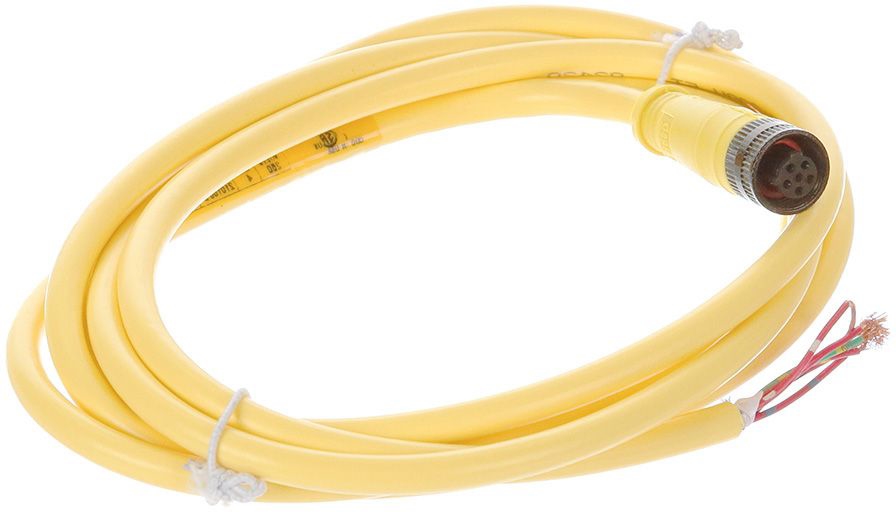

| Long Description | SINGLE ENDED CORDSET, FEMALE TYPE; DIE-CAST BLACK EPOXY COATED ZINC COUPLING NUT, GOLD OVER NICKEL PLATED CONTACT, MOLDED PVC BODY, NITRILE RUBBER O-RING, NYLON 6/6 CONNECTOR FACE MATERIAL; YELLOW COLOR; 12 FT; 22 AWG BRAIDED, PVC JACKET CABLE TYPE |
| MSDS Form Number | * |
| Material | Die-Cast Black Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Body, Nitrile Rubber O-ring, Nylon 6/6 Connector Face |
| Noun | * |
| Number Of Poles | 6 |
| Product Description | MIC 6P FP 12FT |
| Product Keywords | WEBREADY |
| Product Name | Circular connectors |
| ProductLine | WOOD |
| Type | Female |
| UNSPSC | 39121413 |
| UPC | 78678823743 |
| Vendor Name | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Vendor Number | 786788 |
| Vendor Short Name | WOOD |
| Voltage Rating | 250 VAC/VDC |
| Wire Code | 1-Red/White Trace 2-Red 3-Green (Ground) 4-Red/Yellow Trace 5-Red/Black Trace 6-Red/Blue Trace |
